Emech
®

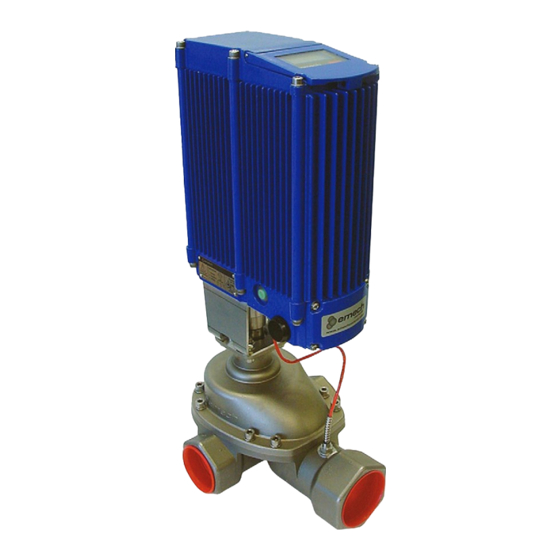

Digital Actuator - Model G1
Installation, Operation & Maintenance
Manual
Please read and save
these instructions
440-EN CPAC0002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Emech G1 and is the answer not in the manual?

Questions and answers

Related Manuals for Armstrong Emech G1

Summary of Contents for Armstrong Emech G1

  • Page 1 Emech ® Digital Actuator - Model G1 Installation, Operation & Maintenance Manual Please read and save these instructions 440-EN CPAC0002...

  • Page 2: Table Of Contents

    4.3 Standard G1 Current Loop Output Characteristic ................25, 26 Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)
  • Page 3 LEGAL DISCLAIMER ............................43 Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 4: Introduction

    More seriously, it may cause property damage, personal injury, production down-time and other losses. The customer should train its employees and contractors in the safe use of Armstrong products in relation to the customer’s specific application. If the customer does not understand a point in this manual, contact Armstrong or its authorized representative.

  • Page 5: Electronic Actuator - Model G1 - Datasheet

    1.0 Digital Actuator - Model G1 Datasheet G1 Actuator General Features Emech G1 actuators offer all the benefits of intelligen control. High performance Closed loop temperature control is achieved when combined with Emech 3 and 2 port disc valves and sensors.

  • Page 6: Parts And Materials

    (Item 16) are not included when ordering an Actuator only. They must be ordered separately. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 7: Dimensions

    Note: Actuator side of mounting kits are all F07. Other mounting kits are available on request. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 8: Technical Data

    4-20mA Current loop input Remote, or Locally by keypad entry Output Signal** 4-20mA Current loop output **The Emech G1 current loop transmitter and receiver are both isolated. Keypad (local control) 4 membrane switches; Set, Up, Down and Mode (dual touch safely feature - 2 switches must be pressed simultaneously)

  • Page 9: Technical Data

    (2) These components are supplied with every actuator. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 10: Performance

    Notes: The torques are at steady state speeds. No allowance has been made for load inertia. For high inertia loads contact Armstrong. Maximum allowable accelerations and decelerations are load dependent. Use the configuration software supplied with the G1 actuators to set the actuator torque, speed, and accelerations.

  • Page 11: Mechanical Installation

    Center Coupling Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 12: Assembly Of G1 Onto Other Valves

    2.2 Assembly of G1 onto Other Valves Please contact Armstrong for the assembly of the G1 onto other valves. A variety of standard mounting kits and custom mounting kits are available for mounting the Emech actuator onto other valves.

  • Page 13: Electrical Installation

    It is essential that you understand the information in this section to achieve a successful electrical installation. If in doubt, contact Armstrong or its authorized representative. The wiring of the actuator must be carried out by a qualified technician and according to the instructions described below.

  • Page 14: Wiring Instructions

    DAMAGE TO THE INSTALLED UNIT. Continued..Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 15: Power Supply Wire Specificatio

    ) should be used (see Figure 3.3 below). Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 16: Wiring Of Actuator Ma Loop Transmitter

    Continued..Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.
  • Page 17 Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 18: Temperature Sensor Connector

    The loose end of the cable can be wired to a binary switching device such as a flow switch, flow sens , level switch, manual switch or used with a PLC. Switching will enable various features of the Emech G1 actuator such as BIGAIN, STANDBY, HOLD, and INVERSE ACTUATOR OPERATION.
  • Page 19 Figure 3.10: StandBy and Hold control cycle. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 20: Serial Port Connector

    3.2.7 Serial Port Connector (Port-3) The Actuator comes with a RS232 to USB adapter serial port cable part# CPEL0091for modifying control options using the Emech Configuration, The EmechConfig can be found on the Armstrong Website. armstronginternational.com/emech Caution: The Serial Port is intended for diagnostics and configuration only and the length of cable for thi connection should not exceed a distance of 10 meters.

  • Page 21: Current Loop I/O

    Values outside this range on the loop input represent non-linear behaviors such as closed, cold only or hot only. Values outside the 5-19mA range on the loop output are used to signal error conditions. Contact Armstrong for customized configuration settings WARNING !! The voltage range required for the latest version actuators current loop input will vary from 3.5Vdc...
  • Page 22 Figure 4.1: Standard Loop Input for Temperature Controller Mode (see page 28). Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 23: Standard Configuration Of Current Loop Input For Positioner Mod

    Current input (mA) = (0.0609 x Position required ( °CCW)) + 5 Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)
  • Page 24 Figure 4.1: Standard Loop Input for Temperature Controller Mode (see page 28). Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 25: Standard G1 Current Loop Output Characteristic

    6.6 for error code definitions. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)
  • Page 26 Position Output (Deg.) = (16.429 x Current Output (mA)) - 82.142 Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 27: Emechconfig Configuration Software

    To start Armstrong EmechConfig, select it from the Start menu, or from the desktop shortcut. To establish a connection with the actuator, it is necessary to tell EmechConfig which COM port to use. This is selected from the COMS menu (shown in Figure 5.1).

  • Page 28: General Use

    5.2.2 General Use The Armstrong EmechConfig interface consists of several tabs containing a variety of controls. The most important for configuration of the actuator is the Device Manager tab. This section provides access to information about the actuator, and allows the user to modify some of the permanent settings.

  • Page 29: Changing Values

    WILL NOT BE PERMANENTLY SAVED! Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 30: Property Categories

    Figure 5.5: Selecting a temperature controller speed. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 31: Auxiliary Controller Values

    A negative value will invert the auxiliary signal. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 32: Selecting Standard Configuration Set

    Emech G13 Actuator with Emech 4” F8T valve with LRB port configuration Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 33: Keypad Operating Instructions

    Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 34: Controller Units Selection

    Local mode. Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 35: Changing Values (Set Point)

    E2 = temperature sensor fault (broken or not present) Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)

  • Page 36: Standard Operation Temperature Control

    – Temperature set-point via Keypad Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 37: Troubleshooting

    7.0 Troubleshooting The actuator is not intended to be serviced or repaired by the customer. Do not take the actuator apart. Return any actuator in need of service or repair to Armstrong’s authorized service representative. Problem Possible Cause(s) Corrective Action...

  • Page 38: Troubleshooting Guide

    7.1 Troubleshooting Guide Continued..Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.
  • Page 39 Continued..Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.
  • Page 40 Continued..Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.
  • Page 41 Armstrong International Designs, materials, weights and performance ratings are 221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA approximate and subject to change without notice. Visit Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673) armstronginternational.com/emech for up-to-date information.

  • Page 42: Important Notice

    Consequently, Armstrong is only able to provide general guidelines concerning the suitability and use of its products. It is not possible for Armstrong to provide specific guidelines for specific applications and operating environments simply because there are too many of them. Therefore, proper selection of a specific product for a specific application and operating environment, and it compatibility with other equipment to which it is attached, is the customer’s responsibility.

  • Page 43: Legal Disclaimer

    As a condition of enforcing any rights or remedies relating to Armstrong products, notice of any warranty or other claim relating to the products must be given in writing to Armstrong: (i) within 30 days of last day of the applicable warranty period, or (ii) within 30 days of the date of the manifestation of the condition or occurrence giving rise to the claim, whichever is earlier.
  • Page 44 Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information. Armstrong International North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com 440-EN Printed in U.S.A. - 8/15/2016 © 2016 Armstrong International, Inc.
