DSP Concepts STM32F4xx Discovery Board Users Guide
After a few seconds, the programming operation will complete.
Next, plug in the micro-USB connection to your PC and press the black reset button. The
board will appear as two new USB devices and driver installation should happen
automatically on Windows 7 and Windows 8. That is, the board uses default Windows
1
drivers and no special drivers need to be installed .

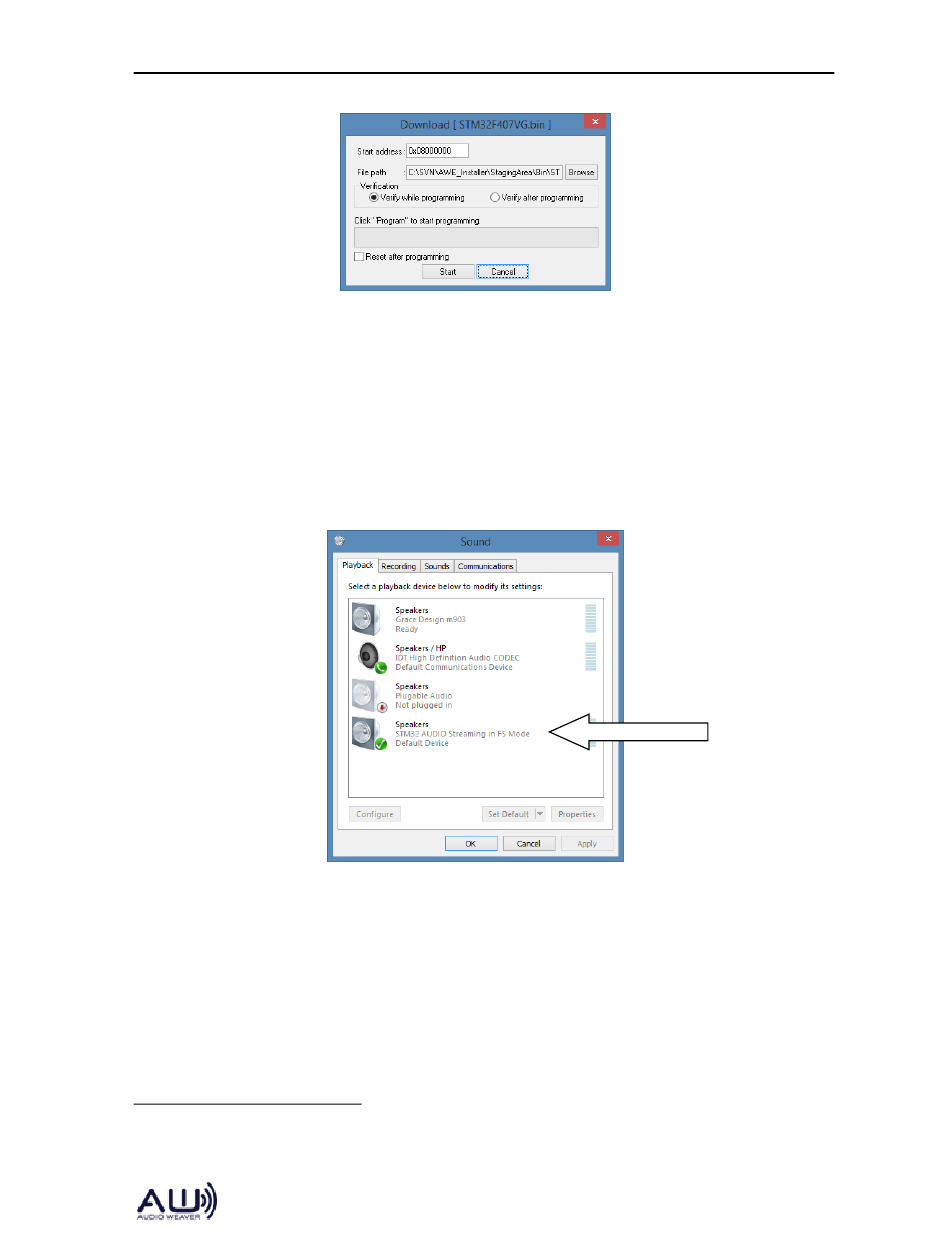

The board appears as a USB audio device. Select this under your Windows audio device
settings. On Windows 8, it appears as:
Plug in speakers to the output 3.5 mm audio jack and try playing audio from your PC.
You should hear audio being rendered by the STM32 Discovery board.

Connecting Audio Weaver to the Target

Launch Audio Weaver Designer application. Then from the Server Window (not from
the Designer window) select the menu item TargetChange Connection
1
Windows XP is currently not supported.
Page: 6 of 10
