5. Installation

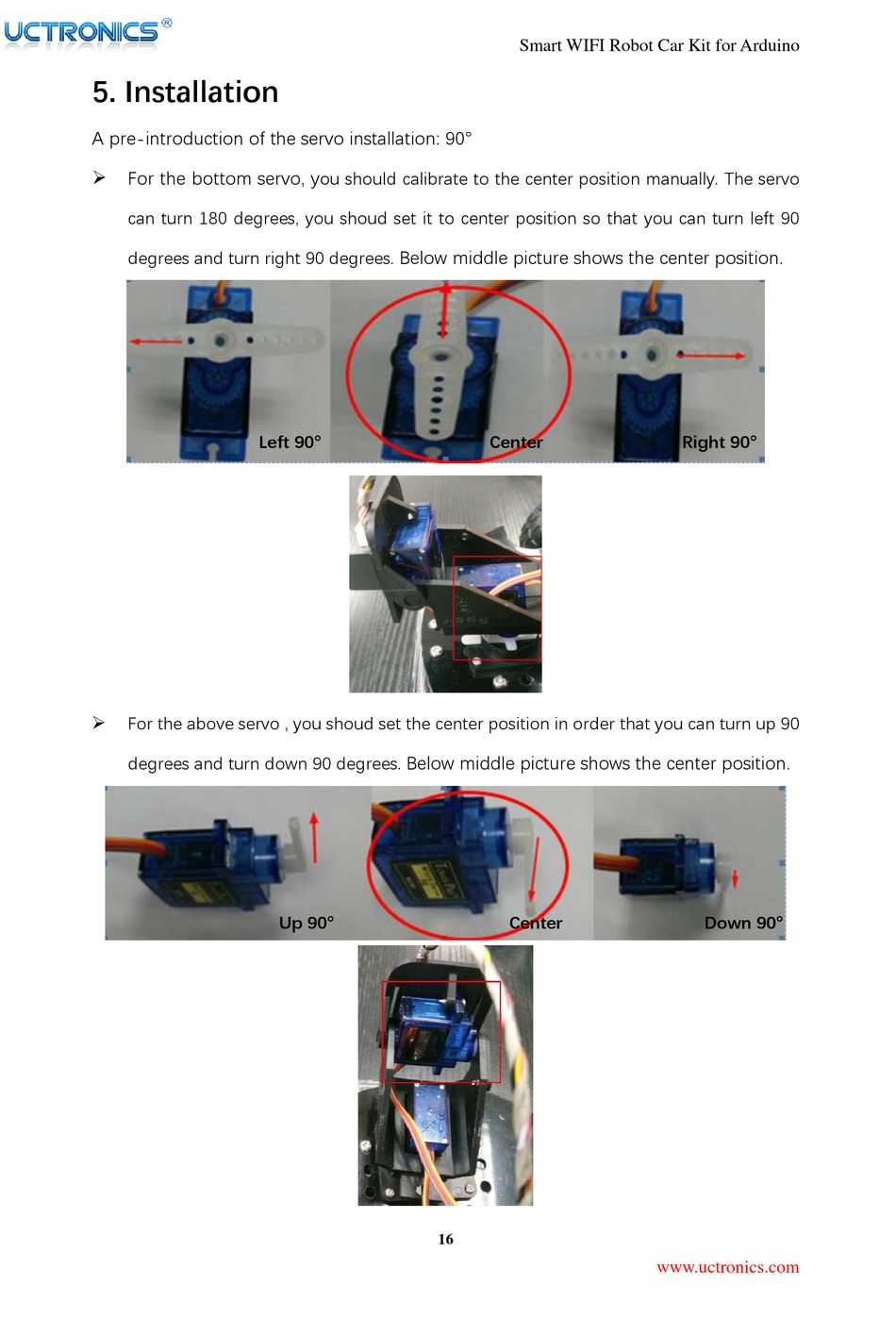

A pre-introduction of the servo installation: 90°

For the bottom servo, y ou should calibrate to the center position manually. The servo
can turn 180 degrees, you shoud set it to center position so that you can turn left 90
degrees and turn right 90 degrees. Below middle picture shows the center position.
Left 90 °

For the above servo , you shoud set the center position in order that you can turn up 90
degrees and turn down 90 degrees. Below middle picture shows the center position.
Up 90 °
16
Smart WIFI Robot Car Kit for Arduino
Center
Center
