Summary of Contents for Switchcraft 318BTS

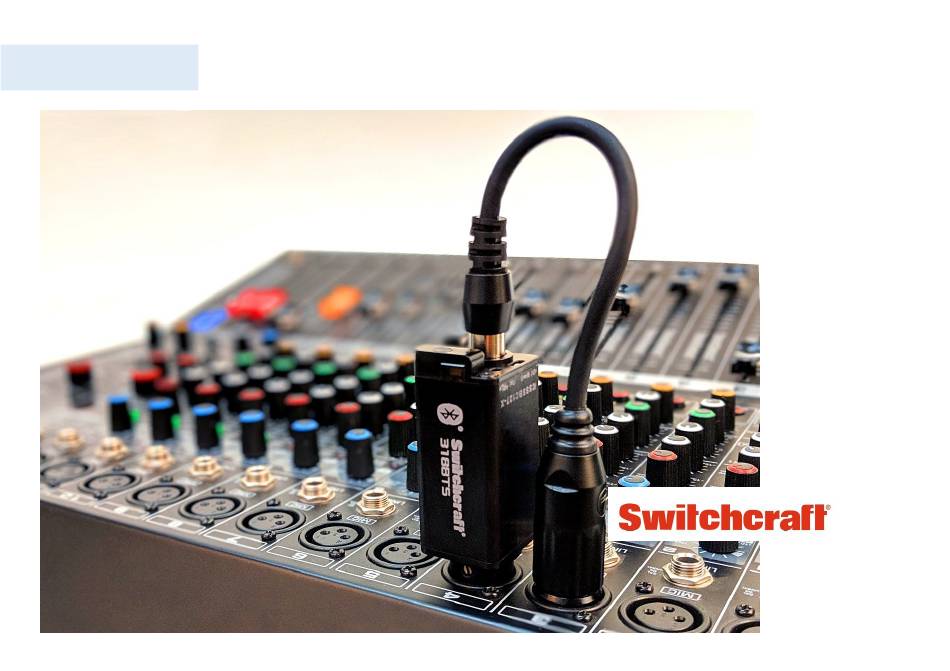

- Page 1 User Manual 318BTS Phantom Powered Bluetooth ® Stereo Audio Receiver...
-
Page 2: Table Of Contents
Contents Product brief Getting started Regular use Troubleshooting Specifications Canada- IC Warranty 318BTS Stereo Phantom Powered Bluetooth® Audio Receiver User Manual Rev 0A Page 2... -
Page 3: Product Brief
318BTS can output stereo or mono merged signal. With enhanced range, better sound and low latency, 318BTS is the best solution to connect your Bluetooth® enabled devices to any microphone input. Simply plug, power and connect, and enjoy high quality audio from any Bluetooth®... - Page 4 Product brief Right channel Antenna Red and Yellow LED Left channel Left channel cable Reset button Function switch USB connector (Bottom side) 318BTS Stereo Phantom Powered Bluetooth® Audio Receiver User Manual Rev 0A Page 4...
- Page 5 To skip the waiting period for the 318BTS to be paired, press the Reset button using a pen, yellow and red LED’s will blink, allowing 318BTS to pair with other devices.
-
Page 6: Getting Started
Red and Yellow LEDs will blink, this means the device is ready to be paired, turn on the Bluetooth connectivity on your device (Phone, PC, tablet ...etc.) and connect to the 318BTS with the name Switchcraft-XXXXX. Slide the function switch using a pen to select a mode as shown. -
Page 7: Regular Use
The 318BTS will find paired devices in the vicinity and connect to the strongest signal. In regular use; turn the Bluetooth® ON in your portable device, plug in the 318BTS, turn on the Phantom Power on your LEDs location mixer and the 318BTS will connect to your device automatically. - Page 8 Regular Use Audio configuration Two channel stereo Two channel mono merged Single channel mono merged 318BTS Stereo Phantom Powered Bluetooth® Audio Receiver User Manual Rev 0A Page 8...
-
Page 9: Troubleshooting
318BTS using the Reset button. Q: Why doesn’t the dongle work on Phantom Power while working well on USB power? A: The Phantom Power on your mixer has to be greater than 46.5V, using two channels... -
Page 10: Specifications
Size (without cable): 1.23” x 1.03” x 3.33” (3.15 x 2.62 x 8.45 cm) Weight (including the cable): 4.37 Oz (124 g) Operating temperature: -40°C to 85°C 318BTS Stereo Phantom Powered Bluetooth® Audio Receiver User Manual Rev 0A Page 10... -
Page 11: Canada- Ic
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante 318BTS Stereo Phantom Powered Bluetooth® Audio Receiver User Manual Rev 0A... -
Page 12: Warranty
Contact: 5555 N Elston Ave. Chicago, IL 60630 Phone: 773-792-2700 Fax: 773-792-2129 Email: sales@switchcraft.com Customer Service hours: 7:30am-4:00pm CST M-F 318BTS Stereo Phantom Powered Bluetooth® Audio Receiver User Manual Rev 0A Page 12...
