Related Manuals for Switchcraft 318BT
Summary of Contents for Switchcraft 318BT

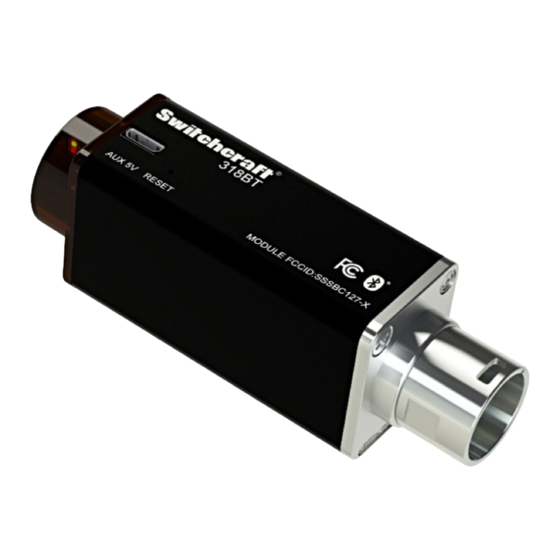

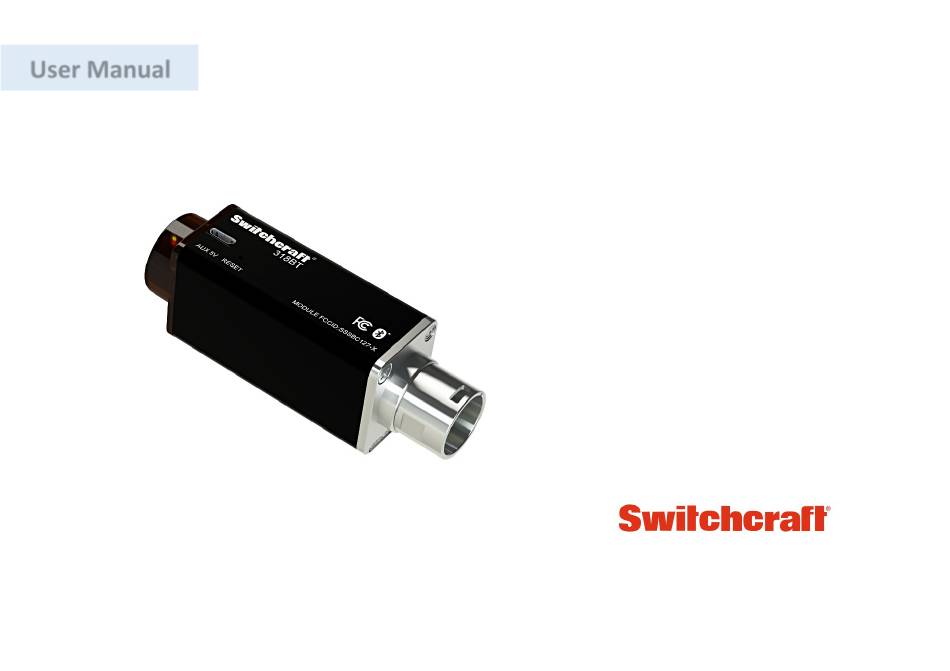

- Page 1 User Manual 318BT Phantom Powered Bluetooth ® Audio Receiver...
-
Page 2: Table Of Contents
Contents Product brief Getting started Regular use Troubleshooting Specifications FCC Compliance Canada- IC Warranty 318BT Phantom Powered Bluetooth® Audio Receiver User Manual Rev A Page 2... -
Page 3: Product Brief
100% of time without the worries of charging or maintaining power to the dongle. With enhanced range, better sound and low latency, 318BT is the best solution to connect your Bluetooth® enabled devices to any microphone input. -
Page 4: Getting Started
(MIC Level), but before connecting; it is a good practice to ensure the Phantom Power is turned OFF on the input jack where 318BT is to be connected. Inserting 318BT while the Phantom Power is ON may trigger a protection circuit that turns OFF the 318BT for 60 seconds, please see the troubleshooting section. - Page 5 PC, tablet ...etc.) and connect to the 318BT with the name Switchcraft 318BT. To skip the waiting period for the 318BT to be paired, press the Reset button using a paper clip, yellow and red LED’s will blink, allowing 318BT to pair with other devices.
-
Page 6: Regular Use
318BT will find paired devices in the vicinity and connect to the strongest signal. In regular use; plug in the 318BT, turn on the Phantom Power on your mixer and the 318BT will connect to your device automatically. A solid yellow LED will indicate that it is connected. -
Page 7: Troubleshooting
318BT using the Reset button. Q: Why doesn’t the dongle work on Phantom Power while working well on USB power? A: The Phantom Power on your mixer has to be greater than 46.5V. -
Page 8: Specifications
XLR connector LED indicators: Red and Yellow Size: 1.23” x 1.03” x 3.65” (3.15 x 2.62 x 9.25 cm) Weight: 2.7 Oz (76.5 g) Operating temperature: -40°C to 85°C 318BT Phantom Powered Bluetooth® Audio Receiver User Manual Rev A Page 8... -
Page 9: Fcc Compliance
The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 318BT Phantom Powered Bluetooth® Audio Receiver User Manual Rev A... -
Page 10: Canada- Ic
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante 318BT Phantom Powered Bluetooth® Audio Receiver User Manual Rev A Page 10... -
Page 11: Warranty
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Switchcraft® is under license. Warranty: 2 years from date of purchase Switchcraft will either repair or replace at their discretion. Contact: 5555 N Elston Ave. - Page 12 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Switchcraft 318BT...
