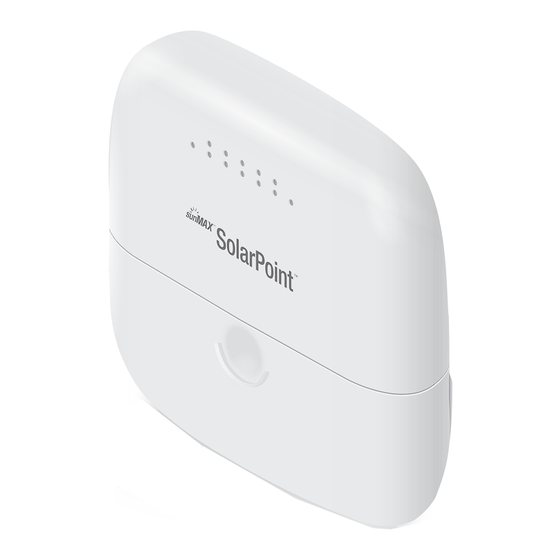

- Page 1 SolarPoint 4x PoE Smart MPPT Charger Model: SM-SP-40...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti® SolarPoint MPPT ™ Charger. This Quick Start Guide is designed to guide you through installation and includes the warranty terms. Package Contents SolarPoint H4 Connector Ferrules Metal Strap Removal Tool (Qty. 6) Wall Mount Kit... -
Page 3: Hardware Overview
Hardware Overview PV Panel Ethernet System Battery Ports Terminal Terminal Output PV Panel Reset Power Terminal Button Terminal Description Interface Steady on when system is powered on; System LED Red when battery polarity is reversed. Press and hold the Reset button for 10 seconds to restore factory default settings. -
Page 4: Hardware Installation
Hardware Installation Note: Prior to use, it is recommended to write down the factory default password for this device. The password can be found on the sticker located under the SolarPoint cover. Pole Mounting 1. Open the Metal Strap and feed it through the mounting slots on the back of the SolarPoint. -
Page 5: Wall Mounting
Wall Mounting 1. Attach the two wall mount brackets to the back of the SolarPoint. 2. Install the wall mount level securely to the wall. - Page 6 3. Align the wall mount brackets over the wall mount level and slide it down until it is secure.
- Page 7 Opening the Port Cover 1. Press down and slide the port cover forward. 2. Lift the port cover up.
- Page 8 3. Remove the four-pin connector from the battery terminal block. 4. Crimp a ferrule on one end of the wire. 5. Insert the crimped wire into the appropriate slot on the four-pin connector. Using a flathead screwdriver, secure the wire to the connector by tightening the screw until it stops.
- Page 9 6. Repeat steps four and five until the connector is fully occupied with all four wires. 7. Attach the NTC and battery cable using the four-pin connector. 8. Attach the PV panel cables.
-
Page 10: Connecting Ethernet
Connecting Ethernet 1. Connect Ethernet cable(s) to the Ethernet port(s). Note: PoE is disabled by default and can be enabled using the configuration interface. 2. When you are finished, close the port cover. -
Page 11: User Interface
If connected to the LAN via Ethernet, the SolarPoint will attempt to obtain an IP address automatically from a DHCP server. Use the Ubiquiti Device Discovery Tool to determine its IP address. If there is no DHCP server on the LAN, the SolarPoint will fall back to the following IP address: 192.168.1.20... -
Page 12: Enabling Poe
4. Click Set Device Location to set the location for your solar system installation. 5. Click Power on the Settings screen and fill out the battery and solar panel information. Enabling PoE To enable PoE on the SolarPoint: 1. Click Output on the Settings screen. 2. -
Page 13: Specifications
Specifications SM-SP-40 Dimensions 202 x 186 x 50 mm (7.95 x 7.32 x 1.97") Weight 650 g (1.43 lb) Enclosure Characteristics UV-Resistant Polycarbonate, Outdoor Use Max. Power Consumption Networking Interface (4) 10/100 Fast Ethernet Ports Management Interface Ethernet Wi-Fi (2.4 GHz) Button Reset LEDs... -
Page 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. - Page 15 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 16 IMPORTANT NOTE: Radiation Exposure Statement: • This equipment complies with radiation exposure limits set forth for an uncontrolled environment. • This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 17: Rohs/Weee Compliance Statement
RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. -
Page 18: Declaration Of Conformity
ЕС декларацията за съответствие може да се намери на следния интернет адрес: ui.com/compliance Hrvatski [Croatian] UBIQUITI ovim putem izjavljuje da je ovaj uređaj SM-SP-40 sukladan osnovnim zahtjevima i ostalim bitnim odredbama Direktiva 2014/53/EU, 2014/30/EU, 2014/35/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: ui.com/compliance... - Page 19 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: ui.com/compliance Íslenska [Icelandic] Hér, UBIQUITI, því yfir að þetta SM-SP-40 tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/53/ESB, 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: ui.com/compliance...
- Page 20 2014/53/UE, 2014/30/UE, 2014/35/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn ui.com/compliance Norsk [Norwegian] Herved UBIQUITI, erklærer at denne SM-SP-40 enheten, er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene 2014/53/EU, 2014/30/EU, 2014/35/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på...
- Page 21 ©2019 Ubiquiti Inc. All rights reserved. Ubiquiti, the Ubiquiti U logo, the Ubiquiti beam logo, sunMAX, SolarPoint, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
