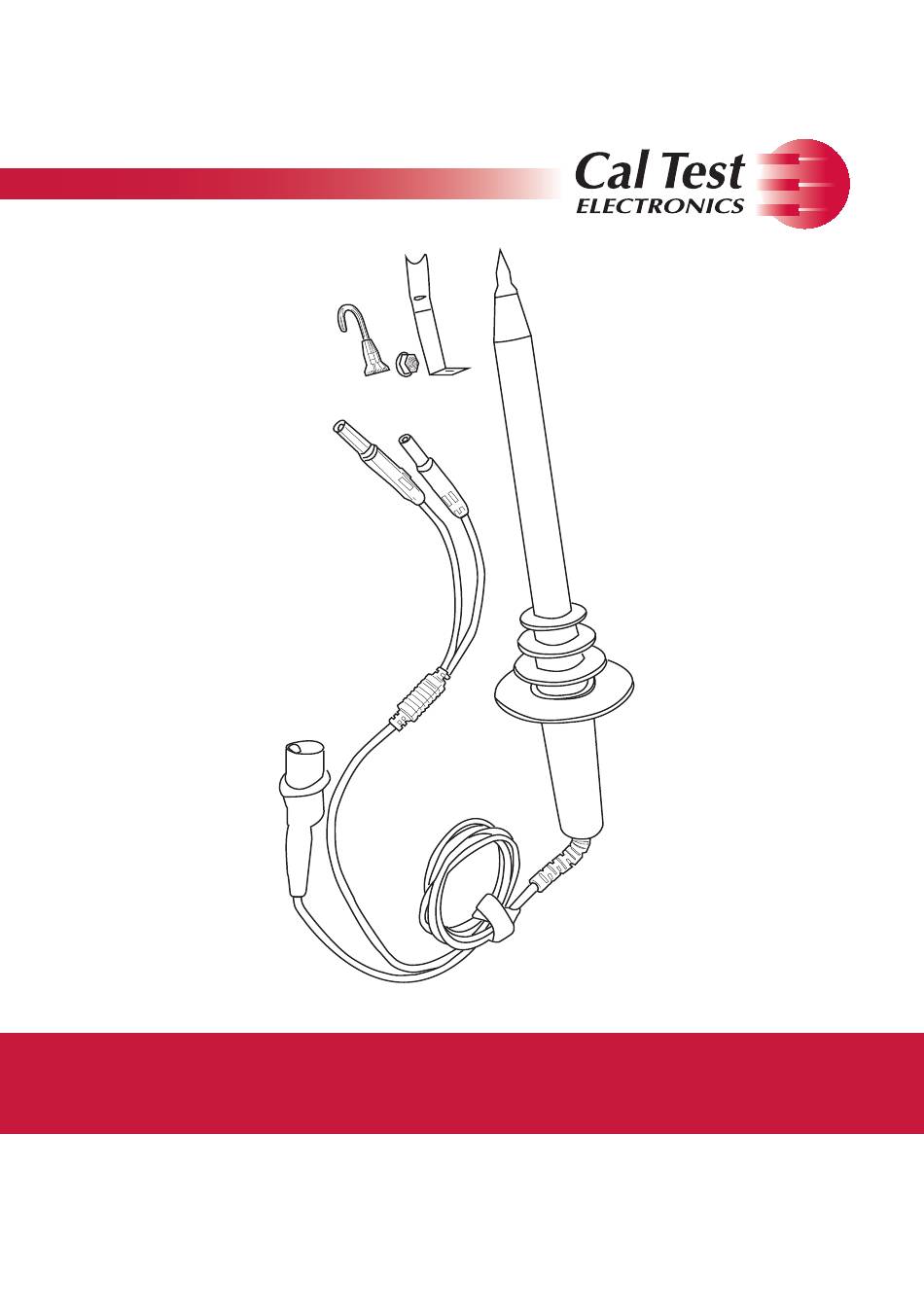

- Page 1 CT2700 User Manual...
-
Page 2: Safety Summary
Safety Summary To avoid personal injury and/or product damage, review and comply with the following safety precautions. These precautions apply to both operating and maintenance personnel and must be followed during all phases of operation, service, and repair of this probe. WARNING statement calls attention to an operating procedure, practice, or condition, which, if not followed correctly, could result in... - Page 3 inside the instrument may retain a charge even if the instrument is disconnected from its source of supply. Not for Critical Applications This probe is not authorized for use in contact with the human body or for use as a component in a life-support device or system. Do Not Substitute Parts Do not install substitute parts or perform any unauthorized modification to the instrument.
- Page 4 Connecting and Disconnecting from High Voltage Turn the high voltage source off before connecting or disconnecting the probe whenever possible. Keep the Probe Clean The probe body should be kept clean and free of any conductive contamination. Use Only in Offi ce-Type Indoor Setting The probe is designed to be used in offi ce-type indoor environments of Pollution Degree 2.
-
Page 5: Compliance Statements
Compliance Statements Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This product is subject to Directive 2012/19/EU of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE), and in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be... - Page 6 IEC Category Rating The IEC 61010 standard defines safety category ratings that specify the amount of electrical energy available and the voltage impulses that may occur on electrical conductors associated with these category ratings. The category rating is a Roman numeral of I, II, III, or IV. This rating is also accompanied by a maximum voltage of the circuit to be tested, which defines the voltage impulses expected and required insulation clearances.
-
Page 7: Product Overview
1 Introduction 1.1 Product Overview The Cal Test CT2700 is a 40 kV High Voltage divider probe for use with analog or digital multimeters. 1.2 Features Measures up to: 40 kV (DC+Peak AC) or 28 kVrms AC. Voltage dividing of 1000:1 Retractable sleeve 4 mm banana plugs 1.3 Initial Inspection... - Page 8 Select the voltage range. Do not use autoranging. Whenever possible, turn the high voltage source off before making any connections. Before turning on the high voltage source, be certain the operator is not touching the device under test. Turn on the high voltage source. You can now analyze the voltage on your multimeter.
-
Page 9: Electrical Specifications
4 Specifications All specifications apply to the unit after a temperature stabilization time of 15 minutes over an ambient temperature range of 25 °C ± 5 °C. Electrical Specifications Maximum Input Voltage (CAT I) 40 kV (DC+Peak AC) 28 kVrms AC Division Ratio 1000:1 Bandwidth... -
Page 10: Service And Warranty Information
Units returned to Cal Test Electronics that have been subject to abuse, misuse, damage or accident, or have been connected, installed or adjusted contrary to the instructions furnished by Cal Test Electronics, or that have been repaired by unauthorized persons, will not be covered by this warranty. - Page 11 caltestelectronics.com 800-572-1028...
- Page 12 450855-001 20170110 © 2016 Cal Test Electronics...
