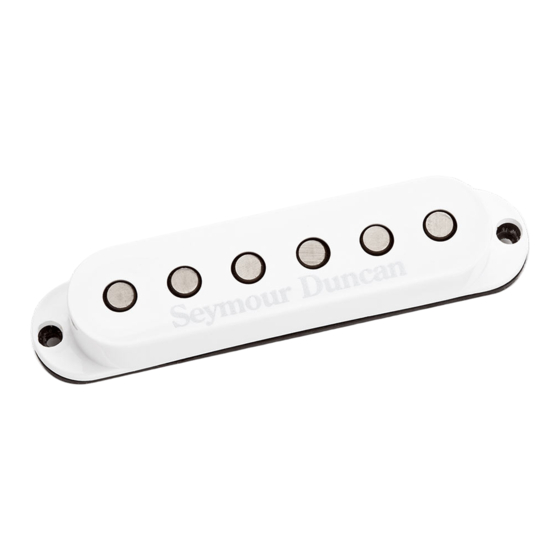

Duncan SSL-1 Quick Start Manual

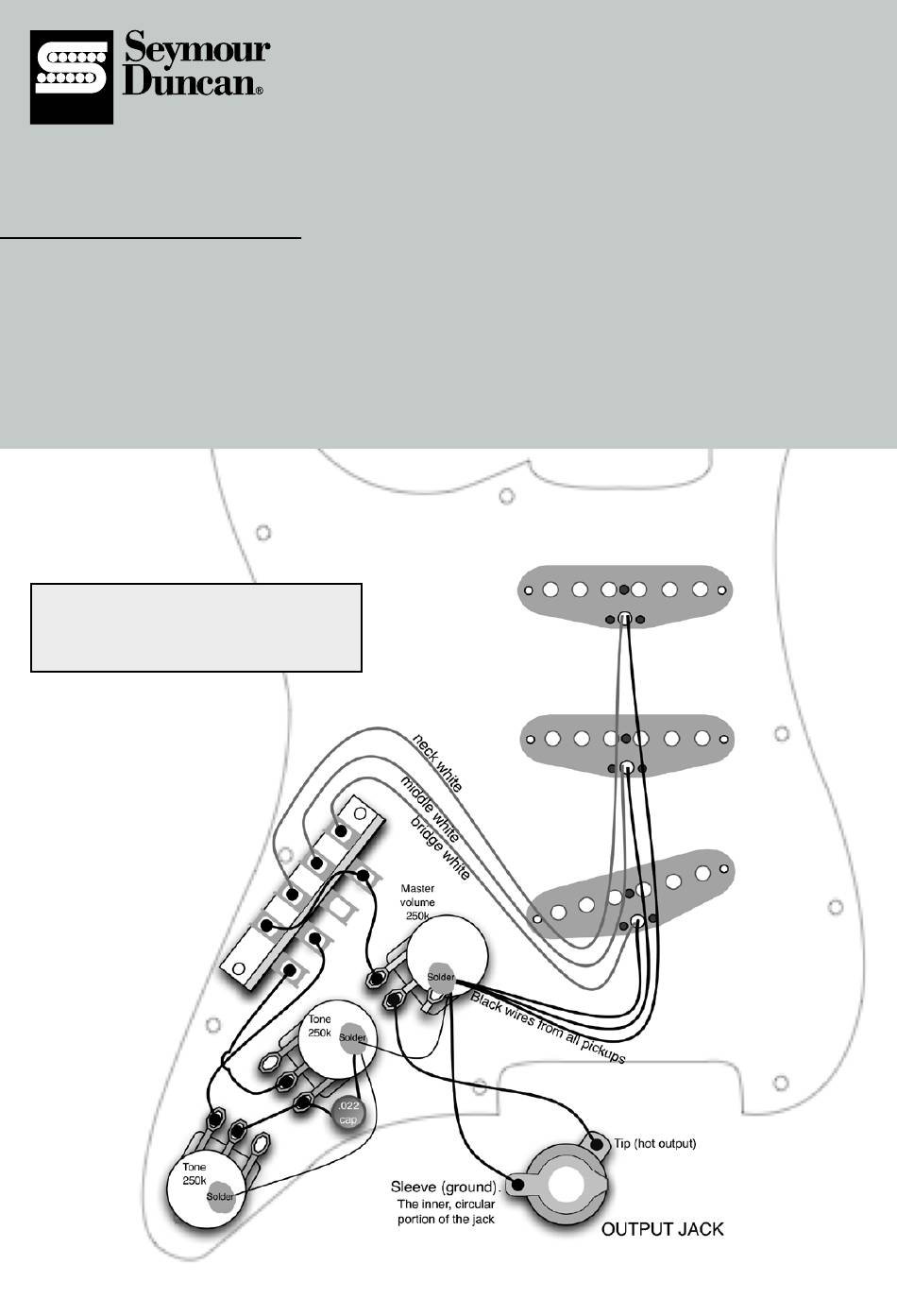

Wiring Diagram for
Pickup Models:
SSL-1, SSL-2, SSL-3, SSL-4, SSL-5,
SSL-6, SSL-7, APS-1, APS-2,
APST-1, SSL52-1
5427 hollister avenue, santa barbara, ca 93111
tel 805.964.9610 fax 805.964.9749
www.seymourduncan.com
Confused? Watch the free installation videos on
the Seymour Duncan website (under "Support").
You'll see how Seymour himself does it and
you'll learn lots of great tech tips.
5-Way Switch
Congratulations on your purchase of a fine, hand-built, Seymour Duncan electric guitar pickup! Installing
this pickup in your guitar isn't rocket science. And, if you're already handy with tools, it'll be a snap for
you–and fun too! But if you have no experience handling red-hot soldering irons, you'd be well advised
to take your new pickup and your trusty guitar to a qualified guitar tech.
The basic steps include:
1. Remove the old strings from your guitar.
2. Unscrew and remove the pickguard and carefully turn it over, taking care not
to scratch your guitar's finish.
3. De-solder the original pickup's wires and make sure to remember where they
were connected.
4. Remove the original pickup from the pickguard.
5. Put the Seymour Duncan pickup into the pickguard.
6. First tin and then solder the Seymour Duncan pickup wires in the same spot the
original pickup's wires were connected.
7. Put the pickguard back in place, taking care to tuck in loose wires.
8. Re-string your guitar and adjust the pickup height so that your new pickup
balances with the other pickups in the guitar. The bridge pickup should be
between 1/8" and 1/16" from the strings and the neck and middle pickups
should be adjusted to achieve the best balance with the bridge pickup.
Strat and Fender are registered trademarks of FMIC, with which Seymour Duncan is not affiliated.
