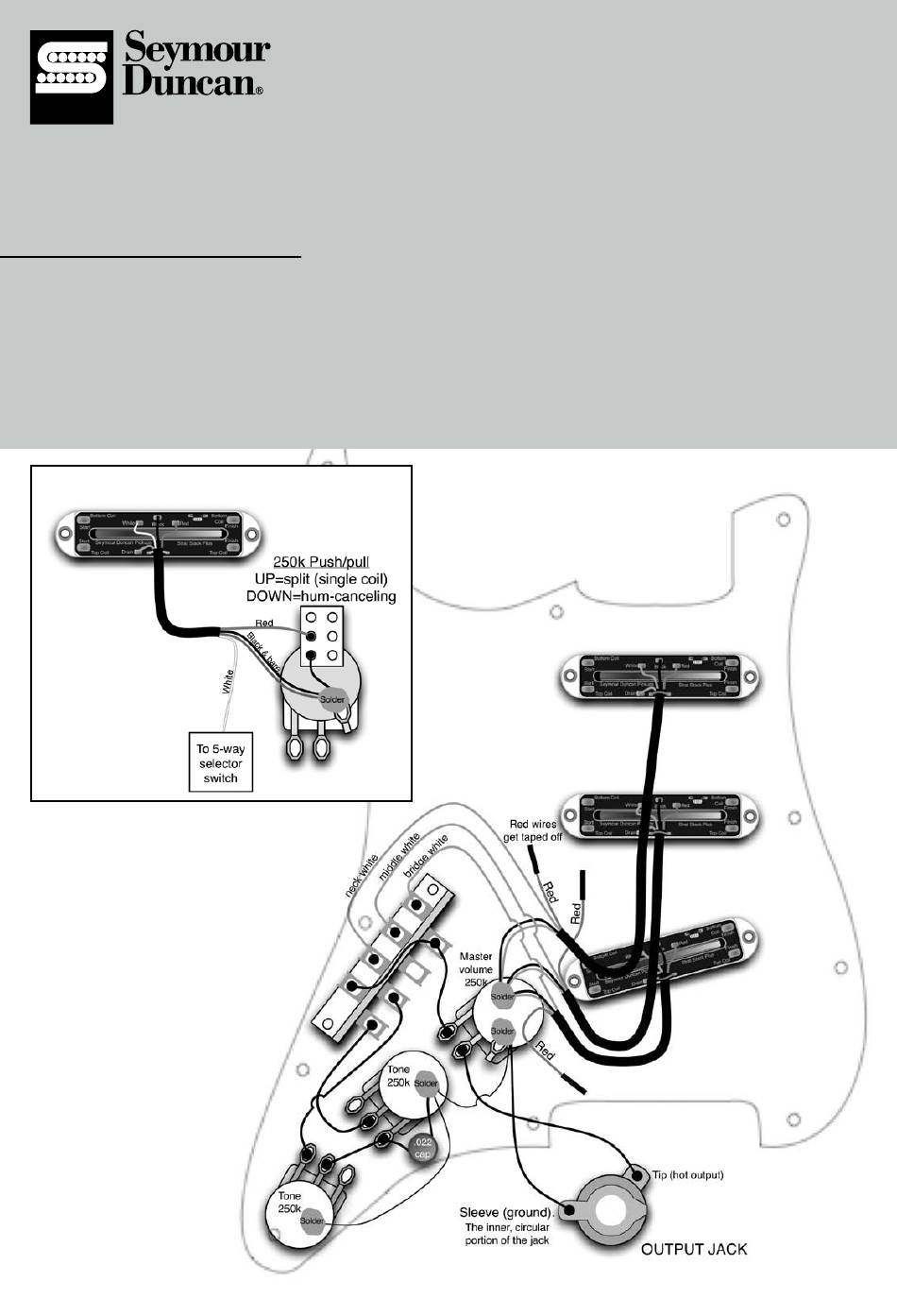

Duncan STK-S4 Classic Stack Plus Wiring Diagram

Wiring Diagram for
Pickup Models:
STK-S4 Classic Stack
for Strat ®
STK-S9 Hot Stack
for Strat ®
5427 hollister avenue, santa barbara, ca 93111
tel 805.964.9610 fax 805.964.9749
www.seymourduncan.com
Coil Splitting
Visit seymourduncan.com
for additional wiring diagrams.
Congratulations on your purchase of a fine, hand-built, Seymour Duncan electric guitar pickup! Installing this
pickup in your guitar isn't rocket science. And, if you're already handy with tools, it'll be a snap for you–and
fun too! But if you have no experience handling red-hot soldering irons, you'd be well advised to take your
new pickup and your trusty guitar to a qualified guitar tech.
The basic steps include:
1) Remove the old strings from your guitar.
2) Unscrew and remove the pickguard and carefully turn it over taking care not to
scratch your guitar's finish.
3) De-solder the original pickup's wires and make sure to remember where they were
connected.
4) Remove the original pickup from the pickguard.
® Plus
5) Put the Seymour Duncan pickup into the pickguard.
6) First tin and then solder the Seymour Duncan pickup wires in the same spot the
original pickup's wires were connected.
® Plus
7) Put the pickguard back in place, taking care to tuck in loose wires.
8) Re-string your guitar and adjust the pickup height so that your new pickup
balances with the other pickups in the guitar. The bridge pickup should be between
1/8" and 1/16" from the strings, when they are pressed down at the highest fret,
and the neck and middle pickups should be adjusted to achieve the best balance with
the bridge pickup.
Strat and Fender are registered trademarks of FMIC, with which Seymour Duncan is not affiliated.
