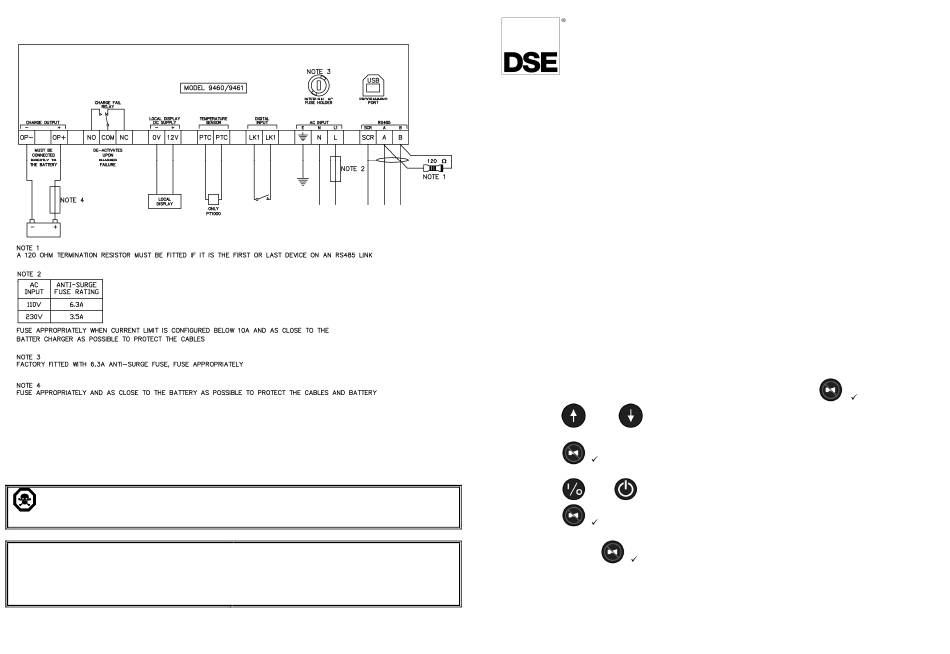

TYPICAL WIRING DIAGRAM
DANGER OF DEATH: LIVE PARTS exist within the enclosure. The enclosure cover must
not be removed when connected to an AC supply
Deep Sea Electronics Plc.
Tel:+44 (0)1723 890099
Fax: +44 (0)1723 893303
Email: support@deepseaplc.com
Web: www.deepseaplc.com
Deep Sea Electronics Inc.
Tel: +1 (815) 316 8706
Fax: +1 (815) 316 8708
Email: support@deepseausa.com
Web: www.deepseausa.com
D E E P S E A E L E C T R O N I C S
DSE9460 & DSE9461
INSTALLATION INSTRUCTIONS

INSTALLATION

The battery chargers are wall mounted via four holes on the back of the enclosure. Dimension and
mounting details are given overleaf.
The battery charger is fit-and-forget. It can be permanently connected to the supply and the load, with
no requirement to disable the charger during times of heavy load (such as engine cranking) or when in
parallel with a charging alternator.

BATTERY SUITABILITY

The battery charger is factory set by DSE to suit Lead Acid batteries but can be adjusted to suit other
battery types using the Configuration Suite PC Software.
Care must be taken to ensure the batteries connected to the charger are of the correct 'technology' to
suit the setting of the charger.

INDICATIONS

The Battery Charger features an LCD display and depending on the variant, additional voltage and
current meters may be fitted.

BOOST MODE

Boost mode is operated automatically or by activation of the digital input (if configured to perform this
function). This raises the battery charger voltage to the boost voltage setting

ACCESSING THE FRONT PANEL EDITOR

The Front Panel Editor (FPE) is accessed by pressing and holding the
Press the
(up) or
(down) button to cycle through the Adjustable Parameters listed
overleaf.
Press the
( ) button to edit a parameter when it is being viewed on the screen. The value
flashes to show edit mode is in progress.
Press the
(+) or
(-) button to change the parameter to the required value.
Press the
( ) button to save the currently selected value. The value ceases flashing to show
editing is complete.
Press and hold the
( ) button to exit the editor
053-147
ISSUE 4
.
( ) button.
