Deep Sea Electronics Plc DSE9 Series Installation Instructions

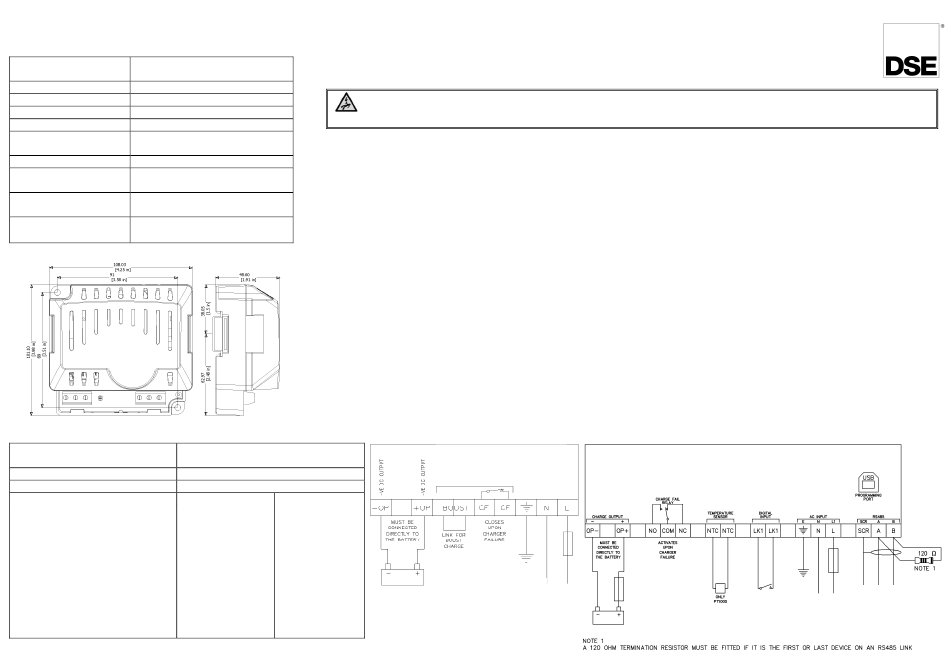

Dimensions and Mounting
DSE9150 12V 3A
Overall size 108mm x 101mm x 49mm
(4.25" x 3.98" x 1.91")
Weight 0.16kg
Mounting type DIN rail or chassis mounting
Din rail type EN 50022 35mm type only
Mounting holes Suitable for M4
Mounting hole centres 91mm x 89mm
(4.25" x 3.51")
Input voltage (nominal) 110V-240V
Input voltage (absolute 90V-250V
range)
Charge failure relay 3A DC resistive, 30V maximum
rating
Operating Temperature
-30°C to 55°C
(-22°F to 131°F)
Dimensions in mm unless stated
Connection type Screw terminal, rising clamp, no
internal spring
Min cable size 0.5mm² (AWG 20)
Max cable size 2.5mm² (AWG 14)
Recommended AC fuse 230V AC Input
DSE9130 12V 5A charger 1.0A anti-surge
DSE9140 12V 10A charger 2.0A anti-surge
DSE9150 12V 3A charger 1.0A anti-surge
DSE9155 30V 2A charger 1.0A anti-surge
DSE9250 24V 3.7A charger 1.0A anti-surge
DSE9255 24V 5A charger 2.0A anti-surge
DSE9260 24V 10A charger 3.5A anti-surge
DSE9470 MKII 24V 10A charger 3.5A anti-surge
DSE9472 MKII 24V 5A charger 2.0A antisurge
DSE9480 MKII 12V 10A charger 2.0A anti-surge
DSE9481 MKII 12V 5A charger 1.0A antisurge
053-049
ISSUE 13
DSE9xxx Battery Charger Installation Instructions
DANGER OF DEATH : LIVE PARTS exist within the DSE9xxx enclosures. The enclosure cover must not
be removed.
Installation
The DSE9xxx battery chargers are designed to be mounted within a control panel, on the panel DIN rail utilising the integral mounts
or on a chassis utilising the mounting holes. For dimension and mounting details, see overleaf.
The DSE9xxx battery chargers are fit-and-forget. It can be permanently connected to the supply and the load, with no requirement to
disable the charger during times of heavy load (such as engine cranking) or when in parallel with a charging alternator.
Battery suitability
The charger is factory set by DSE to suit Lead Acid batteries. The DSE91xx & DSE92xx battery chargers can be adjusted at the time
of ordering to suit other battery types. The DSE947x MKII & DSE948x MKII battery chargers are configured using the DSE
Configuraiton Suite to suit other battery types.
Care should be taken to ensure the batteries connected to the charger are of the correct 'technology' to suit the setting of the
charger.
Indications
The DSE9xxx Battery Chargers feature an LED indicator(s) to show the battery charger Status.
(Refer to DSE publication: 057-085 DSE9xxx Series Operator Manual for further information)
Boost Mode
(Not applicable to DSE9150 12V 2A or DSE9155 30V 2A)
(DSE947x & DSE948x MKII Series Only. Boost feature is controlled automatically, no external connection needed.)
Boost mode is operated by connecting the BOOST terminals together (for instance with an external switch or timer circuit. This will
raise the battery charger floating voltage by 0.8V DC.
Caution:- Boost mode is intended for equalisation of cells in lead acid batteries.
DSE 91xx & 92xx Series
110V AC Input
2.0A anti-surge
3.5A anti-surge
1.5A anti-surge
2.5A anti-surge
2.5A anti-surge
CF not available on
3.5A anti-surge DSE9150 12V 2A
6.3A anti-surge
Boost not available on
6.3A anti-surge
DSE9150 12V 3A
3.5A anti-surge
DSE9155 30V 2A
3.5A anti-surge
2.5A anti-surge
Typical Wiring Diagrams
Battery Chargers
D E E P S E A E L E C T R O N I C S
DSE 947x & 948x MKII Battery Chargers
