Audacy VSC1300 Installation Instructions

S E N S O R S & R E M O T E S W I T C H
I N S T A L L A T I O N I N S T R U C T I O N S
L S 1 4 0 0 S S 1 2 0 0
Audacy sensors and switches communicate wirelessly and are powered by a 25-year maintenance-free battery and therefore no wiring is required. Motion
Sensors are used for detecting occupancy/vacancy, Light Sensors are used for daylight harvesting and Remote Switches provide the flexibility to move the switch
around within the space being controlled.

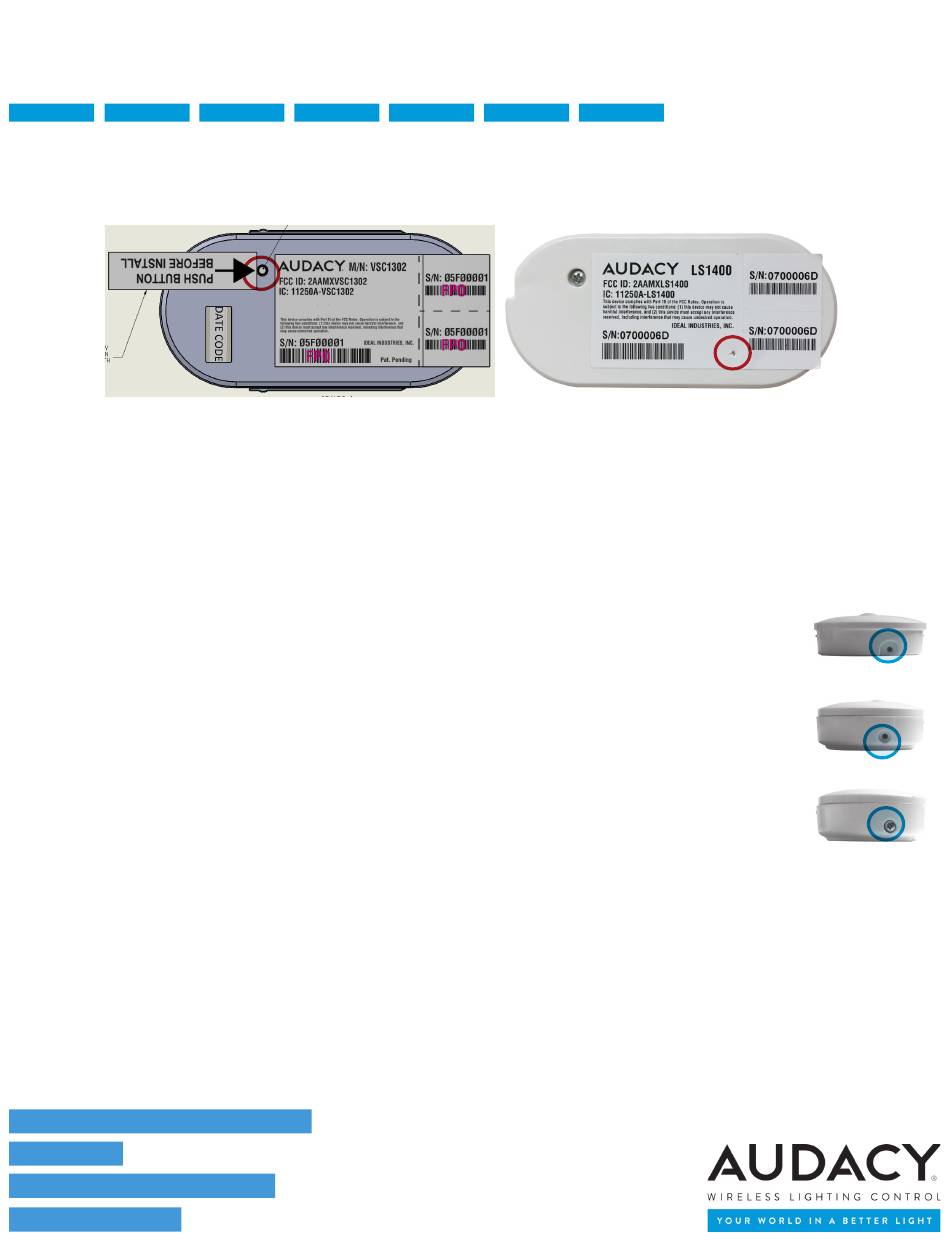

1. The sensor/switch must be activated by pressing a small button underneath the label on the back side of the sensor. The label may be covering the button.
• This can be accomplished by using a small/precision screwdriver, the screw that is included with the sensor, or similar object to push through the label and depress
the switch.
2. Remove one of the labels with the unique serial number and attach it to the Device Tracking Form included in the Appendix of the User Manual or a
Reflective Ceiling Plan to record the location of each device.
• If the tear away labels are missing, please write down the serial number of the device in a safe place.
• These serial numbers are required in order to have a complete Audacy operating system.
F O R M O T I O N S E N S O R S O N L Y ( V S W 1 3 0 0 , V S C 1 3 0 0 , V S C 1 3 0 1 , V S C 1 3 0 2 ,
H B S 1 3 0 2 )
1. Find a suitable location for the sensor based on the specifications shown on the layout if available, but please note that sensors will
need to be adjusted based on the space. For more specifics, refer to the sensor coverage patterns on the device data sheets and the
User Manual.
2. Mount the cradle in the desired location via screws, ceiling tile wire (included for ceiling-mount devices VSC1300, VSC1301,
VSC1302 and HBS1302) or double-sided tape.
3. Insert the sensor into the cradle.
• If desired, the sensor can be more securely fastened to the cradle by aligning the holes on the sensor and cradle and inserting the
screw provided through the cradle and into the sensor.
For optimal performance:
• Make sure the sensor has a line of sight to the occupant in the space.
• See device data sheets for recommended coverage patterns for each device.
Note: When the sensor hasn't detected motion for the time specified in "vacancy timeout" the lights will flash 60 seconds prior to turning
off as a warning.
* The SS1200 Remote Switch is an Extension Unit of the SCD1000EMUK Luminaire Controller.
