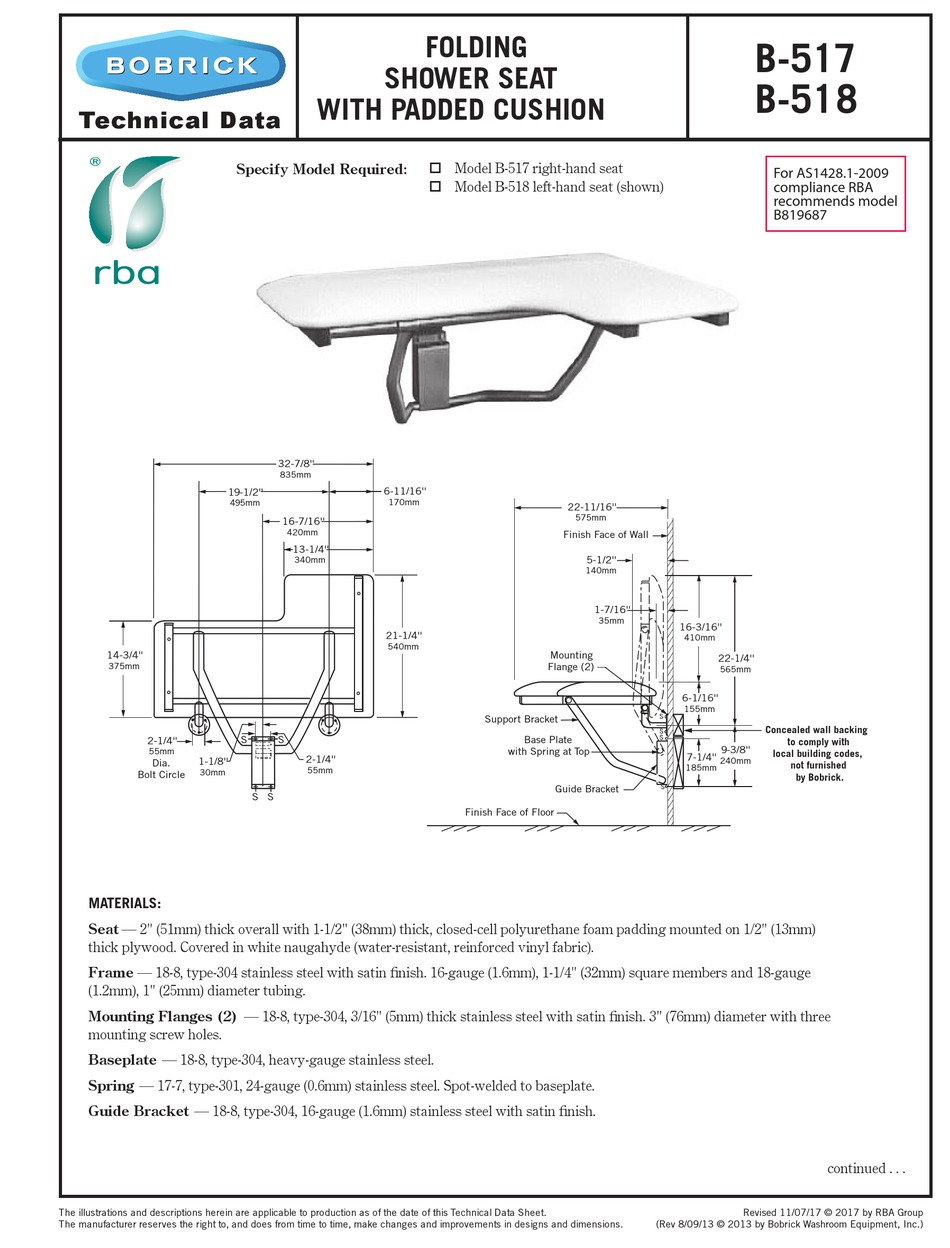

Bobrick B-517 Technical Data

Technical Data
Specify Model Required:
19-1/2''
495mm
14-3/4''
375mm
2-1/4''
55mm
1-1/8''
Dia.
30mm
Bolt Circle
MATERIALS:
Seat — 2" (51mm) thick overall with 1-1/2" (38mm) thick, closed-cell polyurethane foam padding mounted on 1/2" (13mm)
thick plywood. Covered in white naugahyde (water-resistant, reinforced vinyl fabric).
Frame — 18-8, type-304 stainless steel with satin fi nish. 16-gauge (1.6mm), 1-1/4" (32mm) square members and 18-gauge
(1.2mm), 1" (25mm) diameter tubing.
Mounting Flanges (2) — 18-8, type-304, 3/16" (5mm) thick stainless steel with satin fi nish. 3" (76mm) diameter with three
mounting screw holes.
Baseplate — 18-8, type-304, heavy-gauge stainless steel.
Spring — 17-7, type-301, 24-gauge (0.6mm) stainless steel. Spot-welded to baseplate.
Guide Bracket — 18-8, type-304, 16-gauge (1.6mm) stainless steel with satin fi nish.
