Zur Installation und zum Anschluß siehe die mitgelieferte Installations-/ Anschlußanleitung. Per l’installazione e i collegamenti, fare riferimento al manuale di istruzioni di installazione/collegamenti in dotazione. CDX-4100RDS CDX-5100RDS 1995 by Sony Corporation Sony CDX-4100/5100RDS (E,F,G,I) 3-810-809-11 (1) Actual total number: 3-810-809-11 (1)

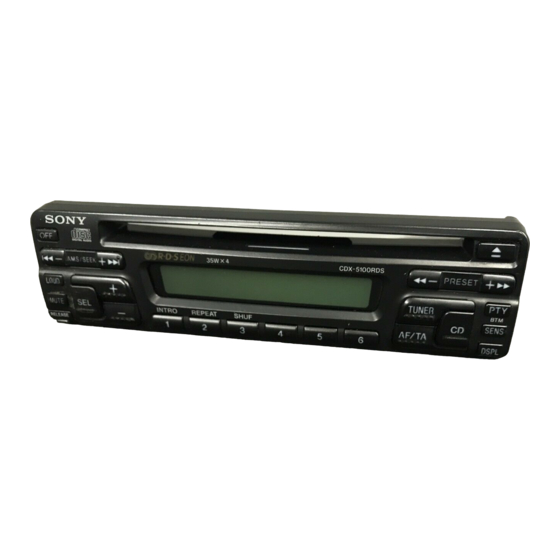

(page 13). Built-in power amplifier enables you to enjoy 4-speaker systems (max. output: 20 W 4 ch (for the CDX-4100RDS), 35 W 4 ch (for the CDX-5100RDS)). Line outputs for connecting an optional power amplifier. Supplied with the rotary commander (for the CDX-5100RDS).
(for the CDX-5100RDS) ... 13 Maintenance ... 14 Dismounting the Unit ... 14 Notes on Using the Optional Rotary Commander RM-X2S (for the CDX-4100RDS) ... 15 Location of Controls ... 16 Specifications ... 17 Troubleshooting Guide ... 18 Sony CDX-4100/5100RDS (...
2-speaker systems, set the fader control to the centre position. If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer. Notes on CDs A dirty or defective disc may cause sound dropouts during playback.
If the POWER SELECT switch on the bottom of the unit is set to the B position, the clock cannot be set unless the power is turned on. Set the clock after you have turned on the radio, or started CD playback. Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1)
“1”, and playback will continue from the first track of the CD. Note To play a 8 cm CD, use the optional Sony compact disc single adapter (CSA-8). To stop playback, eject the CD by pressing the press the button.
“MONO” appears on the display. The sound will improve, but it will be monaural. SENS By pressing the button, you can change the displayed items as follows: z LCL z MONO z Normal mode Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1) AMS/SEEK...
Therefore, 18 stations can be memorised on FM. If you try to store another station on the same preset number button, the previously stored station will be erased. Sony CDX-4100/5100RDS ( INTRO through INTRO ) for about...
RDS station is being received. Changing the displayed items Each time you press the button, the displayed items DSPL change as follows: z Frequency z Time z Station Name Continue to next page n Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1)
Middle of the Road M.O.R. M Light Classical LIGHT M Serious Classics CLASSICS Other Music Types OTHER M Not specified NONE (when the station does not specify the progmamme type) Continue to next page n Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1)
To cancel the CT function, press these buttons again. Notes The CT function may not work even though an RDS station is being received. The time set by the CT function may not be exact. Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1) REPEAT button.
When connecting an optional power amplifier to the LINE OUT, the beep tone is disabled. Changing the Illumination Colour (for the CDX-5100RDS) INTRO Press the button while pressing button. You can choose the colour between amber and green. Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1)
Do not apply too much force. Otherwise, the connectors may be damaged. Main unit Back of the front panel Actual total number: Dismounting the Unit Sony CDX-4100/5100RDS ( ,F,G,I) 3-810-809-11 (1) Release key (supplied)
Notes on Using the Optional Rotary Commander RM-X2S (for the CDX-4100RDS) This unit can be operated with the optional rotary commander (RM-X2S). You can turn on this unit by pressing the SOURCE button on the rotary commander. The Rotary Commander Labels Four button name labels are supplied with the rotary commander.
LW: 50 µV Power amplifier section Outputs Speaker outputs (sure seal connectors) Speaker impedance 4 – 8 ohms Maximum power output For the CDX-4100RDS 20 W 4 (at 4 ohms) For the CDX-5100RDS 35 W 4 (at 4 ohms) Actual total number:...
Memorise the correct frequency. The broadcast is too weak. The broadcast is too weak. n Use manual tuning. Tune in precisely. •The broadcast is too weak. n Press the button to enter the MONO mode. SENS Sony CDX-4100/5100RDS ( button. ,F,G,I) 3-810-809-11 (1)
Cause CD is dirty or inserted upside down. The CD player cannot be operated because of some problem. If the above-mentioned solutions do not help to improve the situation, consult your nearest Sony dealer. Actual total number: Solution Clean or insert the CD correctly.
(Clock Time - horloge) (pages 9, 10, 11, 12 et 13). Actual total number: Satellite de commande en option (CDX-4100RDS) Possibilité d’utiliser le satellite de commande (RM-X2S) manœuvrable comme la commande des essuie-glaces ou des phares pendant la conduite. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1)
Page 21
Changer la couleur d’illumination (CDX-5100RDS) ... 14 Entretien ... 14 Retrait de l'appareil ... 15 Remarques sur le satellite de commande en option RM-X2S (CDX-4100RDS) ... 15 Nomenclature des touches ... 16 Spécifications ... 17 Guide de dépannage ... 18 Sony CDX-4100/5100RDS (E...
Pour toute question ou problème au sujet de cet appareil, dont vous ne trouveriez pas l’explication dans ce mode d’emploi, consultez votre revendeur Sony. Remarques sur les CD Un disque sale ou défectueux peut provoquer des pertes de son à la lecture. Pour conserver une qualité...
Quand l’interrupteur POWER SELECT sous l’appareil est réglé sur la position B, vous ne pouvez pas régler l’horloge si l’appareil est éteint. Allumez la radio ou démarrez la lecture d’un CD avant de régler l’horloge. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) DSPL...
L’indication du numéro de plage revient sur “1” et la lecture reprend à partir de la première plage du CD. Remarque Pour écouter un disque de 8 cm, utilisez l'adaptateur Sony CSA-8 (non fourni). Pour arrêter la lecture, appuyez sur , le CD est éjecté.
L’accord se fera alors uniquement sur les stations dont le signal d’émission est suffisamment puissant. Le mode de recherche locale est uniquement opérant lorsque la fonction d’accord automatique est activée. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) AMS/SEEK Pour monter de fréquence...
3 n’est pas nécessaire. Mémorisation de stations particulières Choisissez la gamme d’ondes voulue. TUNER Accordez la station que vous voulez mémoriser sous un numéro de présélection. Sony CDX-4100/5100RDS (E pendant plus de deux SENS INTRO , puis de nouveau REPEAT à GI) 3-810-809-11(1)
RDS sont susceptibles de ne pas donner toute satisfaction. Si l’émetteur FM en cours de réception n’émet aucune donnée RDS, les fonctions décrites ci-après ne seront pas opérationnelles. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1)
AF, l’indication “PI seek” est affichée et l’appareil recherche une station avec les mêmes données PI. Si l’appareil ne trouve pas d’autre station avec les mêmes données PI, il revient à la station originale. Sony CDX-4100/5100RDS (E 96,0 MHz 102,5 MHz AF/TA...
Lorsque les indications “TA” et “EON” sont toutes deux affichées, cela signifie qu’outre la station dont le tuner diffuse les informations, un autre émetteur est également en train de diffuser un message relatif à la circulation routière. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) AF/TA pour...
Si le tuner n’arrive pas à trouver une station diffusant le type d’émission souhaité, l’indication “NO DATA” s’affichera pendant cinq secondes et le tuner reviendra à la station (émission) précédente. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) en cours de...
Le son est coupé immédiatement. Pour le rétablir, appuyez à nouveau sur la touche. Cette fonction est également annulée lorsque: — vous appuyez sur — vous commandez l’éjection du disque avec la touche 6 pendant la lecture. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) ou OFF.
RELEASE et nettoyez-la à l’aide d’un Coton- tige imbibé d’alcool. N’exercez pas une pression trop importante, car vous risqueriez sinon d’endommager le connecteur. Appareil principal Dos de la façade Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1)
Dans le cas où vous raccordez cet appareil, apposez l’étiquette portant l’inscription “DSPL”. DS PL MO DE SE L Apposez l’étiquette correspondant à la position de montage du satellite de commande. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) SE L MO DE DS PL...
0!¡ !¶ Touche CD (lecture disque) 6 !• Touche DSPL (changement d’affichage/ réglage de l’horloge) 5!º !ª Touche SENS/BTM (réglage de la sensibilité/mémorisation du meilleur accord) 78 Sony CDX-4100/5100RDS (E PRESET TUNER SENS AF/TA DSPL INTRO INTRO (balayage des REPEAT REPEAT (lecture répétée)
Satellite de commande RM-X2S Cordon à fiches RCA RC-63 (1 m), RC-64 (2 m), RC-65 (5 m) Chiffon de nettoyage XP-CD1 Adaptateur pour disques single CSA-8 Conception et spécifications modifiables sans préavis. Sony CDX-4100/5100RDS (E GI) 3-810-809-11(1) 50 154 mm...
Mémorisez la fréquence correcte. L’émission est trop faible. Le signal d’émission est trop faible. n Utilisez la syntonisation manuelle. Accordez la station avec plus de précision. L’émission est trop faible; n appuyez sur MONO. Sony CDX-4100/5100RDS (E pour passer en SENS GI) 3-810-809-11(1)
Page 37
Le CD est souillé ou a été inséré à l’envers. Le lecteur CD ne fonctionne pas à cause d’un problème quelconque. Si les solutions ci-dessus ne vous aident pas à résoudre le problème, consultez votre revendeur Sony. Actual total number: Solution Nettoyez ou insérez le CD correctement.
Page 38
Zwei Beleuchtungsfarben (bernstein und grün) wählbar (beim CDX-5100RDS) (Seite 14). Eingebauter Endverstärker für 4- Lautsprecher-Systeme (max. Ausgangsleistung 20 W 4 (beim CDX-4100RDS), 35 W 4 (beim CDX-5100RDS). Line-Ausgänge zum Anschluß eines getrennt erhältlichen Endverstärkers. Eine Drehschalter-Fembedienung ist beim CDX-5100RDS im Lieferumfang inbegriffen. CD-Spieler 1-Bit-DAC (Digital-Analog-Konverter) für...
Page 39
CDX-5100RDS) ... 14 Wartung ... 14 Herausnehmen der Einheit ... 15 Hinweise zum Gebrauch des zusätzlich erhältlichen Joystick RM-X2S (beim CDX-4100RDS) ... 15 Lage und Funktion der Bedienelemente ... 16 Technische Daten ... 17 Behebung von Störungen ... 18 Sony CDX-4100/5100RDS (EF...
Regler in die mittlere Position. Wenn Sie Fragen haben oder an Ihrem Gerät Probleme auftreten, die in dieser Bedienungsanleitung nicht behandelt werden, wenden Sie sich bitte an Ihren Sony-Händler. Hinweise zur CDs Bei verschmutzter oder beschädigter CD kann es während der Wiedergabe zu Tonaussetzern kommen.
Geräteunterseite auf B gestellt ist, kann die Uhrzeit nur bei eingeschaltetem Gerät eingestellt werden. Schalten Sie also das Radio ein bzw. starten Sie die CD- Wiedergabe, wenn Sie die Uhr einstellen möchten. Sony CDX-4100/5100RDS (EF , während das DSPL länger als...
Es wird wieder die Titelnummer „1“ angezeigt, und die Wiedergabe beginnt am ersten Titel der CD. Hinweis Zur Wiedergabe einer 8-cm-CD wird der Sony-Adapter CSA-8 (nicht mitgeliefert) benötigt. Stoppen der Wiedergabe Werfen Sie die CD durch Drücken der Taste aus, oder drücken Sie die Taste Die Wiedergabe stoppt auch dann, wenn Sie eine andere Signalquelle wählen...
Suchmodus), drücken Sie kurz die Taste Anzeige „LCL“ erscheint. Nur Sender mit relativ starken Signalen können eingestellt werden. Der lokale Suchmodus funktioniert nur, wenn der automatische Sendersuchlauf aktiv ist. Sony CDX-4100/5100RDS (EF AMS/SEEK Höhere Frequenzen . Die SENS I) 3-810-809-11(1)
Gerät nur Sender, die keine RDS-Daten ausstrahlen. Je nach Empfangsbedingungen kann es allerdings vorkommen, daß RDS-Sender gespeichert werden. Wenn Sie ausschließlich RDS-Sender abspeichern (siehe Seite 10), ist Schritt 3 nicht erforderlich. Sony CDX-4100/5100RDS (EF länger als SENS INTRO , bis ein Signalton zu REPEAT aus.
Die Frequenz wechselt automatisch 98,5 MHz Sender 102,5 MHz Wählen Sie einen UKW-Sender aus. Drücken Sie die Taste angezeigt. Sony CDX-4100/5100RDS (EF wecheln die Anzeigen im z Sendername 96,0 MHz AF/TA . „AF“ wird I) 3-810-809-11(1)
Display angezeigt. Das Gerät beginnt, nach einem Verkehrsfunksender zu suchen. Beginnt eine Verkehrsdurchsage, stoppt die Wiedergabe von CD, und die Verkehrsdurchsage ist zu hören. Fortsetzung siehe nächste Seite n Sony CDX-4100/5100RDS (EF . „TA“ . n „TA“ wird I) 3-810-809-11(1)
„ - - - - - - - -“ im Display. In diesem Fall können Sie mit der Taste PTY „NEWS“ oder einen anderen Programmtyp auswählen. Drücken Sie die Taste innerhalb von fünf Sekunden nochmals. Die Programmtypen werden in der oben aufgelisteten Reihenfolge angezeigt. Sony CDX-4100/5100RDS (EF Display-Anzeige NEWS AFFAIRS INFO SPORT EDUCATE...
Sie die Taste nochmals. Die Funktion wird auch deaktiviert, wenn: — die Taste oder OFF gedrückt wird, — durch Drücken der Taste 6 während der Wiedergabe eine CD ausgeworfen wird. Sony CDX-4100/5100RDS (EF wiederholt oder ein. . n „LOUD“ LOUD MUTE .
Um dies zu vermeíden, lösen Sie mit der Taste RELEASE die Frontplatte. Dann nehmen Sie sie ab, und reinigen Sie sie mit einem mit Alkohol getränkten Wattestäbchen. Drücken Sie dabei nicht zu fest. Andernfalls beschädigt werden. Sony CDX-4100/5100RDS (EF am Gerät Rückseite der Frontabdeckung I) 3-810-809-11(1)
Löseschlüssel (mitgeliefert) Actual total number: Hinweise zum Gebrauch des zusätzlich erhältlichen Joystick RM-X2S (beim CDX-4100RDS) Dieses Gerät können Sie auch mit dem zusätzlich erhältlichen Joystick RM-X2S bedienen. Sie können dieses Gerät einschalten, indem Sie die Taste SOURCE am Joystick drücken.
Das Sendesignal wird zu schwach empfangen. n Speichern Sie den Sender manuell ab. Stellen Sie den Sender exakt ein. Das Sendesignal wird zu schwach empfangen. n Drücken Sie die Taste , um in den MONO-Modus zu wechseln. SENS Sony CDX-4100/5100RDS (EF ein. I) 3-810-809-11(1)
Page 55
Der CD-Spieler kann wegen einer Störung nicht bedient werden. Wenn Sie das Problem mit den oben genannten Abhilfemaßnahmen nicht lösen können, wenden Sie sich bitte an Ihren Sony-Händler. Actual total number: Abhilfe Reinigen Sie die CD, oder legen Sie sie richtig herum ein.
Amplificatore di potenza incorporato che consente di impiegare un sistema a 4 altoparlanti (uscita massima: 20 W (per il modello CDX-4100RDS), 35 W canali (per il modello CDX-5100RDS)). Uscite in linea per il collegamento ad un amplificatore di potenza opzionale.
Page 57
(per il modello CDX-5100RDS) ... 14 Manutenzione ... 14 Rimozione dell’apparecchio ... 15 Osservazioni sull’utilizzo del comando rotatorio opzionale RM-X2S (per il modello CDX-4100RDS) ... 15 Posizione dei tasti ... 16 Caratteristiche tecniche ... 17 Guida alla soluzione di problemi ... 18 Sony CDX-4100/5100RDS (EFG...
OFF. Quindi premere il tasto RELEASE per aprire il pannello anteriore ed estrarlo tirandolo verso di sè come illustrato. Tasto OFF Tasto RELEASE Fare attenzione a non far cadere il pannello quando lo si stacca dall’apparecchio. Sony CDX-4100/5100RDS (EFG ) 3-810-809-11(1)
Se l’interruttore POWER SELECT in fondo dell’apparecchio è regolato sulla posizione B e l’apparecchio è acceso, non è possibile regolare l’orologio. Regolare l’orologio dopo aver acceso la radio o dopo aver iniziato la riproduzione CD. Sony CDX-4100/5100RDS (EFG DSPL ) 3-810-809-11(1)
L’indicazione di numero di brano ritorna a “1” e la riproduzione ricomincia dal primo brano del CD. Nota Per riprodurre un CD da 8 cm, usare l’adattatore Sony CSA-8 (non in dotazione). Per interrompere la riproduzione, espellere il CD premendo il tasto...
“LCL”. Solo le stazioni con segnale relativamente forte possono essere sintonizzate. Il modo di ricerca locale è attivabile solo durante la sintonizzazione automatica. Sony CDX-4100/5100RDS (EFG AMS/SEEK Per frequenze superiori SENS...
10), non é necessario eseguire tale operazione. Memorizzazione delle sole stazioni desiderate Selezionare la banda desiderata. TUNER Sintonizzare l’apparecchio sulla stazione che si desidera memorizzare nel tasto di preselezione. Sony CDX-4100/5100RDS (EFG per più di due SENS INTRO , quindi premerlo una REPEAT ) 3-810-809-11(1)
RDS, sul display apparirà il relativo nome. Quando, oltre alla normale indicazione della frequenza, appare il simbolo “*”, significa che si sta ricevendo una stazione RDS. Continua alla pagina sequente n Sony CDX-4100/5100RDS (EFG ) 3-810-809-11(1)
AF e premere il pulsante SENS/BTM per due secondi. Quando è visualizzata l’indicazione “AF OFF” e si attiva BTM, l’apparecchio memorizza solo le stazioni che non trasmettono dati RDS. Sony CDX-4100/5100RDS (EFG AF/TA , quindi il tasto AF/TA per più...
AF o TA. Quando viene ricevuto un notiziario di emergenza, la riproduzione del CD viene interrotta e l’apparecchio passa direttamente alla banda FM per ricevere il notiziario di emergenza. Sony CDX-4100/5100RDS (EFG ) 3-810-809-11(1)
Se non viene ricevuto nessun programma del tipo scelto, sul display verrà visualizzata per cinque secondi l’indicazione “NO DATA” e l’apparecchio si sintonizzerà sulla stazione (programma) precedentemente selezionata. Sony CDX-4100/5100RDS (EFG ) 3-810-809-11(1)
Talc funzione vicne disattivata anche quando: — si preme il tasto — si espelle un CD premendo il tasto 6 durante la riproduzione. Sony CDX-4100/5100RDS (EFG o il tasto . n Sul display . n L’indicazione o il tasto OFF.
RELEASE, toglierlo e pulire i connettori con un bastoncino di cotone imbevuto d’alcol. Non premere con forza per evitare di danneggiare il connettore. Apparecchio principale Retro del pannello anteriore Sony CDX-4100/5100RDS (EFG ) 3-810-809-11(1)
(in dotazione) Actual total number: Osservazioni sull’utilizzo del comando rotatorio opzionale RM-X2S (per il modello CDX-4100RDS) L’apparecchio può funzionare con il comando rotatorio opzionale (RM-X2S). È possibile accendere l’apparecchio premendo il tasto SOURCE sul comando rotatorio. Etichette del comando rotatorio Assieme a tale comando vengono fornite quattro etichette.
Accessori opzionali Comando rotatorio RM-X2S Cavo a piedini RCA RC-63 (1 m), RC-64 (2 m), RC-65 (5 m) Panno XP-CD1 Adattatore CSA-8 Disegno e caratteristiche tecniche soggetti a modifiche senza preavviso. Sony CDX-4100/5100RDS (EFG 177 mm 154 mm ) 3-810-809-11(1)
Memorizzare la frequenza corretta. La trasmissione è troppo debole. La trasmissione è troppo debole. n Usare la sintonia manuale. Sintonizzare con precisione. La trasmissione è troppo debole. n Premere il tasto attivare il modo di ricezione monoaurale. Sony CDX-4100/5100RDS (EFG SENS ) 3-810-809-11(1)
Il CD è sporco o è stato inserito capovolto. Il lettore CD non può essere usato a causa di qualche problema. Se la situazione non migliora con i rimedi suggeriti qui sopra, rivolgersi ad un rivenditore Sony. Actual total number: Soluzione Pulire o inserire il CD correttamente.
Page 74
Sony Corporation Printed in Thailand Sony CDX-4100/5100RDS (E,F,G,I) 3-810-809-11 (1) Actual total number:...
