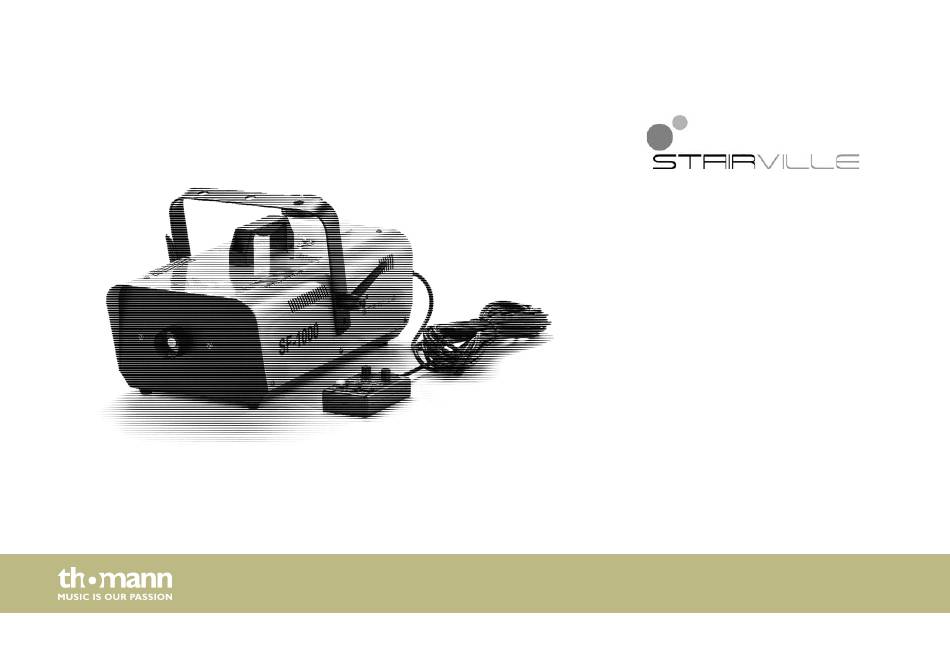

  • Page 1 SF-1000 fog machine user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.08.2015, ID: 182292...

  • Page 3: Table Of Contents

    1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 15 Installation..............................16 Connections and operating elements................... 17 Operation..............................24 Technical specifications........................27 Troubleshooting............................28 Cleaning............................... 29 Protecting the environment......................31 SF-1000...

  • Page 4: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the Service customer service will gladly assist you. SF-1000...

  • Page 6: Notational Conventions

    General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. SF-1000...
  • Page 8 General notes Warning signs Type of danger Warning – flammable substances. Warning – hot surface. Warning – suspended load. Warning – harmful or irritating substances. Warning – danger zone. fog machine...

  • Page 9: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. SF-1000...
  • Page 10 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
  • Page 11 The distance of persons and objects to the fog nozzle must be at least fifty centi‐ metre (1.6 feet). Do not touch the fog nozzle during and shortly after operation. It becomes very hot and may cause burns even several hours after switching off the device. SF-1000...
  • Page 12 Safety instructions WARNING! Risk of slipping caused by condensation Fog machines can produce condensation. Do not direct the fog to floors. Floors and surfaces can become slippery by condensed fog. Check at regular intervals whether it is possible to walk on the floors without a slipping hazard, and, if necessary, remove the condensation.
  • Page 13 Do not expose persons with health problems (such as allergic respiratory condi‐ tions, asthma) to artificial fog. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. SF-1000...
  • Page 14 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 15: Features

    Features Features This fog machine is suitable for use in clubs, bars, discotheques and on stages. Special features of the device: Remote control included Suitable for mobile use Large fog fluid container SF-1000...

  • Page 16: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 17: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel SF-1000...
  • Page 18 Connections and operating elements 1 Fog nozzle. 2 Fluid container with screw-cap. 3 Carrying handle. 4 Fog fluid feed line from fluid container to vaporiser. 5 Tommy screws to adjust the bracket. 6 Bracket for hanging. fog machine...
  • Page 19 Connections and operating elements Rear panel SF-1000...
  • Page 20 Connections and operating elements 2 Fluid container with screw-cap. 3 Carrying handle. 4 Fog fluid feed line from fluid container to vaporiser. 5 Tommy screws to adjust the bracket. 6 Bracket for hanging. 7 This LED indicates that the unit is warming up. 8 Connection for the remote control.
  • Page 21 Connections and operating elements Remote control SF-1000...
  • Page 22 Connections and operating elements 11 Rotary control [CONTINUAL] With this control you can set the fog output duration. 12 Rotary control [INTERVAL] This control lets you adjust the time interval between two outputs. 13 The green status LED indicates that the unit has reached the required operating temperature for fog generation. 14 Button [MANUAL] Use this button to manually control the fog output.
  • Page 23 Connections and operating elements 17 The yellow LED indicates that the Timer function is active. 18 Button [TIMER] Press this button to turn the Timer function on or off. SF-1000...

  • Page 24: Operation

    Operation Operation Filling the unit NOTICE! Possible damages caused by unsuitable fog fluid Fog liquids not approved by the manufacturer may permanently damage the unit. Only use the fog fluids listed on www.thomann.de and follow their instructions for use. First, make sure the unit is switched off. Open the screw-cap of the container and fill in the fog fluid.
  • Page 25 Press the [START] button on the remote control to activate the unit. The red LEDs on the unit and the remote control light up, thus indicating that the unit is heating up. As soon as the required operating temperature is reached, the green LED on the remote con‐ trol lights up. The unit is now operational. SF-1000...
  • Page 26 Operation Operating modes The device supports the following operating modes: Manual operation In this mode, the unit produces fog output as long as you keep the [MANUAL] button pressed. The timer controlled operation mode is deactivated. Timer controlled operation In this mode, the unit produces fog output at the time intervals set with the [INTERVAL] control.

  • Page 27: Technical Specifications

    5 min Operating supply voltage 230 V , 50 Hz Fuse 5 mm x 20 mm, 5 A, 250 V, fast blow Dimensions (W × D × H) 220 mm × 440 mm × 230 mm Weight 8 kg SF-1000...

  • Page 28: Troubleshooting

    Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy The unit does not work Check the mains connection and the main fuse. The unit does not eject any fog 1.

  • Page 29: Cleaning

    Make sure that the device is turned off, disconnected from the mains and completely cooled down. Place the unit in a well ventilated place. Take the suction hose out of the flluid container of the fog machine and put it into the bottle with the cleaning fluid. SF-1000...
  • Page 30 Cleaning Connect the device to the mains and turn it on with the main switch. The red lights on the device and on the remote control light up and thereby indicate that the unit heats As soon as the required temperature is reached, the green LED on the remote control lights up.

  • Page 31: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. SF-1000...
  • Page 32 Notes fog machine...
  • Page 33 Notes SF-1000...
  • Page 34 Notes fog machine...
