Overview
This article provides a quick guidance on MoFi Network MOFI4500 Router setup and configuration to connect it to Swift
Navigation GNSS receiver and obtain corrections from Skylark or a third party RTK correction service.

General Information
The MoFi Network Router MOFI4500-4GXeLTEv2 does not include internal cell modem. For the Internet access it can
either operate as a WiFi client and connect to a WiFi hotspot (in the cell phone for example) or work with cell modem USB
dongle plugged directly to the router.

MoFi Network (​
h ttp://mofinetwork.com​
tested by Swift Navigation.

At Swift we use MoFi routers with Verizon USB cell modem dongles in several test setups with very good results.

The router has four Ethernet RJ45 ports.

Hardware Setup
Recommended Piksi Multi / Duro setup is depicted in the diagram below.


w ww.swiftnav.com​ | ​ s upport@swiftnav.com
​
©2018 Swift Navigation, Inc. All rights reserved | Version 1.1 | Swift Navigation, Inc. Proprietary

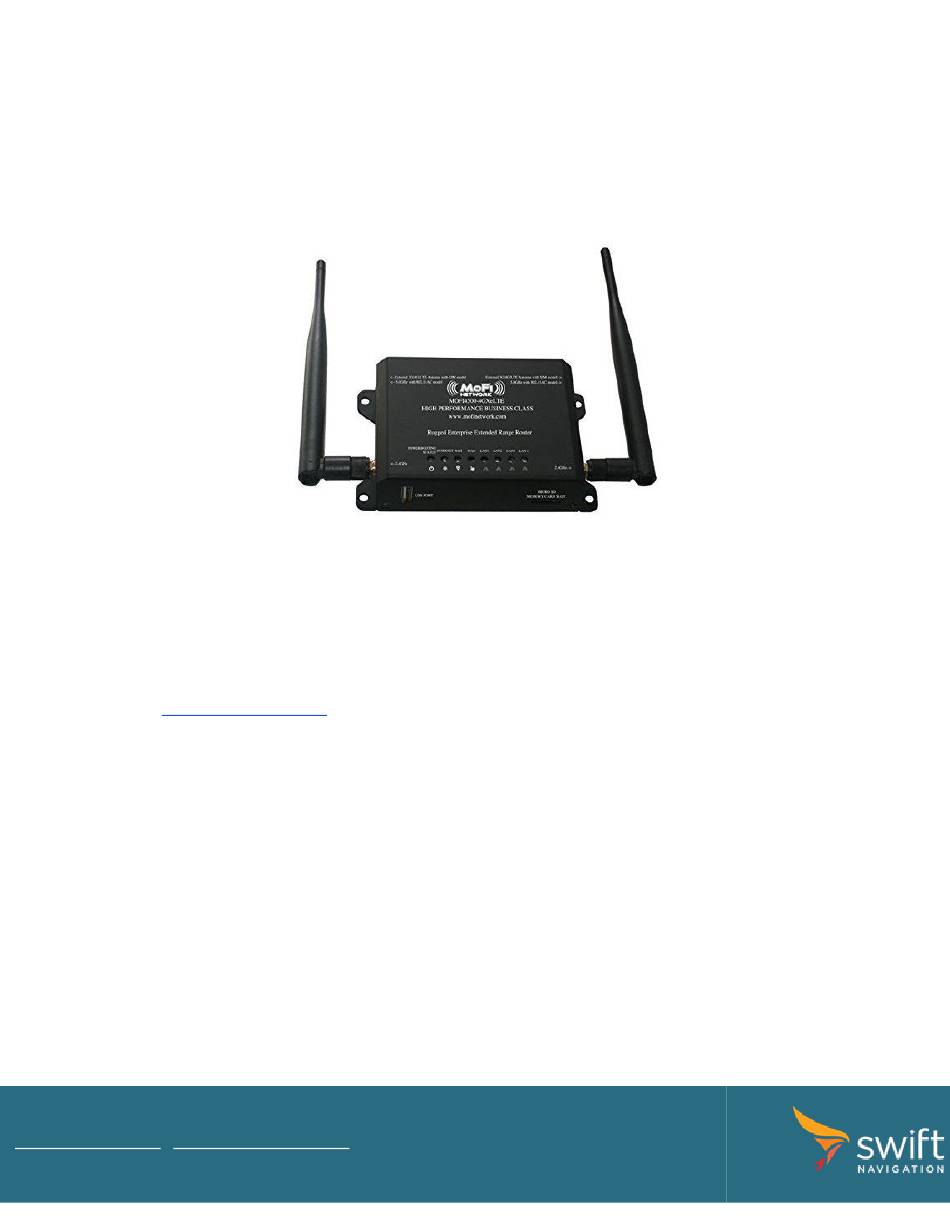

MoFi Network - MOFI4500 Router

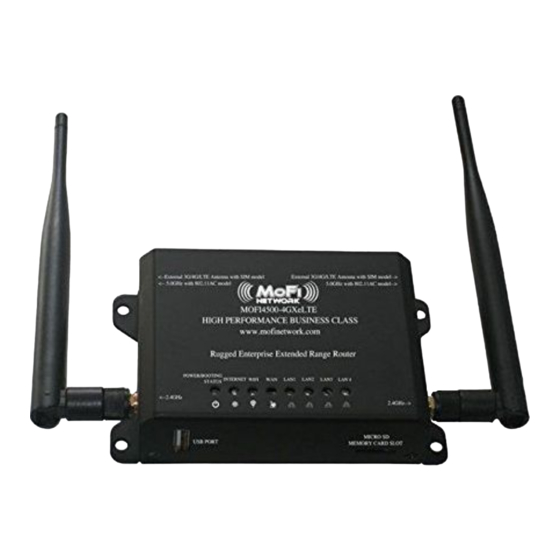

Fig 1. MOFI4500-4GXeLTEv2 Router
) manufactures also other routers with built-in cell modems but they were not




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOFI4500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MOFI NETWORK MOFI4500

Summary of Contents for MOFI NETWORK MOFI4500

  • Page 1: General Information

    MoFi Network - MOFI4500 Router    Overview  This article provides a quick guidance on MoFi Network MOFI4500 Router setup and configuration to connect it to Swift  Navigation GNSS receiver and obtain corrections from Skylark or a third party RTK correction service.   ...
  • Page 2     Fig 2. Hardware Setup    The MOFI4500 router can be used as a Cellular Internet Gateway and connect to Piksi Multi Evaluation Board / Duro  directly.    Piksi Multi Setup Example  Swift Navigation uses following setup to connect Piksi Multi to Internet. ...
  • Page 3   MOFI4500 Basic Setup  1. Plug-in the activated USB cell modem dongle before power up the router.   2. MOFI4500 uses 12 V DC supply. It can be powered from the same power source as Piksi Multi / Duro.     ...
  • Page 4   3. It takes about a minute for router to boot up.  4. As a factory default router is configured as WiFi hotspot and is accessible at 192.168.10.1.  5. With correctly activated cell modem dongle no any changes in router configuration are required. Just power  system up and wait for router to boot up.
