IMI NORGREN F68G Installation & Maintenance Instructions

Option selector
Bowl
E Long
G Standard
Port
6 3/4"
Thread
8 1"
A PTF
A 1 1/4"
B ISO Rc tapered
B 1 1/2"
G ISO G parallel
N No yoke
N No yoke
* See Norgren publication IM-900.920 for specifications and electrical wire connections of the optional electric service indicator.
Technical features
Technical Data
Fluid: Compressed air
Maximum pressure: 17 bar (250 psig)
Operating temperature*: -20° to +80°C (0° to
+175°F)
* Air supply must be dry enough to avoid ice
formation at temperatures below +2°C (+35°F).
Partical removal: 5, 25 or 40 μm
Air quality: Within ISO 8573-1, Class 3 and
Class 5 (particulates)
Typical flow with a 40 μm element at 6,3 bar
(90 psig) inlet pressure and a 0,5 bar (7 psig)
pressure drop: 190 dm /s (403 scfm)
3
1/4 turn manual drain connection: 1/8" pipe
thread
Automatic drain connection: 1/8" pipe thread
Automatic drain operating conditions (float
operated):
Bowl pressure required to close drain: Greater
than 0,3 bar (5 psig)
Bowl pressure required to open drain: Less than
0,2 bar (3 psig)
Minimum air flow required to close drain: 1
dm3/s
(2 scfm)
Manual operation: Depress pin inside drain
outlet to
drain bowl
Nominal bowl size:
0,5 litre (1 pint U.S.)
1 litre (1 quart U.S.)
Materials:
Body: Aluminium
Yoke: Aluminium
Bowl: Aluminium
Liquid level indicator: Pyrex
Element: Sintered bronze or polypropylene
Elastomers: Synthetic rubber
Replacement Items

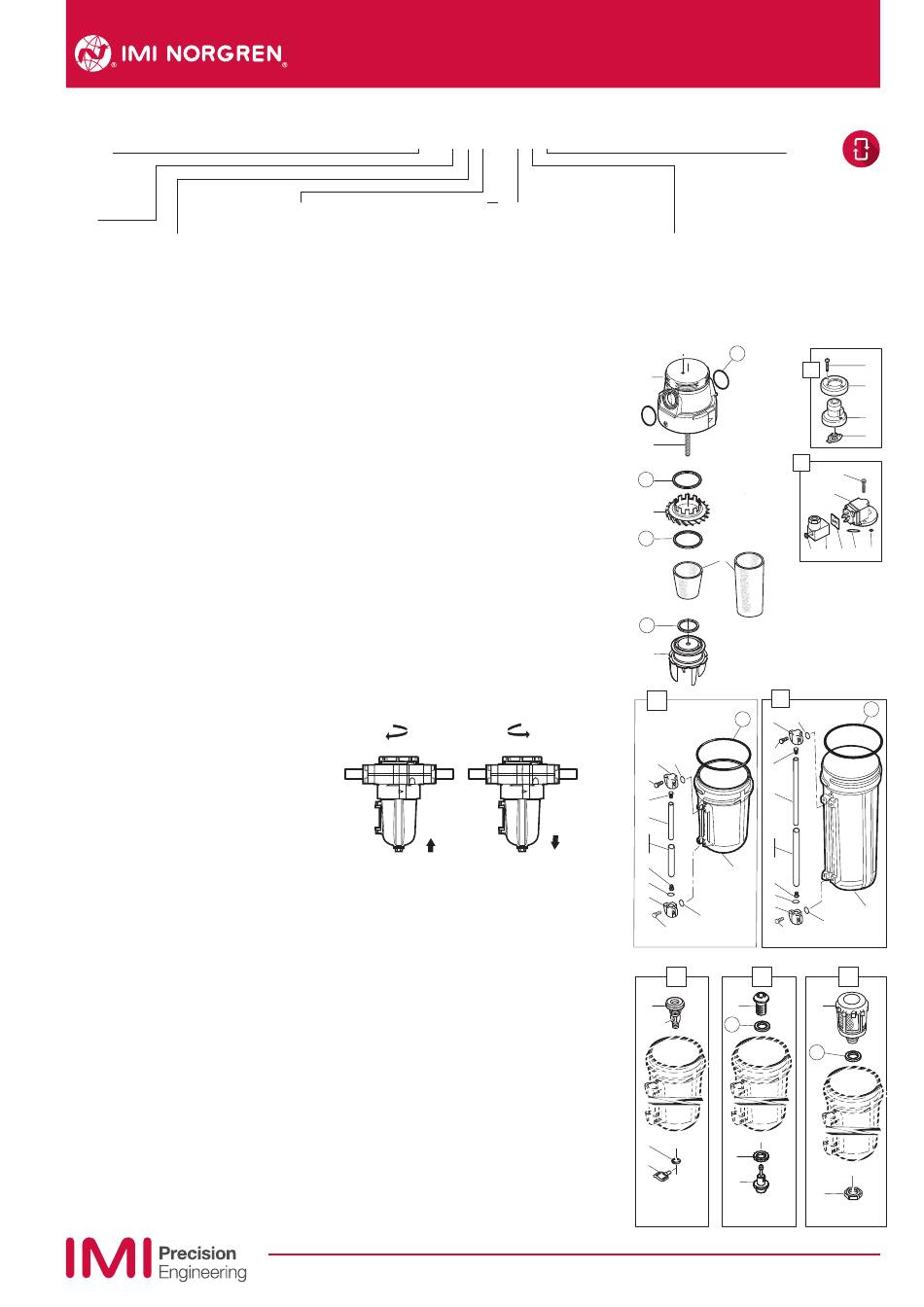

Service kit (items circled on exploded view)
0.5 litre bowl liquid level lens (19 thru 27)
1 litre bowl liquid level lens (30 thru 38)
Filter element, 0,5 litre bowl, 5 μm (54, 55, 56)
Filter element, 0,5 litre bowl, 25 μm (54, 55, 56)
Filter element, 0.5 litre bowl, 40 μm (54, 55, 56)
Filter element, 1 litre bowl, 5 μm (55) 5311-01
Filter element, 1 litre bowl, 25 μm (55) 5311-02
Filter element, 1 litre bowl, 40 μm (55) 5311-03
Automatic drain, G1/8 outlet (49)
Automatic drain, 1/8 PTF outlet (49)
Manual drain, spindle type (44)
Manual drain, 1/4 turn (40)
F68˙ – ˙˙˙ – ˙˙˙
Options
D With mechanical service life indicator
E With electrical service life indicator*
N No service life indicator
Mechanical service life indicator (1)
Electrical service life indicator (6)
Installation
1. Install yoke in air line - with air flow in direction
of arrow on top of yoke, upstream of
regulators, lubricators, and cycling valves, as
close as possible to the air supply when
filter is used as a main line filter, as close as
posible to the device being serviced when
filter is used as a final filter.
2. Connect piping to yoke ports using pipe
thread sealant on male threads only.
3. Lubricate o-rings (15) with a light coat of
o-ring grease, then place o-rings in grooves in
body (14).
4. Place clamp ring under lugs on top of yoke.
5. Make sure arrows on yoke and filter point in
same direction, then plug filter into yoke and
tighten clamp ring hand tight.
6. Turn bowl into body until arrowhead on bowl
is aligned with or to the right of the arrowhead
on the body.
7. Flexible tube with 3mm (0.125") minimum I.D.
can be connected to the automatic drain.
Avoid restrictions in the
Servicing
1. Open manual drain to expel accumulated
liquids. Keep liquids below baffle (53).
2. Clean or replace filter element when dirty,
when optional mechanical service life
indicator shows approximately all red, or
4380-300 when optional electrical service life indicator
provides an electrical output.
4380-060 Diassembly
1. Shut off inlet pressure. Reduce pressure in
4380-061 inlet andoutlet lines to zero.
2. Unscrew the clamp ring and remove filter
5576-97 from yoke.
3. Disassemble in general accordance with the
5576-98 item numbers on exploded view. Do not
remove the drains or the service indicators
5576-99 unless replacement is necessary. Remove
and replace only if they malfunction. Do not
attempt to remove rod (59), as it is cemented
to body.
3000-97
3000-10
684-84
619-50
