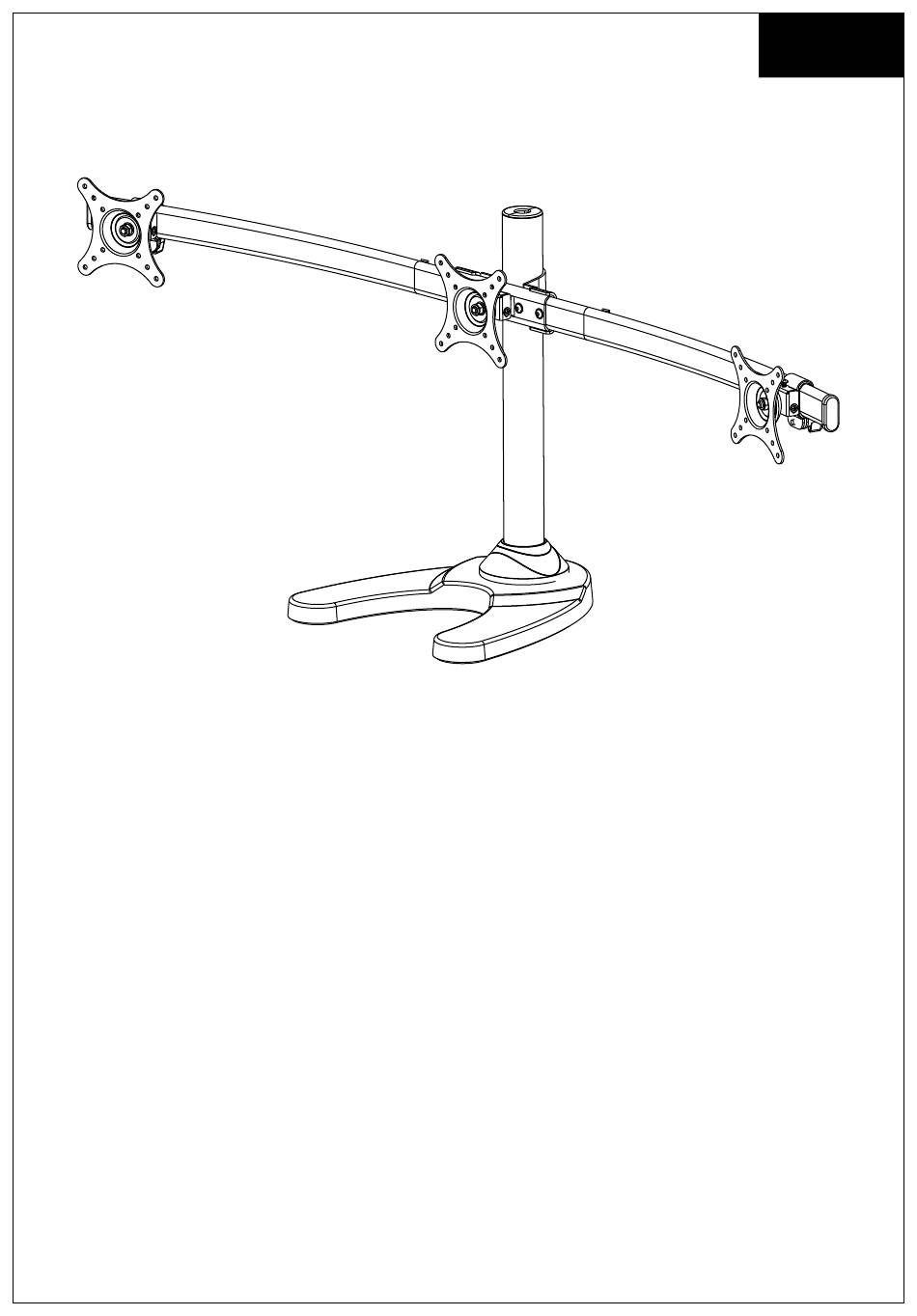

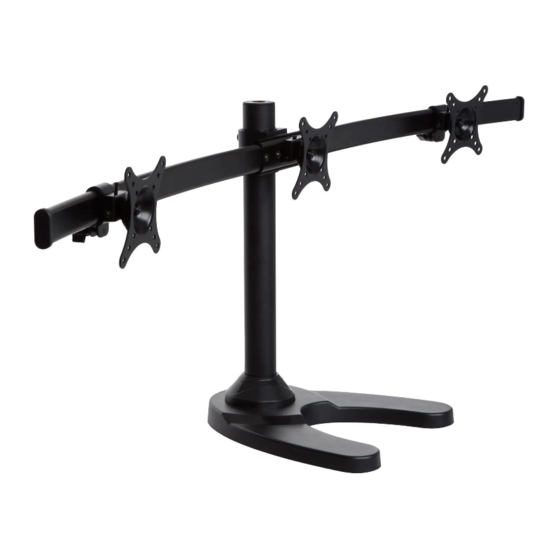

Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for Iiglo MS300
Summary of Contents for Iiglo MS300
-
Page 1: Important Safety Information
English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts. - Page 2 Supplied Par ts List (2) Side Vesa Plate (1) Middle Vesa (1) 48mm Pole-a (1) Weighted Base-b with Slip Set-c1 Plate-c2 (2) Curved Arm-d (1) Arm Connect Part-e (1) Arm Clamp-f (4)M6x25 Bolt-g Decorative (4)M6 Washer-h (2)Arm Plastic Cover-i (3)M6x29 Bolt-j Cover-k (1)Spring Grommet Plate...
- Page 3 Mounting the base according to your requirement Step 1 The stand can be used with the weighted Option 1 metal base or there is a desk attachment provided (as drawings on the bottom) allowing you to mount the stand on a desk. This is very simple to install and just requires a hole drilling (10mm diameter) in your desk and clamping with the bolt and...
- Page 4 Step 2 Assemble the Arm Sets and Install it on the Pole Assemble the curved arm sets as the Insert the curved arm sets to pole, diagram above, fasten the M6x25 fasten the M8x10 Bolt-t by provided Bolt-g by provided Allen Key-o. Allen Key-o.
- Page 5 Attach the Monitors to Arm Sets and Adjust the Tilting Angle Step 4 grub screw Plastic Knob Attaching the monitors to the curved Fasten the grub screw to fix the tilting arm sets, fasten the M4x16 Bolt with angle by provided Allen Key-o. Washer-v, fixing the position by the plastic knob.
