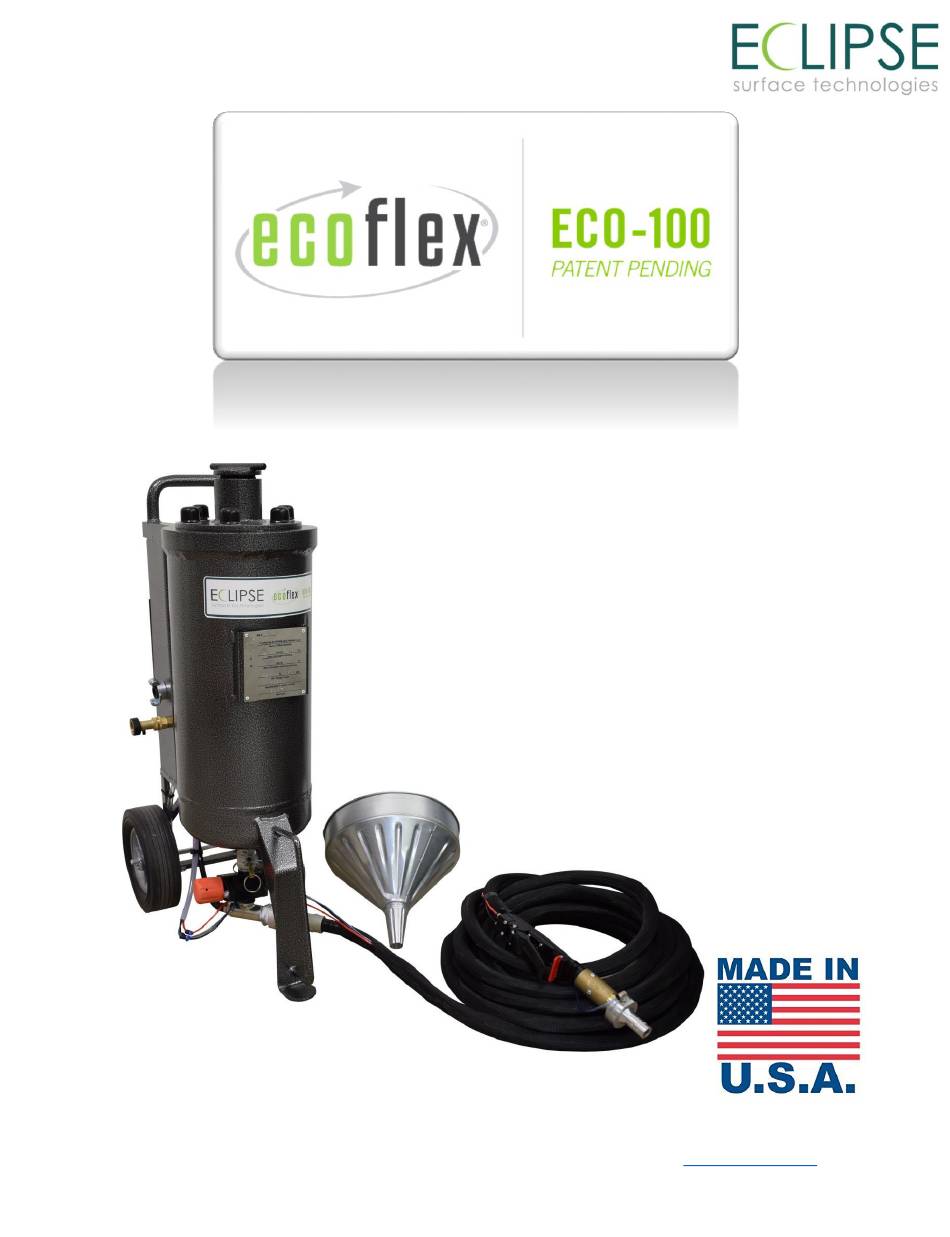

- Page 1 Operation, Maintenance Guide and Replacement Parts • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •...
-
Page 2: Table Of Contents
Refilling the ECO-100 ..........................7 Using the Wash down Feature ........................7 Replacement and maintenance parts ......................10 Technical Specifications ..........................11 WARRANTY ..............................12 Notes ................................13 • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... -
Page 3: Warnings
Keep blast nozzle away from all flammable liquids (abrasive material can generate sparks). Keep a working fire extinguisher in the work area at all times • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... - Page 4 Do not kink, over bend hoses or use hoses to move equipment. Keep children and animals away from equipment and work area. Always comply with all safety regulations. • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •...
-
Page 5: Operation
Keeping 10-20% of blast hose on the ground before elevating hose allows for abrasive to gain velocity. This ensures proper abrasive flow while also preventing extreme recoil of nozzle when trigger is activated. • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... -
Page 6: Preparing To Clean/Blast
In most applications just a fine mist of abrasive is needed. 5. If needed, now activate water flow by turning water flow ball valve on the ECO-100. 6. Start cleaning/blasting. • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... -
Page 7: Refilling The Eco-100
Never use wash down feature to wash down any part of a person’s body. CAUTION: Even with abrasive ball valve fully close, small amounts of abrasive can still be travelling through blast hose and exiting nozzle tip. • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... - Page 8 Torque hex nuts down to 24lbs in a crisscross or star pattern (top of threaded bolts are labled with numbers to show installation pattern). • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •...
- Page 9 (except baking soda or any other water soluble media). If system will not be used for a long period of time (or if system will be stored laying down) full clean out of abrasive is recommended. • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •...
-
Page 10: Replacement And Maintenance Parts
-Cover, poly line -Water line, 50ft -Pneumatic control handle -Rebuild kit, pneumatic control handle -Twin line connections, PTC, pneumatic trigger -Water in connection, PTC, nozzle • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... -
Page 11: Technical Specifications
2 Lug blast coupler Air Connection 2 Lug, Chicago fitting Water Inlet Connection ¾ in. garden hose connection Maximum Blast Hose Length 100 Ft. • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... -
Page 12: Warranty
NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED. Eclipse Surface Technologies, LLC www.eclipseblast.com www.eclipseclean.com techsupport@eclipseblast.com P 1.833.326.3539 • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •... -
Page 13: Notes
Notes • The ECO-FLEX® Product Line, Designed and Engineered by Eclipse Surface Technologies LLC • www.eclipseblast.com •...
