Pulsar Chromabatten Series Instructions Manual

SPECIFICATION SPECIFICATION
CFLD100 - ChromaFlood100 – 5,8,25,45,12x25,10x90 lenses
CFLD200 - ChromaFlood200 – 8,25,45,12x25,10x90 lenses
CBAT100 - ChromaBatten100 – 10, 25 and 45 degree lenses
CBAT200 - ChromaBatten200 – 10, 25 and 45 degree lenses
CBAT300 - ChromaBatten300 – 10, 25 and 45 degree lenses
The ChromaFlood and ChromaBatten contain state of the art, high
brightness, high efficiency Red, Green and Blue LEDs. These three
primary colours can be mixed together to make an incredible palette
of 16.7 million colours.
They are IP65 rated fixtures and therefore suitable for outdoor or
indoor use. They are powered directly from 100-240 Volts AC and
have full remote DMX control of RGB levels or can function in Stand
Alone Mode. Numerous chases and sequences are built in, enabling
superb lighting effects without complicated programming.
These impressive fixtures are ideal for the architectural and
entertainment markets to give an unlimited colour palette that can
enhance building facades, water features and focal displays or to
providing stunning dynamic colour in shows, conferences, concerts
and themed environments.
Like the ChromaBank, the ChromaFlood and ChromaBatten
contain a PULSAR ChromaZone controller and can therefore also
operate in 3, 6, 9, 10, 36, 42 or 46 Channel Modes.
It is useful to consider the ChromaFlood as being 1 of the 12
fixtures, and the ChromaBatten as being, either 1 or 3, of the 12
fixtures, within a ChromaBank.
Please see the Channel Assignments Tables sheet for details of
the different modes.
The ChromaFlood and ChromaBatten have numerous chases and
effects built in, making it possible to achieve fantastic effects without
programming. These internal effects can be selected via the User
Interface Module (UIM) on the rear of the units whilst in Stand Alone
mode, or from a controller using a digital PMX (Pulsar MultipleX) or
DMX (Digital MultipleX) signal.
Please see the Menu Selection Overview sheet for a pictorial
representation of the menu functions.
The ChromaFlood and ChromaBatten have mounting brackets
making them ideal for floor, wall, ceiling or rig mounting.

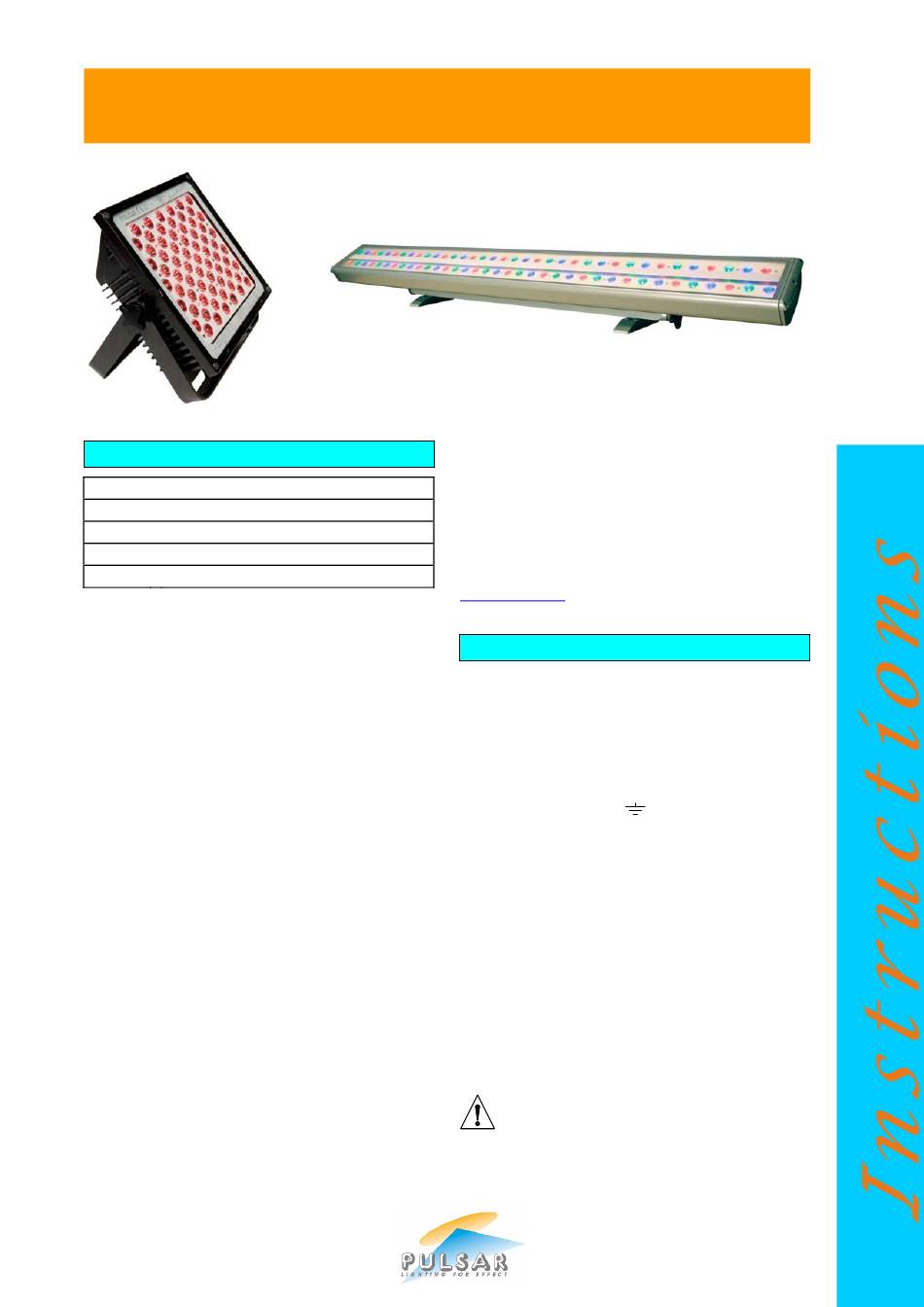

The ChromaFlood picture at the top of this page shows the
mounting brackets arranged for floor mounting.
ChromaFlood and ChromaBatten have a colour code letter. This
signifies the finished colour of the fixture (B = Black, S = Silver). Other
colours may become available - please check with Pulsar if required.
The ChromaFlood and
management system. This progressively reduces the power to the
LEDs if the internal temperature exceeds limits set by the software.
Pulsar Light of Cambridge Limited ● 3 Coldhams Business Park
CHROMAFLOOD

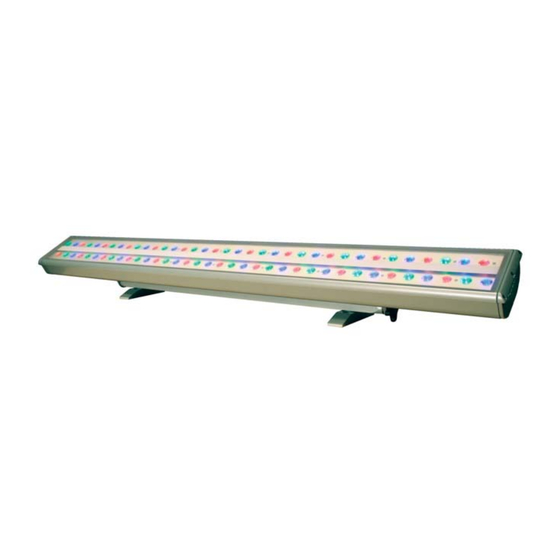

CHROMABATTEN
ChromaBatten have a thermal
● Norman Way ● Cambridge ● CB1 3LH ● England
Excess temperature will occur if the units are exposed to high
ambient temperatures or inadvertently covered.
important for maximum performance that they have good ventilation
on all sides.
The lenses shipped with the ChromaFlood and ChromaBatten
may be easily changed. Currently 5 (ChromaFlood100 only), 8, 25,
45, 12x25 (elliptical) and 10x90 (elliptical) lens plates are available for
the ChromaFlood with 10, 25 and 45 degree lenses available for the
ChromaBatten.
Other lenses may become available, please contact Pulsar or see
www.pulsarlight.com for details
NB - Patents applied for
CONNECTIONS
Mains Supply - The ChromaFlood and ChromaBatten work
correctly on any mains voltage from 100-240 VAC, 50-60Hz, (self
adjusting). Power consumption is 200 Watts max.
A 5m, bare ended, mains cable is provided. The bare end of the
cable should be fitted with a suitably approved and rated mains plug.
Note: in some countries it is a requirement that such a plug be fitted
by a qualified electrician.
CABLE COLOURS
Green/Yellow =
Brown = Live / Phase / Hot
Blue = Neutral
WARNING - THIS APPLIANCE MUST BE EARTHED
For safety we recommend the use of a Residual Current Circuit
Breaker. An RCCB MUST be used when powering a
ChromaFlood or ChromaBatten in wet environments.
PMX/DMX In/Thru 5 Pin XLR Connectors
Digital Control Signals: Two 5 pin XLR connectors on 5m cables
(in/thru) are provided. The pin connections of the sockets are:
PMX (RS232/423) SIGNAL
Pin 1 = Screen / Chassis Earth
Pin 2 = Signal (Blue)
Pin 3 = Signal Earth (White)
Pin 4 = no connection (Green)
Pin 5 = LVS (male only) (Red)
Wet / Damp Environment Use – these products are IP65
rated. However, the cable connections must also be
contained in a dry, low humidity, environment as water and
vapour will travel inside the cables from the connection joints into the
fixture. A waterproof connection box, or properly fitted IP68 rated
connectors, are essential
environments. Suitable connectors are available from Pulsar.
Failure to take these precautions invalidates the guarantee.
● Tel: 44 (0)1223 403500 ● Fax: 44 (0)1223 403501 ●
It is therefore
Earth / Ground
DMX SIGNAL
Pin 1 = Screen / Chassis Earth
Pin 2 = Signal -
Pin 3 = Signal +
Pin 4 = no connection
Pin 5 = LVS (male only)
for cable connections in such
