Valcom V-9927A Quick Start Manual page 3

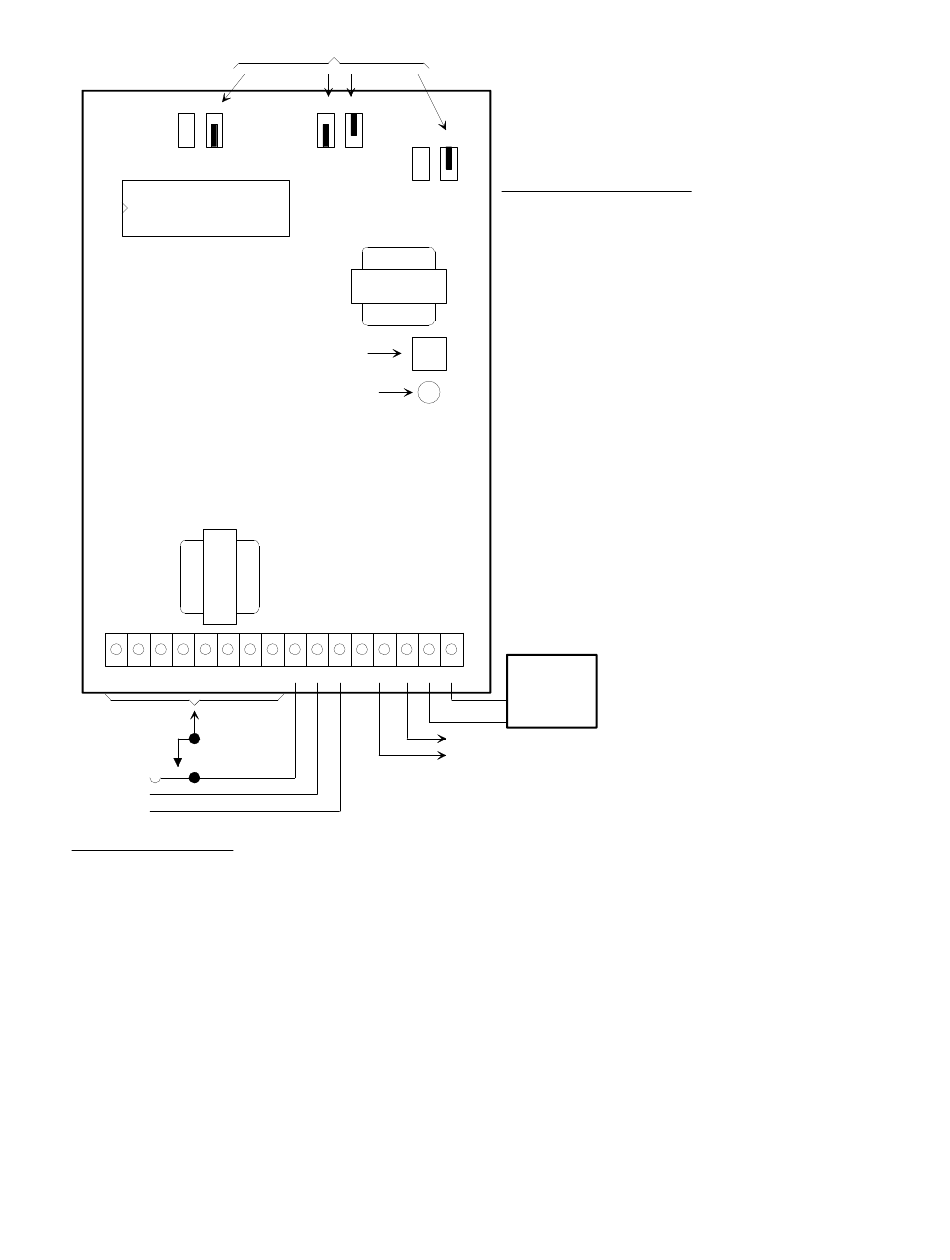

Option Blocks (Jumpers shown in factory default setting))
P6 P5
OUT
IN
T2
JP1
1 2 3 4 5 6 7
TONES
Connect COM to
Desired Tone
Relay
Contact
Signal In
(Optional)
Description of Jumpers
P1 (BURST/CONT) - Sets the mode of the V-9927A. The BURST function allows one (1) tone (or sequence)
for each closure of the TONES input. The CONT function is continuous; the tone (or sequence) will
repeat while the closure on the TONES input (1-8) remains activated.
P3 (TONE BANK Select; OUT/IN) - Activates tones. Refer to the Tone Table (page 2) to determine jumper
placement for the desired tones.
P4 (UNMUTE/MUTE) - Determines if SIGNAL IN is muted or unmuted. With UNMUTE selected, the signal
returns after completion of a designated tone (or sequence) even if the relay on the TONES input (1-8)
remains connected. With MUTE selected, the signal remains off after completion of tones even if the relay
on the TONES input (1-8) is connected.
P5 (OUT/IN) - Determines the fadeout duration of the Input Source. The INPUT source will be faded out in 0.75
seconds if P5 is OUT or will be faded out in 0.25 seconds if P5 is IN.
P2 & P6 - Not used on this version.
P4 P1
UNMUTE BURST
MUTE CONT P2 P3
TONE BANK
SELECT
T1
Adjust for
Desired
Output Level
Green LED POWER
on when power
is present
8 COM SIGNAL COM SIGNAL GND -24V
IN OUT
FIGURE 1
OUT
IN
Compatibility with the V-9927
Set P3 to "IN" position
Set P1 for BURST or CONT as required
Set P4 to UNMUTE
Set P5 to "IN"
TONE inputs 1-4 correspond to WHOOP,
CHIME, BURST, and STEADY.
CODE CALL is available on TONE input 8.
TONE
LVL
ON
Power Supply
-24VDC
(-)
(+)
Signal
Out
3 947926
