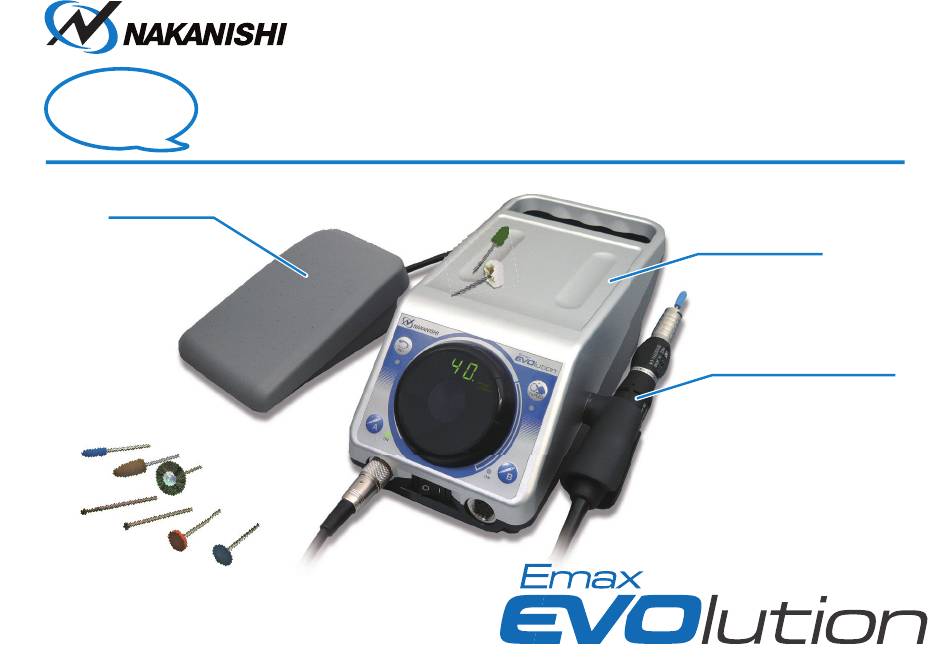

- Page 1 How to How to operate Emax EVOlution Foot pedal Control unit Motor handpiece Emax EVOlution Ultra-precision brushless micro-grinder...
-
Page 2: Names Of Parts
Names of parts Motor rotation speed display Forward/reverse =40,000 rotations/min select switch The direction of motor Speed control volume rotation can be selected. The rotation speed can Forward rotation be easily adjusted. (clockwise) LOAD meter Reverse rotation (counterclockwise) Displays the load status of the motor. - Page 3 How to change tools 1 . Loosen the ring and remove the tool. 2 . Replace the tool and tighten the ring until a click sound is produced. Click Ring Tighten Tighten Loosen Loosen...
- Page 4 How to start the control unit 1 . Turn speed control volume completely to the left. 2 . Switch ON the power supply. * Please make sure that the speed control display is set to...
- Page 5 How to start/stop the motor and adjust the rotation speed * When motor connector A is connected to the motor. To adjust the rotation speed To start 1 . Press or the motor smart 1 . Turn the speed control volume switch.
-
Page 6: Convenient Functions
Convenient functions FIXPEED function FIXPEED allows everyone to set the speed of the motor in advance. The speed that is frequently used can be easily set at the touch of a button. How to set How to cancel a setting Flashing Flashing Short... - Page 7 Ultra-precision brushless micro-grinder Simple setup/operation guide Emax EVOlution Names of parts Specifications Control unit Handpiece ・ ver.190404...
