TRANSFER ( RE-SALE ) OF MACHINE
Should you sell or give the
machine to a 3rd party, make
sure that this "OPERATION
MANUAL" goes with it for safe
and correct operation.

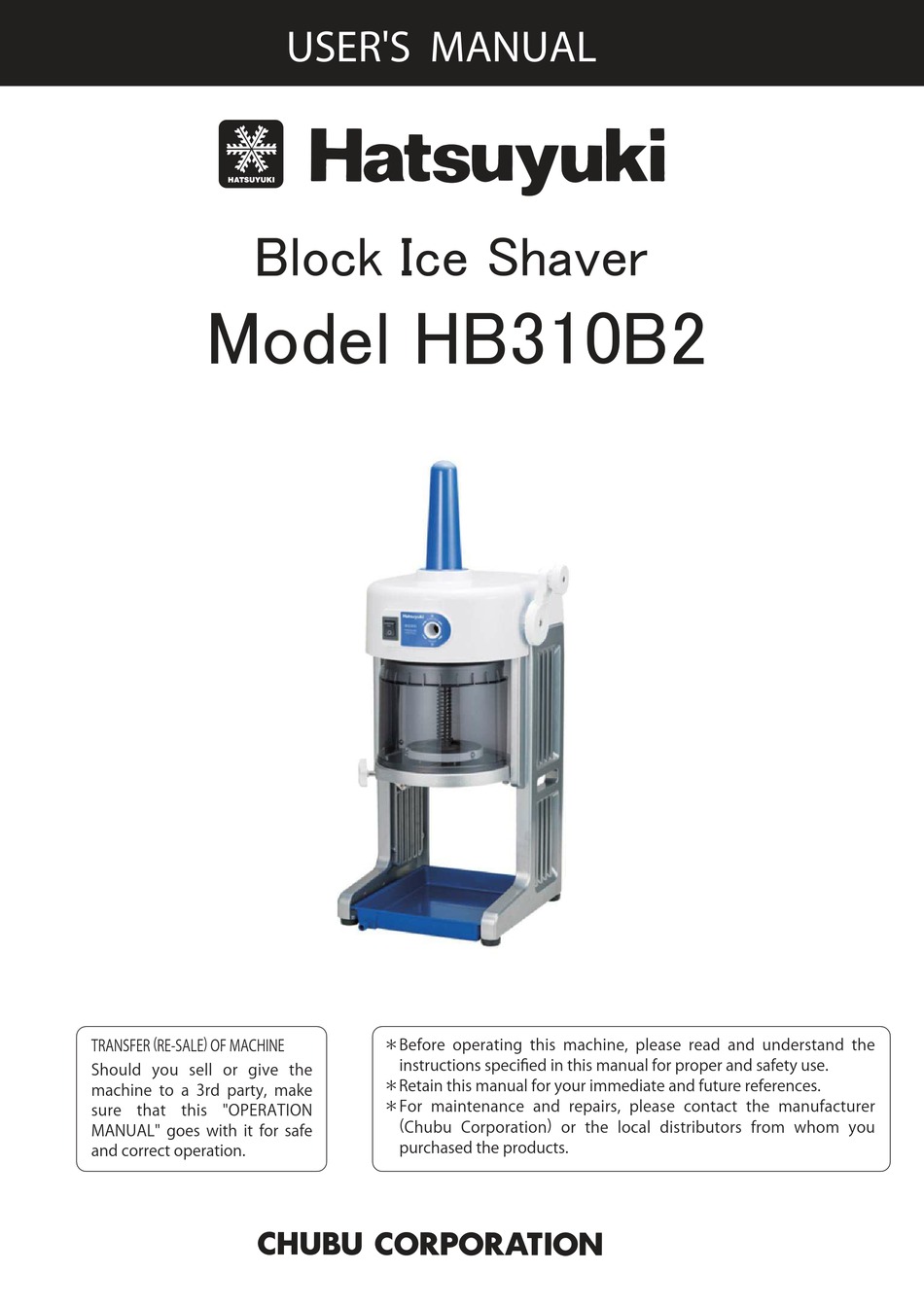

USER'S MANUAL
＊Before operating this machine, please read and understand the
instructions specified in this manual for proper and safety use.
＊Retain this manual for your immediate and future references.
＊For maintenance and repairs, please contact the manufacturer
( Chubu Corporation ) or the local distributors from whom you
purchased the products.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatsuyuki HB310B2
Summary of Contents for Hatsuyuki HB310B2
- Page 1 USER'S MANUAL TRANSFER ( RE-SALE ) OF MACHINE ＊Before operating this machine, please read and understand the instructions specified in this manual for proper and safety use. Should you sell or give the ＊Retain this manual for your immediate and future references. machine to a 3rd party, make ＊For maintenance and repairs, please contact the manufacturer sure that this "OPERATION ( Chubu ...
-
Page 2: For Safety
FOR SAFETY ●Before operating the machine, please read the following "Instructions for Safety" in the manual very carefully, and operate the machine correctly. ●Each instruction specified in the manual is very important for safety, so be sure to follow each instruction as specified. - Page 3 WARNING ●Do not install the machine in a damp or wet place. It can cause electric bleeding or electric shock. ●Do not install/place the machine close to any heating appli- ance. Never install/place the machine close to any heating appliance such as a gas burner.
- Page 4 FOR SAFETY WARNING ● Should accidents or irregular operation occur, TURN OFF the main switch and unplug from outlet. Immediately contact your machine vendor for a correct repairs. Continued operation of a faulty machine can/will cause electric shock or fire. VENDOR ●...
- Page 5 CAUTION ● Always install the machine on a stable and flat surface. Irregular or imperfect installation can cause the unit to tip or fall and is therefore dangerous. ● Install the machine in a location unaffected by occasional dripping of water. Melting ice will drip and can, therefore, drip onto things surrounding the machine.
- Page 6 FOR SAFETY CAUTION ● Clean the food zone area in the shaving chamber before use. Not cleaning it could increase the chance of contamination and could be the cause of illness. ● Do not touch the rotary parts (main shaft and crank handle) during operation. ● Grip the ice block firmly. The ice could jump out if it is not positioned firmly. ...
-
Page 7: Part Names And Functions
PART NAMES AND FUNCTIONS ●This machine is commercial block ice shaver to produce shaved ice from a block of ice - a dice of 13 cm approx. Use a block of ice and never use other items. Tension Adjustment Bolt Power Switch Crank Handle Main Shaft Crank Handle Fixing Screw Shaving Chamber Sliding Cover Blade Adjustment Knob Ice Holder Blade Shaving Table Hose Connector Power Cord Drip Tray... -
Page 8: How To Use
HOW TO USE CHECK BEFORE OPERATION ● Mount the shaft cover on the top ・ Attach the enclosed crank handle of the unit. in the following manner: 1) There is a hole on the right of the head cover. 1) Place the shaft cover in the position that 3 hooks Push the crank handle shaft through this. -
Page 9: Operation Instructions
HOW TO USE OPERATION INSTRUCTIONS 1 ) Plug in the machine. Make sure the power switch ・ Turn the crank handle counter-clockwise to lower is turned to the off position before plugging in the the ice holder and let its prongs grip the ice firmly. unit. If the ice is not firmly gripped, it could jump out. 2 ) Place a block of ice on the shaving table. ・ Move the sliding cover to the left to open. ・ Move the sliding cover (shaving shield) to the right to close it securely. If it is not closed properly, the unit will not work even though it has been turned ... - Page 10 HOW TO USE 5 ) Place a cup under the shaving table to receive the 9 ) Unplug the unit when you are finished. falling shaved ice. 6 ) Switch ON. The machine will begin to shave the ice. 7 ) Adjust the texture of the shaved ice. Turn the blade adjustment knob for the desired ice texture. Standard shaved ice texture is 1 millimeter (mm), as this is the pitch between the blade tip and the ...
- Page 11 HOW TO USE 4 ) Take the ice off the shaving table. TAKING THE ICE OFF THE SHAVING TABLE WARNING In order to avoid injury, do not touch the blade tip when putting ice on the shaving table or when removing ice from the shaving table. 5 ) Turn the crank handle counterclockwise to lower the ice holder. Close the sliding cover (shaving shield). This is for safety reasons.
- Page 12 HOW TO USE ABOUT THE TENSION (2)Remove the cause of the overload (e.g., the blade catches the ice too deeply and prevents rotation ADJUSTMENT BOLT of the ice). Reposition the ice. CAUTION The ice melts and it catches the blade too deeply Adjust the tension adjustment bolt for the ice block holder not to descend when you remove a supporting hand Shaving Table from the crank handle. Otherwise, injury Blade could ...
- Page 13 6 ) Remove the blade upwards through the opening of the shaving table. REMOVING THE BLADE AND ATTACHING THE BLADE 1 ) Switch off and unplug the unit. 7 ) Position a new blade that its engraved mark "初雪 (Hatsuyuki in Japanese)“ faces the guide plate, and 2 ) Move the sliding cover to the left to open. insert it in between the blade holder and the guide plate from the opening of the shaving table. Engraved 「初雪」 3 ) Raise the crank handle clockwise to raise the ice ...
-
Page 14: Daily Maintenance
MAINTENANCE WARNING DAILY MAINTENANCE Be sure the unit is switched off and ● Inside Ice Shaving Chamber (including the shaving unplugged before cleaning. Wear table, slide cover etc.): protective gloves when cleaning the inside of the chamber and when 1 ) Turn the blade adjustment knob completely changing blades. Do not touch the clockwise to lower the blade behind the surface of ... -
Page 15: Monthly Maintenance
4 ) Insert the crank handle to the worm shaft temporarily CLEANING ( COVERS ) (Ref. Page 7 Fixing Crank Handle). Turning the crank handle, lubricate the 2 small holes of the wormshaft holder top and the contact of Y-brake and the ・... -
Page 16: Yearly Maintenance
MAINTENANCE YEARLY MAINTENANCE WARNING Periodically confirm there is no dust on the plug prongs blade attachments. Periodically plug in the unit to check it works. An improper connection could cause a fire or electric shock. Do not damage the power cord. Keep it clean. -
Page 17: Troubleshooting
TROUBLE SHOOTING ● The machine should be serviced by the distributor or an authorized mechanic. Problems Things To Check What To Do Is the plug connected to the socket? Connect to the socket. Is the protector working? See page 11 - About the Protector. The machine does not Is the belt mounted properly? Contact the distributor. -
Page 18: Specifications
SPECIFICATIONS Model HB-310B2 Block Ice Shaver Rated Power 230 W (50 Hz) / 205 W (60 Hz) Consumption Shaving Capacity 1.8 kgs (50Hz) / 2.2 kgs (60Hz) ( kg/minute) Effective Diameter 200 mm dia. for Shaving Unit Dimensions × ×609 (+180) ( W×D×H ) Net Weight 17.0 ( kg ) Electrical Check the machine plate. ( 230V,1Ph,50/60Hz ) Extra Blade ………… 1 Crank Handle Fixing Bolt ( M6 x 16 with lock ) … 1 Standard Drip Hose …………… 1 Drain Hose ( Except HF-300P ) ………………… 1 Accessories Gear Oil ...
