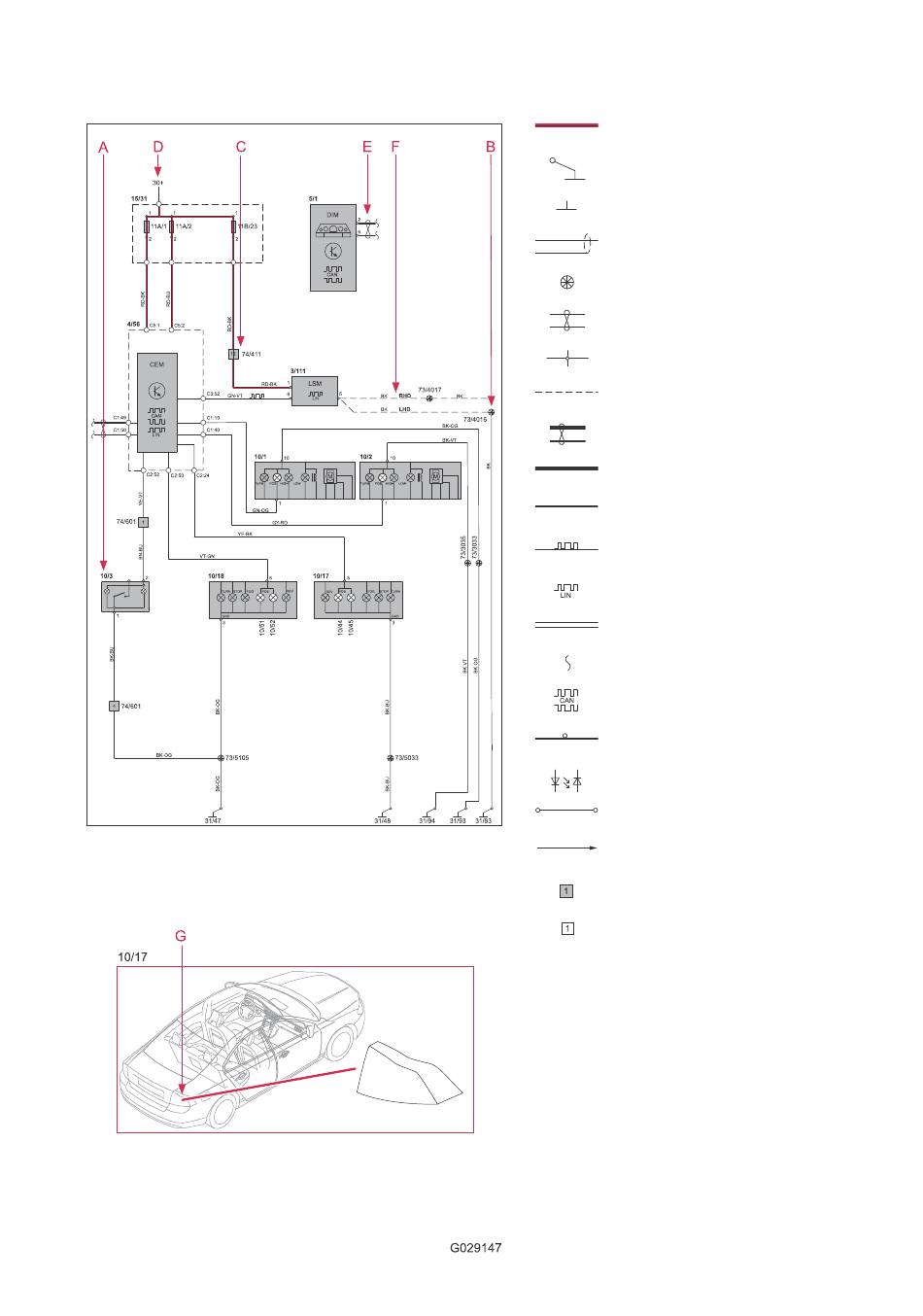

How to use the wiring diagrams 2:2
List of symbols
= System voltage
= Ground connection via wiring
= Ground connection in
component/chassis
= Screened wire
= Junction point
= Twisted cable
= Electrical connection
= Variant
= CAN communication
= CAN high data signal (CAN H)
= CAN low data signal (CAN L)
= LIN communication
= LIN communication
= DIN cable, coaxial cable, etc.
= Data communication
= CAN communication
= MOST communication
= MOST communication
= Connection with distribution box
= Further connection to...
= Connector between cable
harnesses
= Connector connected in
component
TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013
8
