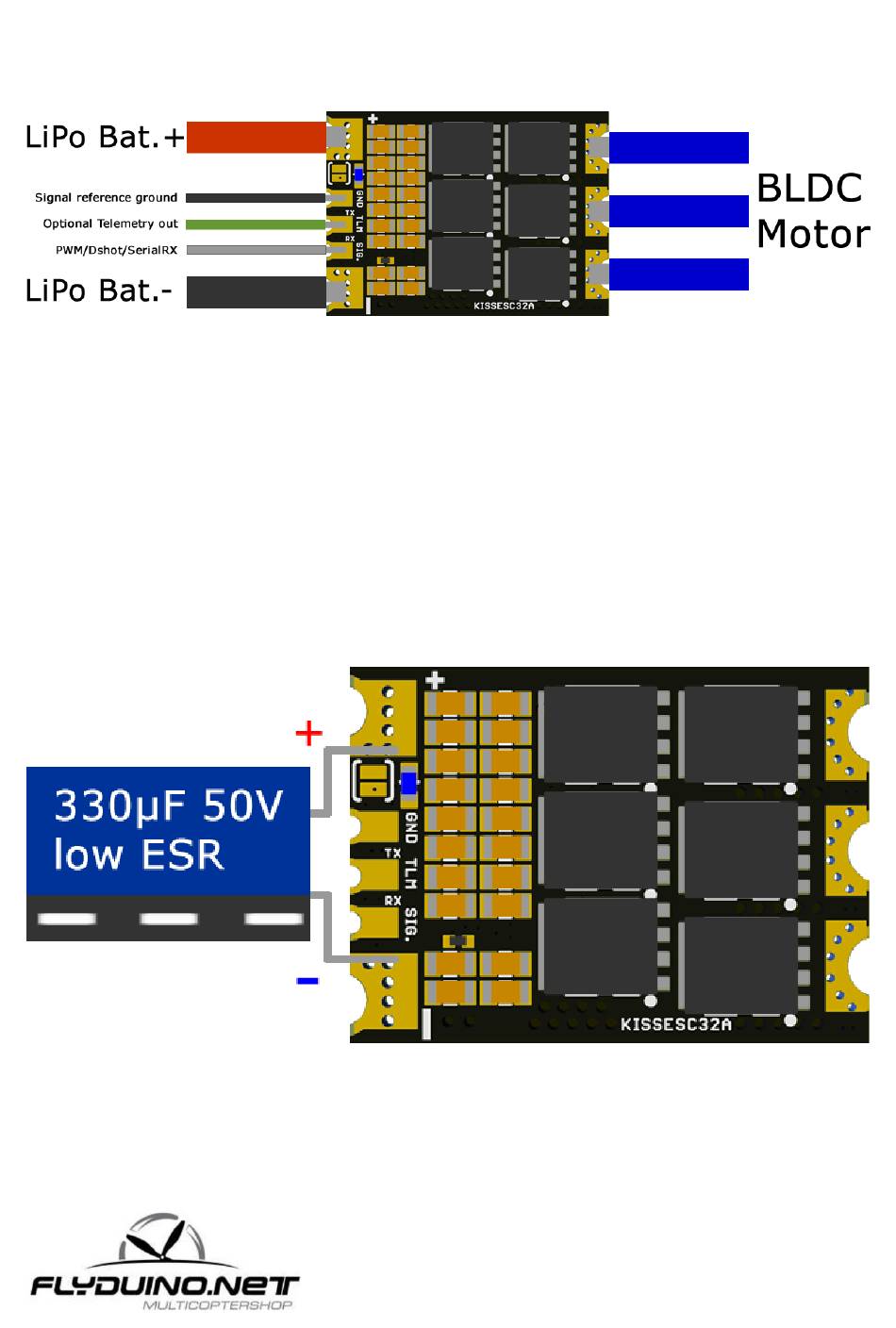

Soldering wires
Commissioning of the ESC / speed controller for a brushless electric motor:
• Soldering each of the three motor cables to each one of the three solder pads (1)
• LiPo power cable with plug solder (2 + 3). IMPORTANT!!! Note polarity, otherwise the ESC /
controller is immediately destroyed when connecting the power supply. The LiPo can also be
damaged.
• Solder signal cable, white or yellow cable (4), the black wire to (5)
Add a Capacitor for 6S LiPo use
