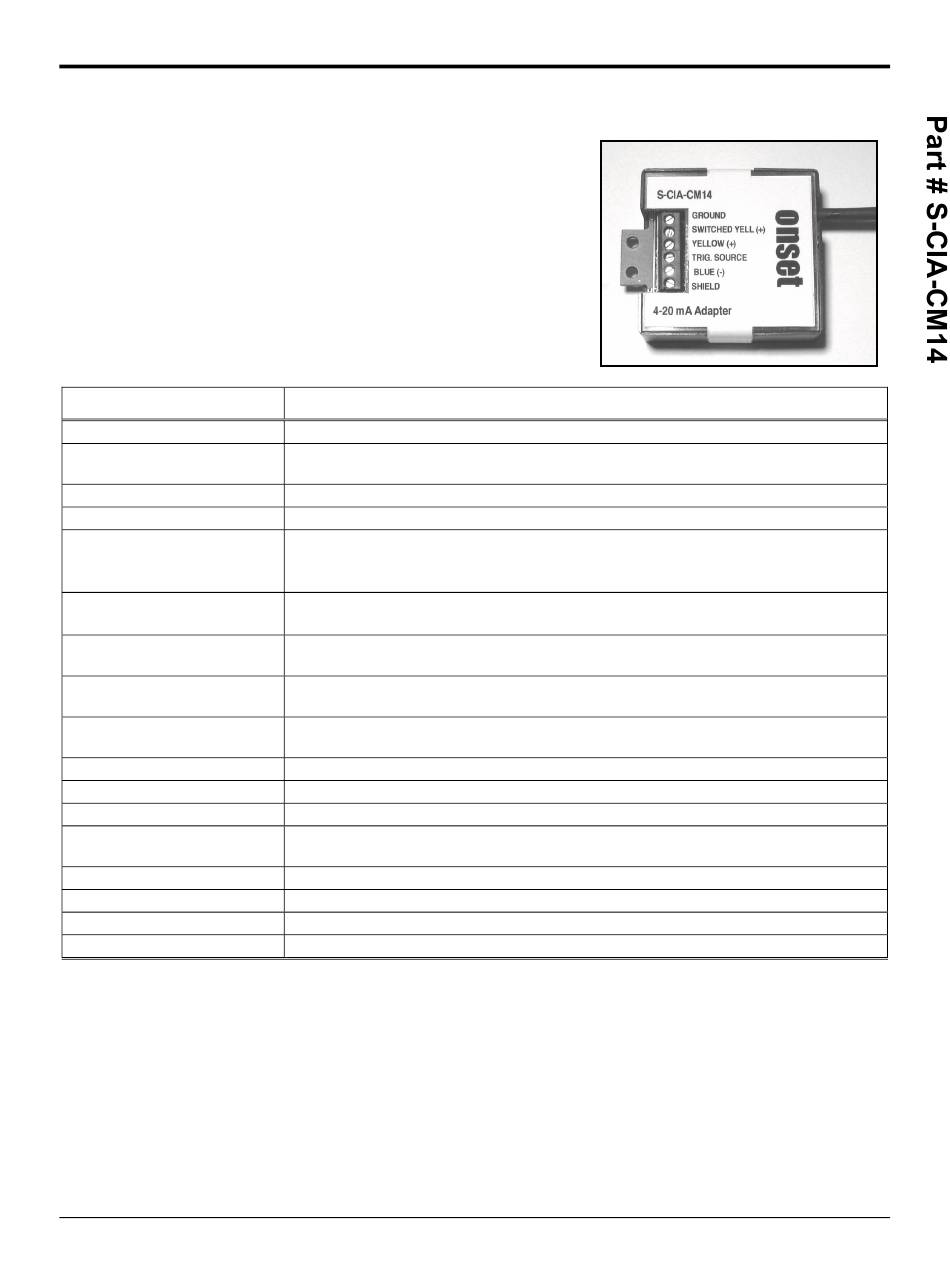

12-Bit 4-20 mA Input Adapter (Part # S-CIA-CM14)
The 12-Bit 4-20 mA Input Adapter is used for sensors with
4-20 mA current loop outputs and is designed to work with the
®
HOBO
Weather Station and Micro Station data loggers. The
input adapter features both a battery-saving switched input and a
non-switched input. It also provides a trigger source voltage for
controlling power to external sensors. The input adapter has a
plug-in modular connector that allows it to be added easily to the
HOBO Weather Station or HOBO Micro Station.
Specification
Measurement Range*
Accuracy
Resolution
Input Impedance
Switched Input
Sensor Trigger: Source
Operating Temperature
Range
Housing
User Connection
Dimensions
Weight
Number of Data Channels
Measurement Averaging
Option
Digital Filtering
Bits per Sample
Length of Network Cable
Part Number
* The input adapter can provide readings as low as 0 mA. This can be helpful when diagnosing sensor issues such
as open inputs.
†
The HOBO Weather Station and HOBO Micro Station have 10 and 4 data ports, respectively. A single HOBO
Weather Station or HOBO Micro Station can theoretically accommodate up to 15 data channels and up to 100 m
(328 ft) of network cable (the digital communications portion of the input adapter and smart sensor cables),
although available space in the enclosure may limit the number of sensors you can attach.
© 2003 Onset Computer Corporation
Part #: MAN-S-CIA
Doc #: 7583-A
12-Bit 4-20 mA Input Adapter
4-20 mA
± 0.1 mA (± 0.5% full scale) over full temperature range of -40°C to 75°C
(-40°F to 167°F)
± 4.93 µA
124Ω
Maximum switch voltage above ground (Pin 2 to Pin 1): 20 V
Maximum switch current: 50 mA
On time: 316.6 ms ± 3%
Voltage: 2.5 V ± 2.4%; maximum source current: 1 mA
On time: 316.6 ms ± 3%
-40° to 75°C (-40° to 167°F)
Plastic case; must be placed inside logger enclosure to protect from direct
exposure to the weather
Six-position screw terminal strip (16 – 30AWG); shielded cable recommended with
outside diameter of 3.2 mm to 3.8 mm (0.125 in. to 0.150 in.)
4.5 x 4.8 x 1.6 cm (1.8 x 1.9 x 0.6 in.)
25 g (0.88 oz)
†
1
Yes
Automatic digital filtering with 32 readings/sample in 16.6 ms
12
†
14 cm (5.5 in.)
S-CIA-CM14
