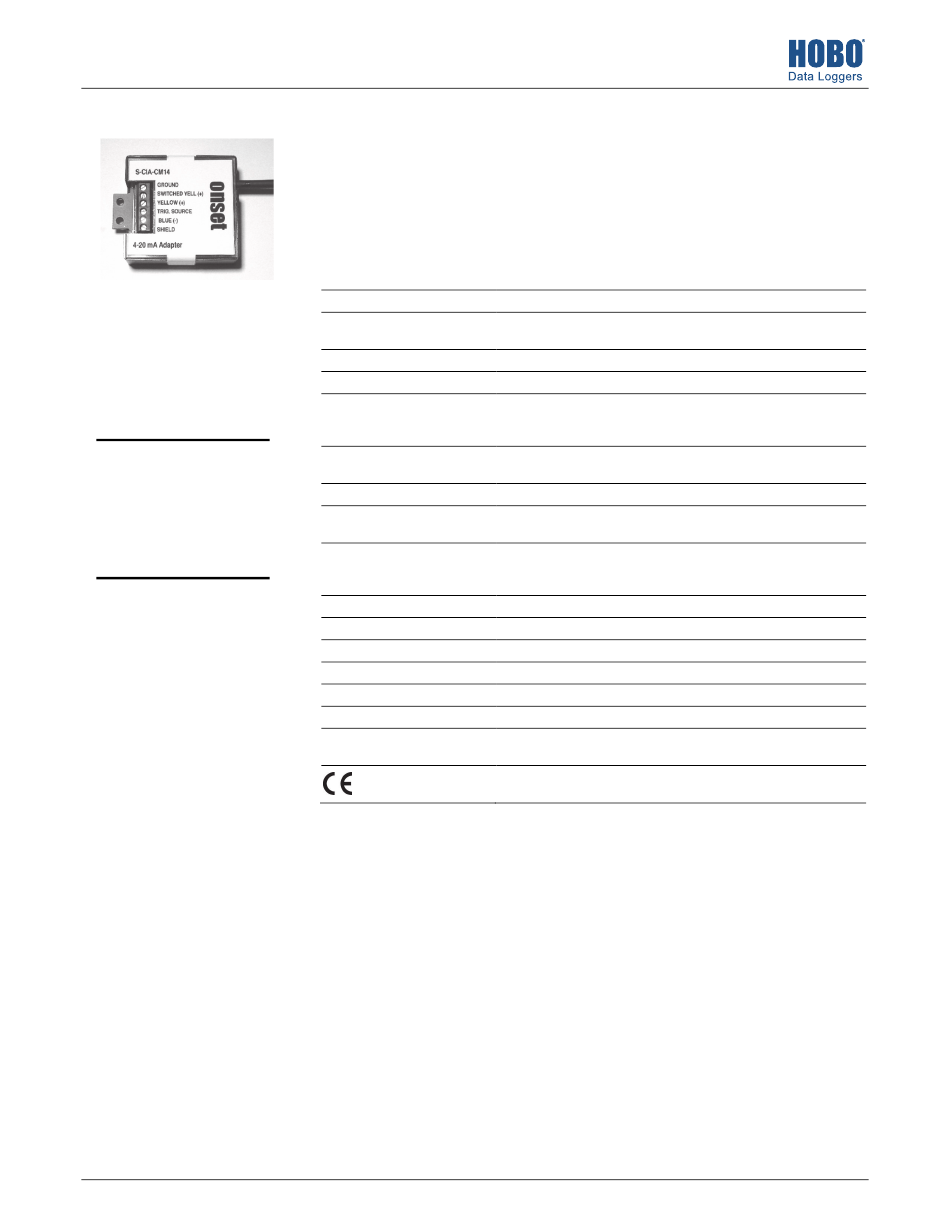

12-Bit 4–20 mA Input Adapter (S-CIA-CM14) Manual
12-Bit 4–20 mA
Input Adapter
S-CIA-CM14
Items Included:
• Hook and loop tape
• Cable ties
7583-C MAN-S-CIA
Shop for Data Logging products online at:
The 12-Bit 4–20 mA Input Adapter is used for sensors with 4–20 mA current loop outputs and is
designed to work with the HOBO® stations. The input adapter features both a battery-saving
switched input and a non-switched input. It also provides a trigger source voltage for
controlling power to external sensors. The input adapter has a plug-in modular connector that
allows it to be added easily to a HOBO station.

Specifications

Measurement Range*
Accuracy
Resolution
Input Impedance
Switched Input
Sensor Trigger: Source
Operating Temperature Range
Housing
User Connection
Dimensions
Weight
Number of Data Channels**
Measurement Averaging Option
Digital Filtering
Bits per Sample
Length of Smart Sensor
Network Cable**
* The input adapter can provide readings as low as 0 mA. This can be helpful when diagnosing sensor issues such as open
inputs.
** A single station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital
communications portion of the sensor cables), although available space in the enclosure may limit the number of
sensors you can attach.

Mounting

Use the self-adhesive hook-and-loop tape included in the package to mount the input adapter
inside the logger enclosure. To mount more than one adapter, use the back of the logger
enclosure door.
For the HOBO Micro Station, you can place the input adapter inside the logger enclosure and
allow it to float freely. It is not necessary to use the hook-and-loop tape.

Mounting Considerations

• If sensor cables are left on the ground, use a conduit to protect against animals, lawn
mowers, exposure to chemicals, etc.
• Refer to the logger manual for additional details on mounting.
DataLoggerStore
www.
4–20 mA
± 0.1 mA (± 0.5% full scale) over full temperature range of -40°C to
75°C (-40°F to 167°F)
±4.93 µA
124 Ω
Maximum switch voltage above ground (Pin 2 to Pin 1): 20 V
Maximum switch current: 50 mA
On time: 316.6 ms ±3%
Voltage: 2.5 V ±2.4%; maximum current: 1 mA
On time: 12.7 ms ±3%
-40°C to 75°C (-40°F to 167°F)
Plastic case; must be placed inside logger enclosure to protect from
direct exposure to the weather
Six-position screw terminal strip (16–30AWG); shielded cable
recommended with outside diameter of 3.2 to 3.8 mm (0.125 to
0.150 in.)
4.5 x 4.8 x 1.6 cm (1.8 x 1.9 x 0.6 in.)
25 g (0.88 oz)
1
Yes
Automatic digital filtering with 32 readings/sample in 16.6 ms
12
14 cm (5.5 in.)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
