JBL MTC-CBT-SUS3 Manual

Suspension bracket for cbt speakers

Download this manual

Suspension Bracket for CBT Speakers

Included:

2 x MTC-CBT-SUS Brackets

8 x M6 x 20 mm PAN HEAD BOLTS (for CBT 50LA-1, 100LA-1, 200LA-1, 70J-1, 70JE-1)

8 x M8 x 20 mm PAN HEAD BOLTS (for CBT 1000, 1000E back panel)

8 x M8 x 40 mm PAN HEAD BOLTS (for CBT 1000, 1000E top or bottom end-cap)

8 x M6 FLAT WASHERS and 8 x M6 LOCK WASHERS

8 x M8 FLAT WASHERS and 8 x M8 LOCK WASHERS

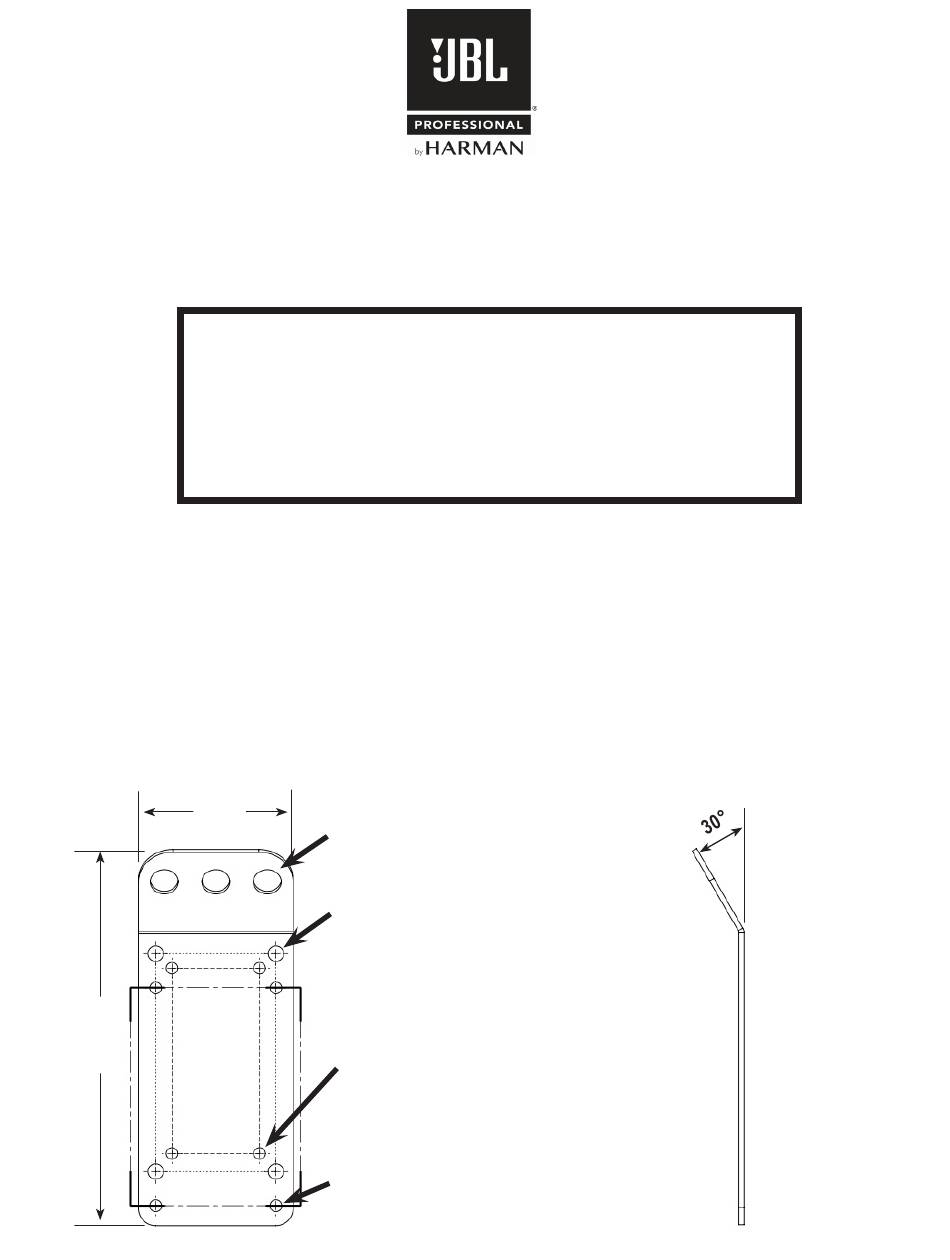

Step 1: Find the locations of the mounting hole pattern on the bracket that correspond with the specific CBT

loudspeaker model. Note the correct hardware size (M8 or M6) that correspond with that model.

219

[8.6]

MTC-CBT-SUS3

Installation must be done by qualified persons

using safe rigging standards.

The installer is responsible for proper selection and use of

mounting hardware to properly and safely suspend the speakers.

[3.5]

Ø 15 [0.62] dia (x3)

Clip Points

M8 Clearance Holes (x4)

for CBT 1000, 1000E

M6 Clearance Holes (x4)

for CBT 50LA-1, 100LA-1, 200LA-1

M6 Clearance Holes (x4)

for CBT 70J-1, 70JE-1

CAUTION:

Dims in mm [in]

Page 1 MTC-CBT-SUS3 Suspension Bracket for CBT Speakers CAUTION: Installation must be done by qualified persons using safe rigging standards. The installer is responsible for proper selection and use of mounting hardware to properly and safely suspend the speakers. Included: 2 x MTC-CBT-SUS Brackets...
Page 2 Step 2: Position the brackets on the back of the speaker so they use the four insert points closest to the top and bottom of the box (see drawing). Make sure that the flat washers and the lock washers included are used as shown.
Page 3 CBT 1000 and the bottom end cap from the CBT 1000E if you are preparing to mount the system after you have attached the two speakers with the connector plate). Step 2: Use the M8 x 40 mm PAN HEAD BOLTS to secure the MTC-CBT-SUS3 brackets to the top and/or bottom of the plastic end cap, as shown.
Page 4 JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 U.S.A. MTCCBTSUS3 MAN 12/16...
