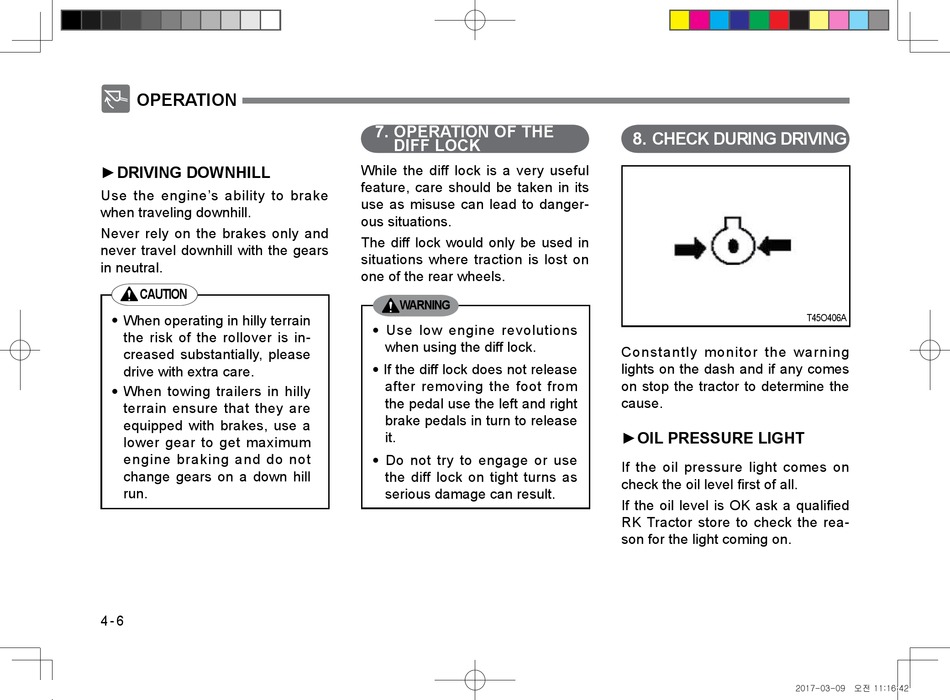

Operation Of The Diff Lock; Check During Driving; Check During Driving - Rural King RK55 Shuttle Shift Series Operator's Manual

OPERATION
► DRIVING DOWNHILL
Use the engine's ability to brake
when traveling downhill.
Never rely on the brakes only and
never travel downhill with the gears
in neutral.
CAUTION
•
When operating in hilly terrain
the risk of the rollover is in-
creased substantially, please
drive with extra care.
•
When towing trailers in hilly
terrain ensure that they are
equipped with brakes, use a
lower gear to get maximum
engine braking and do not
change gears on a down hill
run.
4 - 6
RK55S,55SC-영문판-04.indd 6
7. OPERATION OF THE
DIFF LOCK
While the diff lock is a very useful
feature, care should be taken in its
use as misuse can lead to danger-
ous situations.
The diff lock would only be used in
situations where traction is lost on
one of the rear wheels.
WARNING
Use low engine revolutions

when using the diff lock.
If the diff lock does not release

after removing the foot from
the pedal use the left and right
brake pedals in turn to release
it.
Do not try to engage or use

the diff lock on tight turns as
serious damage can result.

8. CHECK DURING DRIVING

Constantly monitor the warning
lights on the dash and if any comes
on stop the tractor to determine the
cause.
► OIL PRESSURE LIGHT
If the oil pressure light comes on
check the oil level first of all.
If the oil level is OK ask a qualified
RK Tractor store to check the rea-
son for the light coming on.
