Rural King RK19 Hydrostatic Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Rural King Supply
Rural King Supply
Rural King Supply
4216 Dewitt Ave.
4216 Dewitt Ave.
4216 Dewitt Ave.
Mattoon IL 61938
Mattoon IL 61938
Mattoon IL 61938
OPERATOR'S MANUAL
OPERATOR'S MANUAL
OPERATOR'S MANUAL
RK19
RK19
RK19
RK19
RK19
RK19
Hydrostatic
Hydrostatic
Hydrostatic
Hydrostatic
Hydrostatic
Hydrostatic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK19 Hydrostatic and is the answer not in the manual?

Questions and answers

All Dufrresne
May 31, 2025

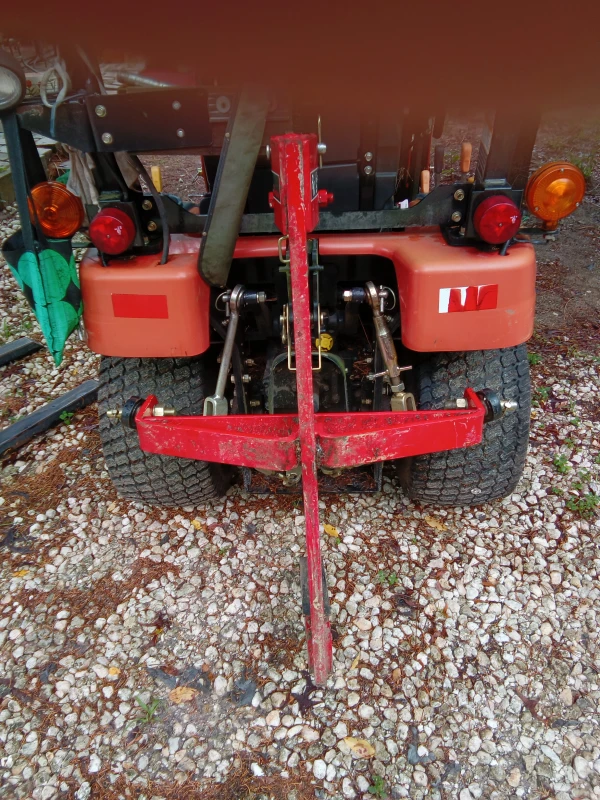

I have the rk19 and bought the ditch/pipe digger. I can only get two inches deep. How to adjust to get deeper?

User image 683b19393d6a3
0
1 comments:
Mr. Anderson
May 31, 2025

To adjust the Rural King RK19 Hydrostatic for deeper digging with a ditch/pipe digger, you should:

1. Lower the implement fully using the Position Control lever. This ensures the digger reaches its maximum depth.
2. Adjust the 3-point hitch to achieve proper implement angle and depth. Make sure the implement is level and can reach deeper into the soil.
3. Ensure proper PTO operation if the digger is PTO-driven. The rear PTO operates at 540 rpm with a 1 3/8 in. shaft.
4. Add weight if needed to maintain traction and balance during deep digging.
5. Check hydraulic system function to ensure the implement lift and controls operate smoothly. The hitch lift capacity is 1,100 lb (499 kg).

Make sure to follow safety procedures and check that the implement is properly attached.

This answer is automatically generated

0
Sandrus Daniel
July 4, 2025

How much oil goes in engine

0

Subscribe to Our Youtube Channel

Related Manuals for Rural King RK19 Hydrostatic

Summary of Contents for Rural King RK19 Hydrostatic

  • Page 1 OPERATOR'S MANUAL OPERATOR'S MANUAL OPERATOR'S MANUAL Rural King Supply Rural King Supply Rural King Supply 4216 Dewitt Ave. 4216 Dewitt Ave. 4216 Dewitt Ave. Mattoon IL 61938 Mattoon IL 61938 Mattoon IL 61938 RK19 RK19 RK19 RK19 RK19 RK19 Hydrostatic...
  • Page 2 FOReWORD Thank you for purchasing our tractor. We are confident it will give you many years of reliable Service. The introduction in this manual sets out the correct manner of operating, maintaining and checking the tractor to ensure long-term durability. Please ensure correct operation of the tractor as incorrect operation can cause substantial mechanical damage as well as cause accidents with the associated injuries.
  • Page 3 WARNING SIGNS IN THIS MANUAL The following warning signs in this manual draw additional attention to items of importance for the safe and correct operation of the tractor. SIGN MeANING OF THe SIGN This indicates that a condition may result in harm, serious injury or death to you or oth- DANGER er persons if the warning is not heeded.
  • Page 4 SAFeTY PReCAUTIONS 1. TRACTOR IDeNTIFICATION WARRANTY OF THe PRODUCT The engine number is stamped on the left hand side of the engine block. The chassis number is shown on the left hand side of the tractor as shown in The manufacturer warrants this the drawing.
  • Page 5 SAFeTY PReCAUTIONS 2. ABOUT THIS MANUAL This manual has been prepared to Read this Manual carefully and assist you in following/adopting the keep it in a convenient place for fu- correct procedure for running-in op- ture reference. If at any time you re- eration and maintenance of your quire advice concerning your trac- new RK Tractors (Here in after re-...
  • Page 6 SAFeTY PReCAUTIONS 3. INTRODUCTION & DeSCRIPTION TRACTOR AN INTRODUCTION are kept informed of the latest meth- easy reference, we suggest you to ods of servicing tractors. They stock write the number in the space pro- The word, ’tractor’ has been derived genuine spare parts and are backed vided in the owner’s personal data.
  • Page 7 SAFeTY PReCAUTIONS DeSCRIPTION ▶GeNeRAL CONSTRUCTION ▶ReAR AxLe & WHeeLS ▶eNGINe The transmission case, Engine and The tractors are fitted with vertical, This is mounted on ball bearings Front Axle Support are bolted to- Water-cooled 3-cycle and spherical and is enclosed in removable hous- gether to form a rigid unit.
  • Page 8 SAFeTY PReCAUTIONS 4. OWNeR ASSISTANCe ▶eLeCTRICAL SYSTeM We at RK Tractors and your RK Your name, address and tele-  A 12 Volt Lead Acid Propylene Bat- Tractor store wants you to be com- phone number tery is used to activate the Engine pletely satisfied with your invest- Model and tractor serial number through the Starter Motor and the...
  • Page 9 SAFeTY PReCAUTIONS 5. ROPS (ROLL OVeR PROTeCTIVe STRUCTUReS) ROLL OVeR PROTeCTIVe STRUCTUReS (ROPS) USe OF THe TRACTOR WITH THe ROPS LOWeReD CAN CAUSe FATAL INJURIeS RK tractors are equipped with a DANGER As the ROPS frame or cab together frame for the protection of opera- with the seat belt was designed to •...
  • Page 10 SAFeTY PReCAUTIONS DAMAGe OF THe ROPS SeAT SLIDING WARNING Seat Belt Never attach chains or ropes to  the ROPS for pulling purpos- es; this will cause the tractor to tip backwards. Always pull from the tractor drawbar. Be care- ful when driving through door Forward / Backward opening or under low overhead...
  • Page 11 SAFeTY PReCAUTIONS 6. SAFeTY INSTRUCTIONS To select Seat position, move Ad- ReCOGNIZe SAFeTY INFORMATION SIGNAL WORDS justing lever and slide Seat closer to or away from Dash panel and con- trols. DANGER DANGER • Check whether the seat prop- WARNING erly locked in its position be- fore driving the tractor.
  • Page 12 SAFeTY PReCAUTIONS ReAD SAFeTY INSTRUCTION PROTeCTION CHILDReN USe OF ROPS AND SeAT BeLT T72O203A T72O204A T72O205A Carefully read all safety instructions Keep children and others away from The Roll Over Protective Struc- given in this manual for your safety. the tractor while operating. ture (ROPS) has been certified to Tempering with any of the safety de- industry and/or government stan-...
  • Page 13 SAFeTY PReCAUTIONS PReCAUTION TO AVOID TIPPING PARK TRACTOR SAFeLY after for any evidence of damage, wear or cracks. In the event of dam- age or alteration, the ROPS must be replaced prior to further operation of the tractor. The seat belt must be worn during machine operation when the ma- T72O206A T72O207A...
  • Page 14 SAFeTY PReCAUTIONS HANDLe FUeL SAFeLY AVOID FIReS STAY CLeAR OF ROTATING SHAFTS KeeP RIDeRS OFF TRACTOR T72O208A T72O209A T72O210A Do not allow riders on the tractor. Handle fuel with care; it is highly Entanglement in rotating shaft can flammable. Do not refuel the tractor cause serious injury or death.
  • Page 15 SAFeTY PReCAUTIONS ALWAYS USe SAFeTY LIGHTS AND PRACTICe SAFe MAINTeNANCe DeVICeS Securely support any tractor ele- ments that must be raised for ser- vice work. Keep all parts in good condition and properly installed. Replace worn or broken parts. Re- place damage/missing decals.
  • Page 16 SAFeTY PReCAUTIONS AVOID HIGH-PReSSURe FLUIDS PReVeNT BATTeRY exPLOSIONS PReVeNT ACID BURNS T72O213A T72O214A T72O215A Escaping fluid under pressure can Keep sparks, lighted matches, and Sulfuric acid in battery electrolyte penetrate the skin causing serious open flame away from the top of is poisonous.
  • Page 17 SAFeTY PReCAUTIONS BATTeRY DISCONNeCT SeRVICe TRACTOR SAFeLY If you spill acid on yourself; 1. Flush your skin with water. 2. Flush your eyes with water for 10-15 minutes. Get medical attention immediately. T74O224A T72O216A 1. When working with your tractors Do not wear a necktie, scarf or electrical components you must loose clothing when you work near...
  • Page 18 SAFeTY PReCAUTIONS WORK IN VeNTILATeD AReA TRACTOR RUNAWAY SAFeTY STARTeR SWITCH 1. The tractor can start even if the 1. Brake operated safety switch is transmission is engaged posi- provided on all tractors which al- tion causing tractor to runaway low the starting system to be- and serious injury to the people come operational only when the...
  • Page 19 SAFeTY PReCAUTIONS eMeRGeNCY exITS SAFeTY PReCAUTIONS WHeN USING THe LOADeR If exit from the cab side doors is blocked (following an accident or ve- hicle overturn) the alternative safety exits are indicated by decals. T74O225A T74O226A Never let anyone get in the loader Do not stand under the lifted load- and use the loader as a workbench.
  • Page 20 SAFeTY PReCAUTIONS T74O227A T74O228A T74O229A When attaching or detaching the Do not allow loader arms or attach- IMPORTANT loader, fix all parts which are con- ment to contact electrical power ROPS (Roll Over Protective  nected to the bucket and boom. The lines.
  • Page 21 SAFeTY PReCAUTIONS T74O230A T74O231A Never carry a big object with the When attaching or detaching the loader unless a proper implement loader, fix all parts which are con- is attached. Keep a carried object nected to the bucket and boom. The low during driving.
  • Page 22 SAFeTY PReCAUTIONS SAFe OPeRATION OF YOUR TRACTOR The manufacturer of your tractor For full details consult the manufac- has made every effort to make it as turer of the chemicals. safe as is humanly possible. To avoid lengthy exposure to noise Beyond this point it is the responsi- ensure that ear protection is worn.
  • Page 23 SAFeTY PReCAUTIONS SAFeTY TIPS DURING MAINTeNANCe 1. At least on a daily basis check all Where a tractor is started in a engine to prevent being scald- oil levels. Water level in the radia- confined area, ensure that the ed by steam or hot water. Do not tor and electrolyte level in the bat- area is well ventilated as exhaust add water in the radiator when...
  • Page 24 SAFeTY PReCAUTIONS MOUNTING AND ReMOVING IMPLeMeNTS 6. Only the driver should ride on 11. When traveling on a public road 1. Ensure that all mounting and re- the tractor with the ROPS ensure that the tractor and driv- moval of implements is done on frame fitted and with the seat er both meet all laws relating to safe flat ground.
  • Page 25 SAFeTY PReCAUTIONS 14. Never remove or modify the ▶THe FOLLOWING PReCAUTIONS 4. Fiberglass canopy does not give ARe SUGGeSTeD TO HeLP PRe- seat belt. any protection. VeNT ACCIDeNTS 15. Never remove, modify or repair 5. To prevent falls, keep steps and A careful operator is the best oper- the ROPS frame.
  • Page 26 SAFeTY PReCAUTIONS pressure to escape before re- <OPeRATING THe TRACTOR> starting circuit. Do not bypass the moving the cap entirely. safety starter switch. Consult your 1. Before starting the tractor apply RK Tractor store if safety- starting the parking brake, place the PTO 4.
  • Page 27 SAFeTY PReCAUTIONS 10. Pull only from the draw bar or 13. Do not leave equipment/imple- 3. Lock the tractor brake pedals to- the lower link drawbar in the ment in the raised position. gether when transporting on down position. Use only a draw- roads to provide proper wheel 14.
  • Page 28 SAFeTY PReCAUTIONS <OPeRATING THe PTO> <DIeSeL FUeL> 9. If the original fuel tank cap is 1. When operating PTO driven 1. Keep the equipment clean and lost, replace it with genuine cap. equipment, shut off the engine properly maintained. A none approved cap may not and wait until the PTO stops be- 2.
  • Page 29 SAFeTY PReCAUTIONS 7. DO’S AND DON’T’S DO’S-FOR BeTTeR PeRFORMANCe DO - Ensure that safety shields are DO - Keep the radiator filled with DO - Shift into low gear when driv- in place and in good condition. clean water and in cold weath- ing down steeps hills.
  • Page 30 SAFeTY PReCAUTIONS DON’TS-FOR SAFe OPeRATION DON’T - Run the engine with the DON’T - Run the engine if it is not air cleaner disconnected. firing on all cylinders. DON’T - Start the tractor in an en- DON’T - Use the independent brakes closed building unless the for making turns on the high- doors and windows are...
  • Page 31 MEMO RK19-영문-01A(안).indd 30 2017-05-19 오전 9:41:34...
  • Page 32 INDEX GENERAL INFORMATION DESCRIPTION OF TRACTOR CONTROLS OPERATION WORK PROCEDURE MAINTENANCE STORAGE AND DISPOSAL TROUBLESHOOTING SAFETY STANDARD FOR FARM WORK APPENDIX INDEX WARRANTY DECAL INFORMATION RK19-영문-01B(가).indd 1 2017-05-18 오후 6:37:56...

  • Page 33: Table Of Contents

    TABLE OF CONTENTS GENERAL INFORMATION WORK PROCEDURE 1. EXTRRIOR VIEW .......... 1-2 1. PRECAUTIONS FOR HANDLING IMPLEMENT ..4-2 2. SAFETY SIGNS ..........1-5 2. GENERAL IMPLEMENT......... 4-2 DESCRIPTION OF TRACTOR MAINTENANCE CONTROLS 1. INSTRUMENT AND SWITCHES ....2-2 1. OPENING COVERS ........5-2 2.
