OPERATION

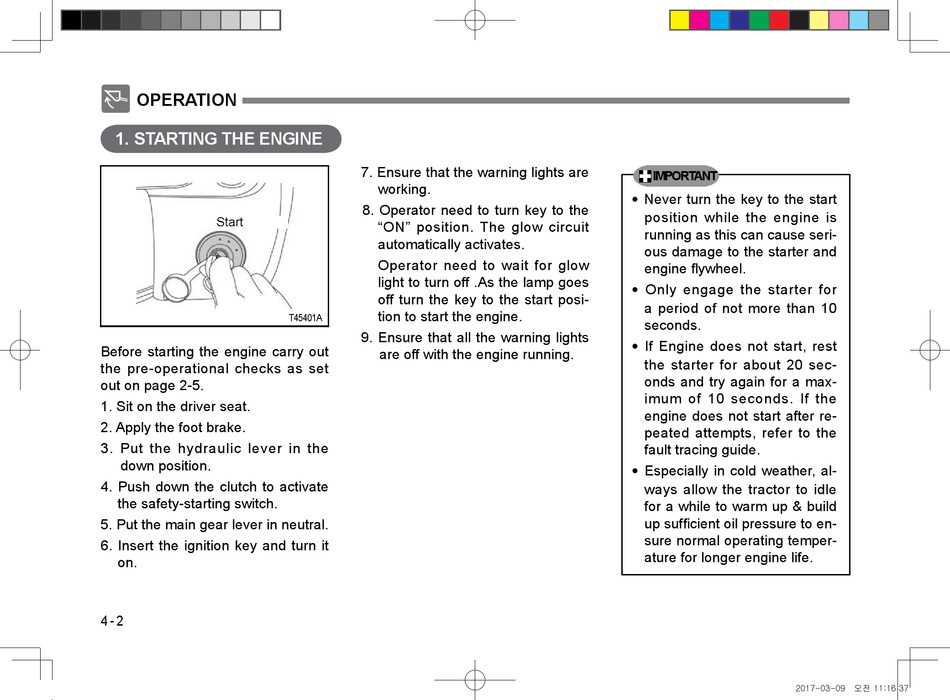

1. STARTING THE ENGINE
Start
Before starting the engine carry out
the pre-operational checks as set
out on page -5.
1. Sit on the driver seat.
. Apply the foot brake.
3. Put the hydraulic lever in the
down position.
4. Push down the clutch to activate
the safety-starting switch.
5. Put the main gear lever in neutral.
6. Insert the ignition key and turn it
on.
4 -
RK55S,55SC-영문판-04.indd 2
7. Ensure that the warning lights are
working.
8. Operator need to turn key to the
"ON" position. The glow circuit
automatically activates.
Operator need to wait for glow
light to turn off .As the lamp goes
off turn the key to the start posi-
tion to start the engine.
T45401A
9. Ensure that all the warning lights
are off with the engine running.
IMPORTANT
Never turn the key to the start
position while the engine is
running as this can cause seri-
ous damage to the starter and
engine flywheel.
Only engage the starter for
a period of not more than 10
seconds.
If Engine does not start, rest
the starter for about 0 sec-
onds and try again for a max-
imum of 10 seconds. If the
engine does not start after re-
peated attempts, refer to the
fault tracing guide.
Especially in cold weather, al-
ways allow the tractor to idle
for a while to warm up & build
up sufficient oil pressure to en-
sure normal operating temper-
ature for longer engine life.
2017-03-09 오전 11:16:37
