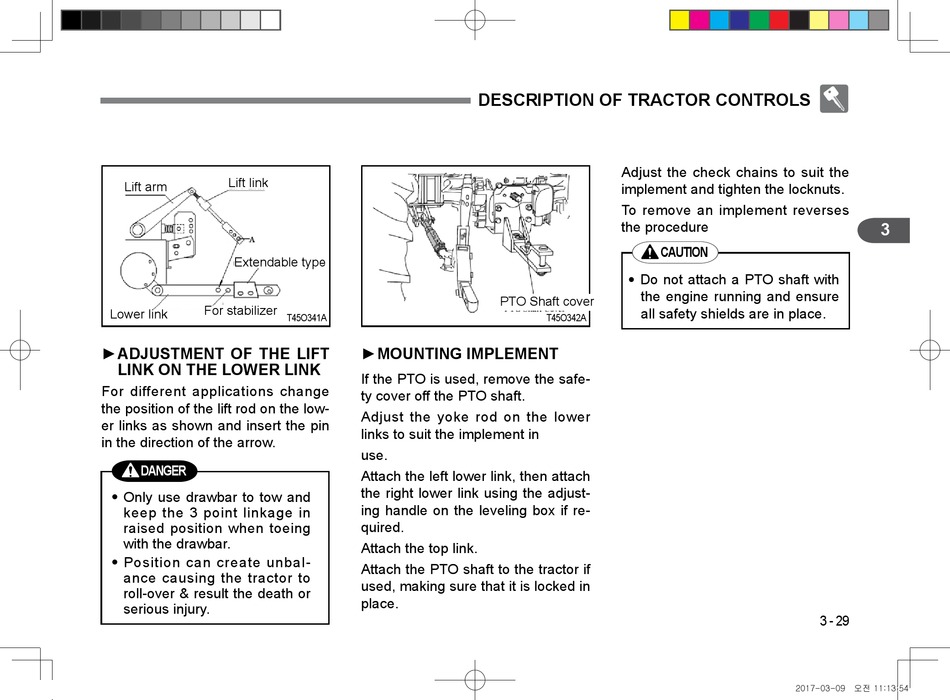

Lift link
Lift arm
Extendable type
For stabilizer
Lower link
► ADJUSTMENT OF THE lIFT
lINK ON THE lOWER lINK
For different applications change
the position of the lift rod on the low-
er links as shown and insert the pin
in the direction of the arrow.
DANGER
•
Only use drawbar to tow and
keep the 3 point linkage in
raised position when toeing
with the drawbar.
•
Position can create unbal-
ance causing the tractor to
roll-over & result the death or
serious injury.
RK55S,55SC-영문판-03.indd 29
T45O341A
► MOUNTING IMPlEMENT
If the PTO is used, remove the safe-
ty cover off the PTO shaft.
Adjust the yoke rod on the lower
links to suit the implement in
use.
Attach the left lower link, then attach
the right lower link using the adjust-
ing handle on the leveling box if re-
quired.
Attach the top link.
Attach the PTO shaft to the tractor if
used, making sure that it is locked in
place.
DESCRIPTION OF TRACTOR CONTROlS
Adjust the check chains to suit the
implement and tighten the locknuts.
To remove an implement reverses
the procedure
Do not attach a PTO shaft with

the engine running and ensure
PTO Shaft cover
all safety shields are in place.
T45O34A
CAUTION
3 -
