DESCRIPTION OF TRACTOR CONTROlS

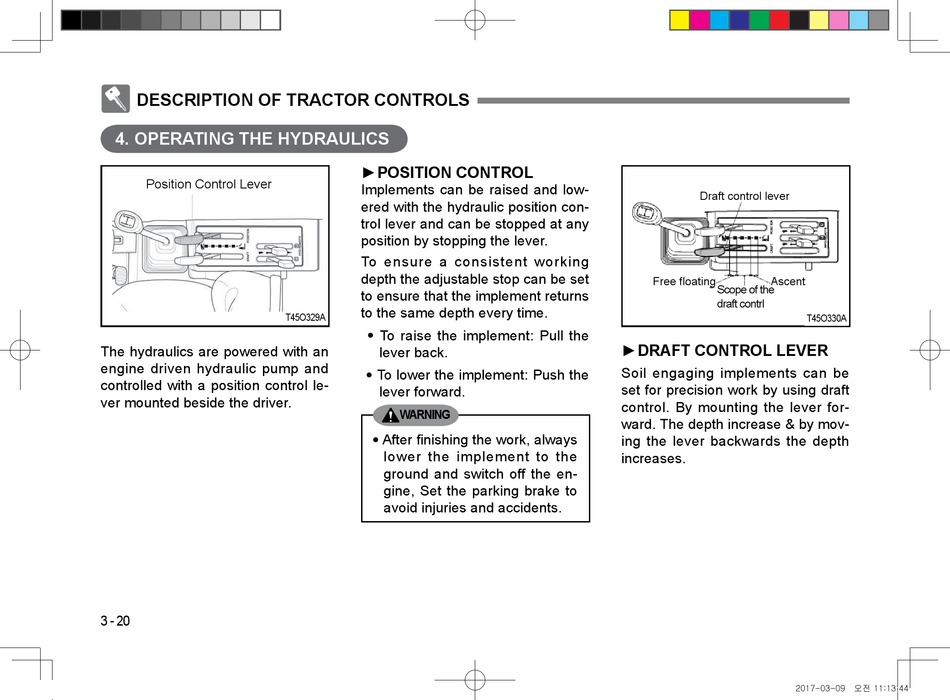

4. OPERATING THE HyDRAUlICS

Position Control Lever
The hydraulics are powered with an
engine driven hydraulic pump and
controlled with a position control le-
ver mounted beside the driver.
3 - 0
RK55S,55SC-영문판-03.indd 20
► POSITION CONTROl
Implements can be raised and low-
ered with the hydraulic position con-
trol lever and can be stopped at any
position by stopping the lever.
To ensure a consistent working
depth the adjustable stop can be set
to ensure that the implement returns
to the same depth every time.
T45O3A
To raise the implement: Pull the

lever back.
To lower the implement: Push the

lever forward.
WARNING
After finishing the work, always

lower the implement to the
ground and switch off the en-
gine, Set the parking brake to
avoid injuries and accidents.
Draft control lever
Free floating Ascent
Scope of the
draft contrl
► DRAFT CONTROl lEVER
Soil engaging implements can be
set for precision work by using draft
control. By mounting the lever for-
ward. The depth increase & by mov-
ing the lever backwards the depth
increases.
2017-03-09 오전 11:13:44
T45O330A
