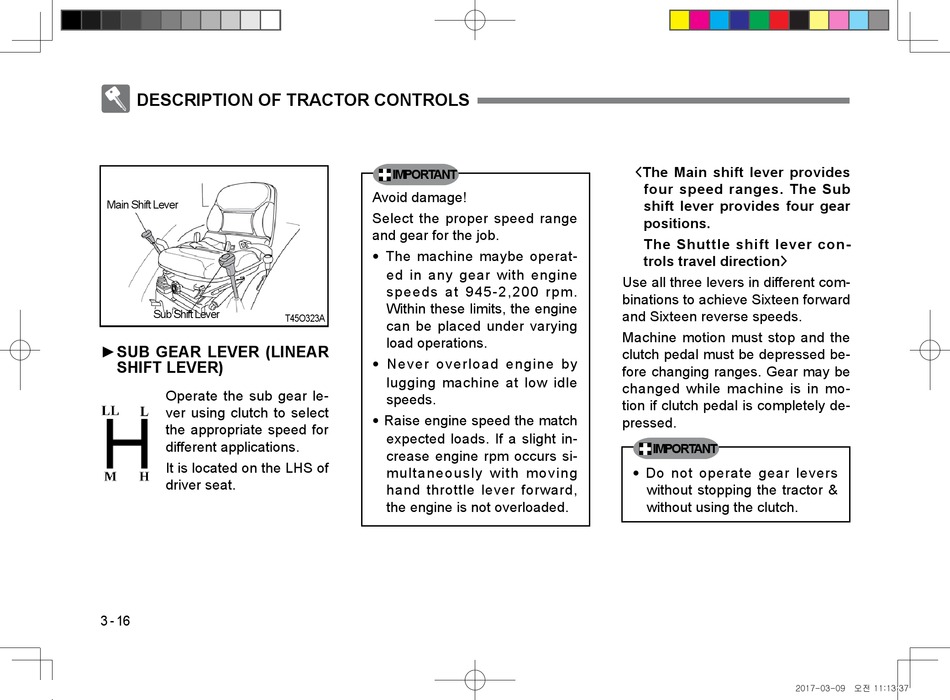

Rural King RK55 Shuttle Shift Series Operator's Manual page 61

DESCRIPTION OF TRACTOR CONTROlS
Main Shift Lever
Sub Shift Lever
► SUB GEAR lEVER (lINEAR
SHIFT lEVER)
Operate the sub gear le-
ver using clutch to select
the appropriate speed for
different applications.
It is located on the LHS of
driver seat.
3 - 16
RK55S,55SC-영문판-03.indd 16
IMPORTANT
Avoid damage!
Select the proper speed range
and gear for the job.
The machine maybe operat-

ed in any gear with engine
speeds at 45-,00 rpm.
Within these limits, the engine
T45O33A
can be placed under varying
load operations.
Never overload engine by

lugging machine at low idle
speeds.
Raise engine speed the match

expected loads. If a slight in-
crease engine rpm occurs si-
multaneously with moving
hand throttle lever forward,
the engine is not overloaded.
<The Main shift lever provides
four speed ranges. The Sub
shift lever provides four gear
positions.
The Shuttle shift lever con-
trols travel direction >
Use all three levers in different com-
binations to achieve Sixteen forward
and Sixteen reverse speeds.
Machine motion must stop and the
clutch pedal must be depressed be-
fore changing ranges. Gear may be
changed while machine is in mo-
tion if clutch pedal is completely de-
pressed.
IMPORTANT
Do not operate gear levers

without stopping the tractor &
without using the clutch.
