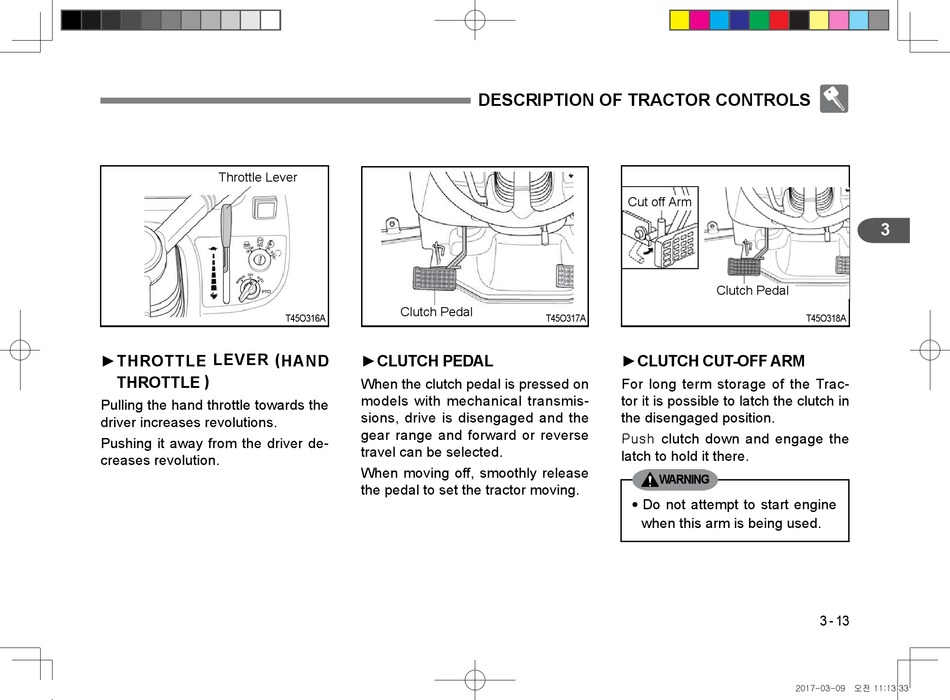

Rural King RK55 Shuttle Shift Series Operator's Manual page 58

Throttle Lever
THROTTlE lEVER ( HAND
►
THROTTlE )
Pulling the hand throttle towards the
driver increases revolutions.
Pushing it away from the driver de-
creases revolution.
RK55S,55SC-영문판-03.indd 13
Clutch Pedal
T45O316A
► ClUTCH PEDAl
When the clutch pedal is pressed on
models with mechanical transmis-
sions, drive is disengaged and the
gear range and forward or reverse
travel can be selected.
When moving off, smoothly release
the pedal to set the tractor moving.
DESCRIPTION OF TRACTOR CONTROlS
Cut off Arm
T45O317A
► ClUTCH CUT-OFF ARM
For long term storage of the Trac-
tor it is possible to latch the clutch in
the disengaged position.
Push clutch down and engage the
latch to hold it there.
Do not attempt to start engine

when this arm is being used.
Clutch Pedal
T45O318A
WARNING
3 - 13
