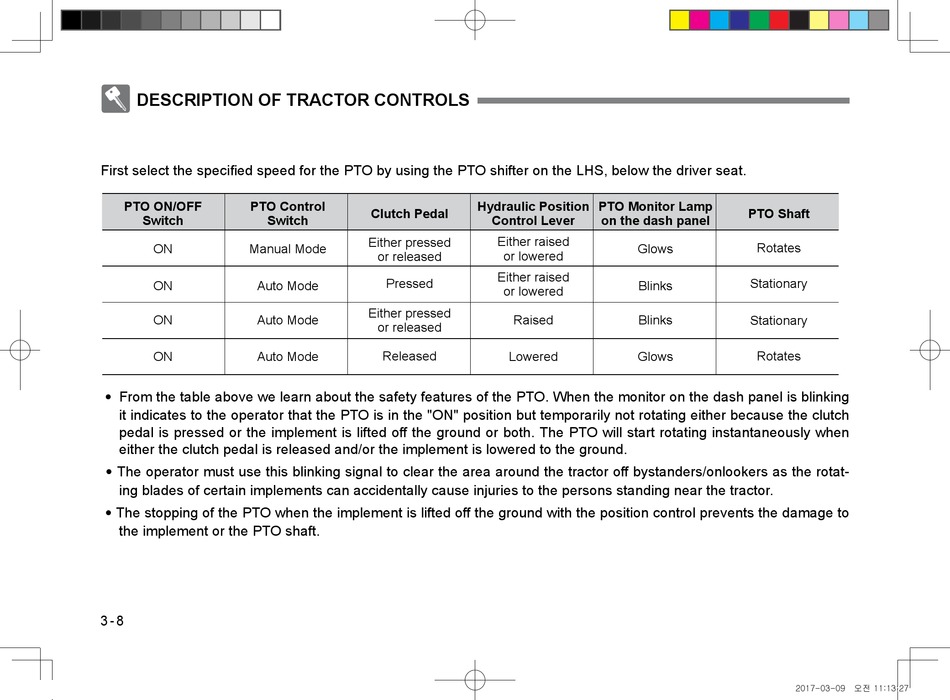

DESCRIPTION OF TRACTOR CONTROlS
First select the specified speed for the PTO by using the PTO shifter on the LHS, below the driver seat.
PTO ON/OFF
Switch
ON
ON
ON
ON
From the table above we learn about the safety features of the PTO. When the monitor on the dash panel is blinking

it indicates to the operator that the PTO is in the "ON" position but temporarily not rotating either because the clutch
pedal is pressed or the implement is lifted off the ground or both. The PTO will start rotating instantaneously when
either the clutch pedal is released and/or the implement is lowered to the ground.
The operator must use this blinking signal to clear the area around the tractor off bystanders/onlookers as the rotat-

ing blades of certain implements can accidentally cause injuries to the persons standing near the tractor.
The stopping of the PTO when the implement is lifted off the ground with the position control prevents the damage to

the implement or the PTO shaft.
3 - 8
RK55S,55SC-영문판-03.indd 8
PTO Control
Clutch Pedal
Switch
Either pressed
Manual Mode
or released
Pressed
Auto Mode
Either pressed
Auto Mode
or released
Released
Auto Mode
Hydraulic Position PTO Monitor lamp
Control lever on the dash panel
Either raised
Glows
or lowered
Either raised
Blinks
or lowered
Raised Blinks
Lowered Glows
PTO Shaft
Rotates
Stationary
Stationary
Rotates
