STOP
OFF
►
MAIN SWITCH (KEy SWITCH)
OFF - The key can be inserted or
removed.
ON - The electric circuit is on &
preheat function
START - The starter motor is en-
gaged. When the key is
released it will return to
the ON position.
RK55S,55SC-영문판-03.indd 3
Turn signal switch
T45O30A
►
HEAD lAMP, TURN SIGNAl
SWITCH AND HORN
<HEAD lAMP SWITCH>
High and low beam are operated On
the main switch
Position 1. Low beam
Position . High beam
< TURN SIGNAl SWITCH >
Pull the turn signal lever down to
signal a left turn.
Push the turn signal lever up to sig-
nal a right turn.
< HORN >
Push the Red button.

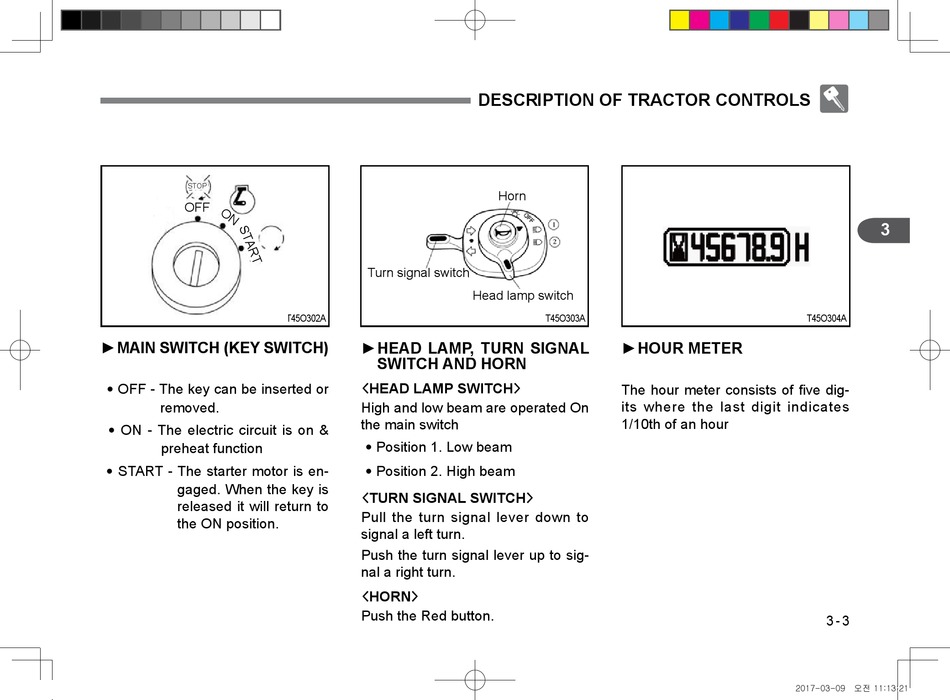

DESCRIPTION OF TRACTOR CONTROlS
Horn
Head lamp switch
T45O303A
►
HOUR METER
The hour meter consists of five dig-
its where the last digit indicates
1/10th of an hour
3
T45O304A
3 - 3
