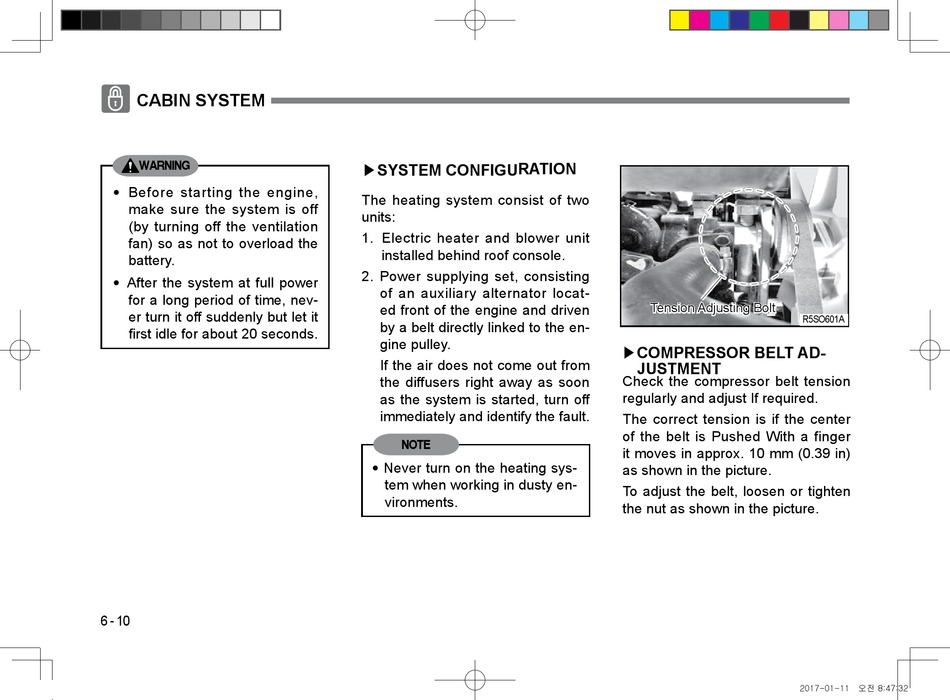

Rural King RK55 Shuttle Shift Series Operator's Manual page 127

CABIN SYSTEM
WARNING
Before starting the engine,

make sure the system is off
(by turning off the ventilation
fan) so as not to overload the
battery.
After the system at full power

for a long period of time, nev-
er turn it off suddenly but let it
first idle for about 20 seconds.
6 - 10
RK55S,55SC-영문판-06.indd 10
▶ S YSTEM CONFIgU RATION
The heating system consist of two
units:
1. Electric heater and blower unit
installed behind roof console.
2. Power supplying set, consisting
of an auxiliary alternator locat-
ed front of the engine and driven
by a belt directly linked to the en-
gine pulley.
If the air does not come out from
the diffusers right away as soon
as the system is started, turn off
immediately and identify the fault.
NOTE
Never turn on the heating sys-

tem when working in dusty en-
vironments.
Tension Adjusting Bolt
▶  C OMpRESSOR BElT Ad-
JUSTMENT
Check the compressor belt tension
regularly and adjust If required.
The correct tension is if the center
of the belt is Pushed With a finger
it moves in approx. 10 mm (0.39 in)
as shown in the picture.
To adjust the belt, loosen or tighten
the nut as shown in the picture.
