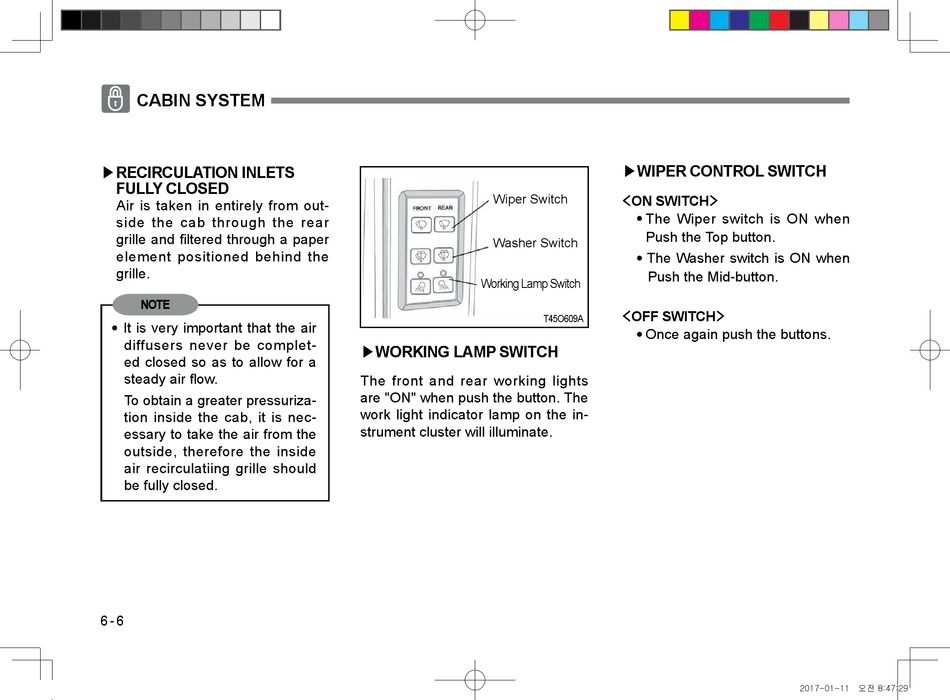

Rural King RK55 Shuttle Shift Series Operator's Manual page 123

CABIN SYSTEM
▶ RECIRCUlATION INlETS
FUllY ClOSEd
Air is taken in entirely from out-
side the cab through the rear
grille and filtered through a paper
element positioned behind the
grille.
NOTE
It is very important that the air

diffusers never be complet-
ed closed so as to allow for a
steady air flow.
To obtain a greater pressuriza-
tion inside the cab, it is nec-
essary to take the air from the
outside, therefore the inside
air recirculatiing grille should
be fully closed.
6 - 6
RK55S,55SC-영문판-06.indd 6
Wiper Switch
Washer Switch
Working Lamp Switch
▶wORkINg lAMp SwITCH
The front and rear working lights
are "ON" when push the button. The
work light indicator lamp on the in-
strument cluster will illuminate.
▶wIpER CONTROl SwITCH
<ON SwITCH>
The Wiper switch is ON when

Push the Top button.
The Washer switch is ON when

Push the Mid-button.
<OFF SwITCH>
T45O609A
Once again push the buttons.

