- Page 1 Bogobit Standard-Bremsmodul – Manual bogobit Standard-Bremsmodul · 2016-08-01 Seite 1 / 7...

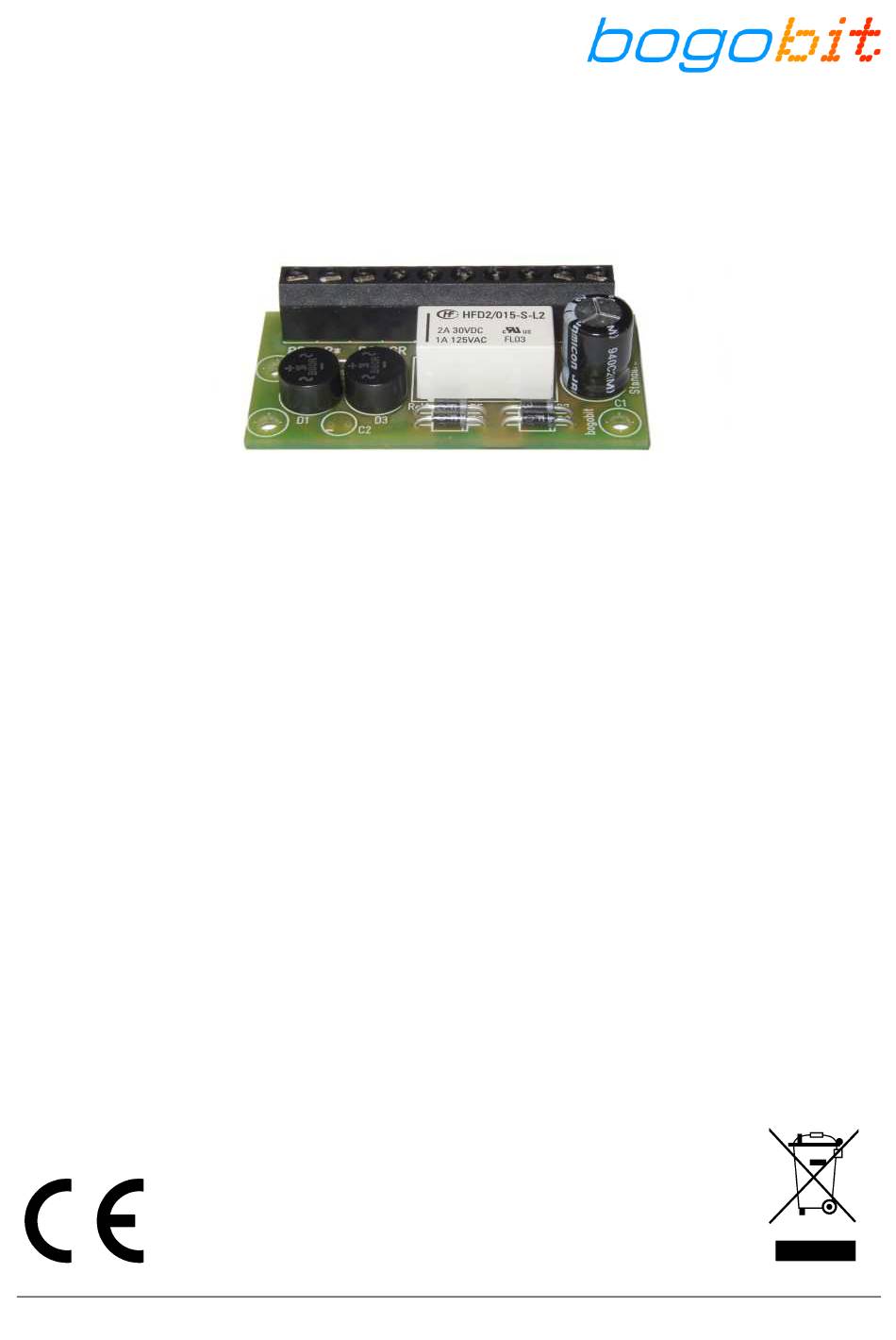

- Page 2 All brand, product and company names used herein may be trademarks of their respective owners. 2 Intended Use The Bogobit Standard-Bremsmodul is a brake module for digitally controlled model railways. The module generates a “brake voltage”. This lets locos brake smoothly if they are equipped with a suitable decoder.
- Page 3 4 Function of the bogobit Bremsmodul 4.1 General Function The Bogobit Bremsmodul Classic is a brake module for digitally controlled model railways. The module generates a “brake voltage”. This brake voltage, when applied to the track, lets locos brake smoothly if they are equipped with a suitable decoder. It can be used on model layouts with center stud tracks (Märklin H0).
- Page 4 (or a transition track section alternatively) after the brake section. The Bogobit Standard-Bremsmodul has the following features: 1. The brake module can be connected in parallel to a turnout or a signal (with double solenoid drive).
- Page 5 The product does not require maintenance. If cleaning is necessary, the product should only be cleaned with a dry cloth or a brush to remove dust etc. Do not use aggressive cleaning agents or chemical solutions. bogobit Standard-Bremsmodul · 2016-08-01 Seite 5 / 7...
- Page 6 Under no circumstances apply a control voltage to both control inputs simultaneously. 8 Further Notes 8.1 CE Marking The following declaration only applies to products that are manufactured by Bogobit. The product Bogobit Standard-Bremsmodul complies with the following directives: EU Directive 2014/30/EU on electromagnetic compatibility •...
- Page 7 89192 Rammingen Germany E-Mail: anfrage@bogobit.de 9 References The following documents have further information on putting into service: Wiring schemes (German: Anschlussbeispiele) Bogobit Standard-Bremsmodul, see: http://bogobit.de/bremsmodul/standard chapter “Weiterführende Informationen” Website on recommended decoder settings: http://bogobit.de/bremsmodul/decodereinstellung bogobit Standard-Bremsmodul · 2016-08-01 Seite 7 / 7...
