Protection Cover for multimedia projector:
VIZBOX Slim
VIZBOX Slim 54-80
VIZBOX Slim 27-116
LIST OF ITEMS:
enclosure
adjustable arm with mount
mounting set
installation manual
installation template

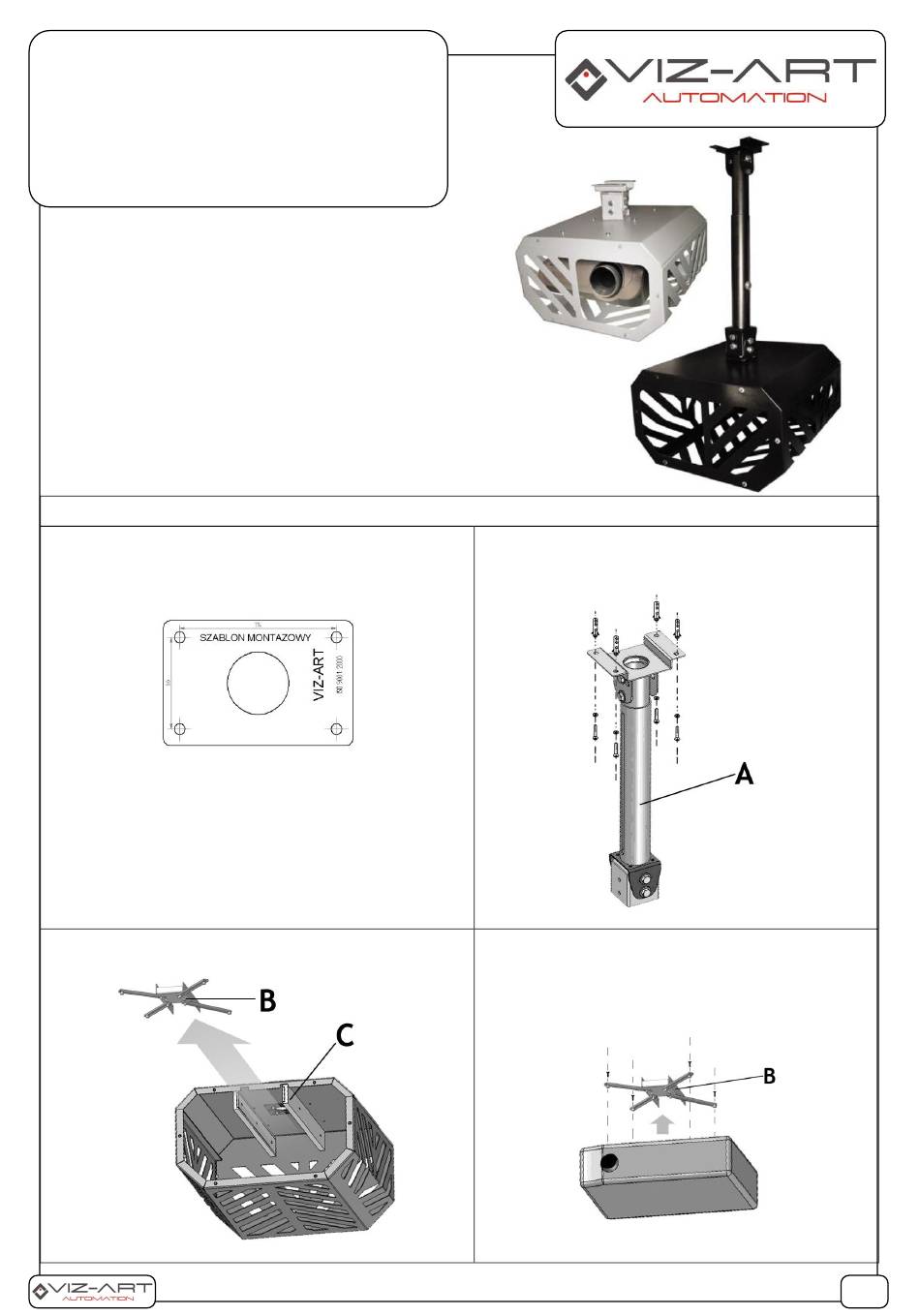

1. Installation:
A. Prepare an installation place and mark mounting
points using installation template as below:
C. Remove element B from guide C from protection
cover.
B. Install element A to the ceiling. Use the selected
pins and screws from the assembly kit.
D. Install projector on projector mount B.
Warning! To connect the mount with the projector, select
the appropriate screws from the mounting kit according to
the recommendations of the projector manufacturer.
1/2
