Summary of Contents for ElectrIQ Eiq-LPB20QC

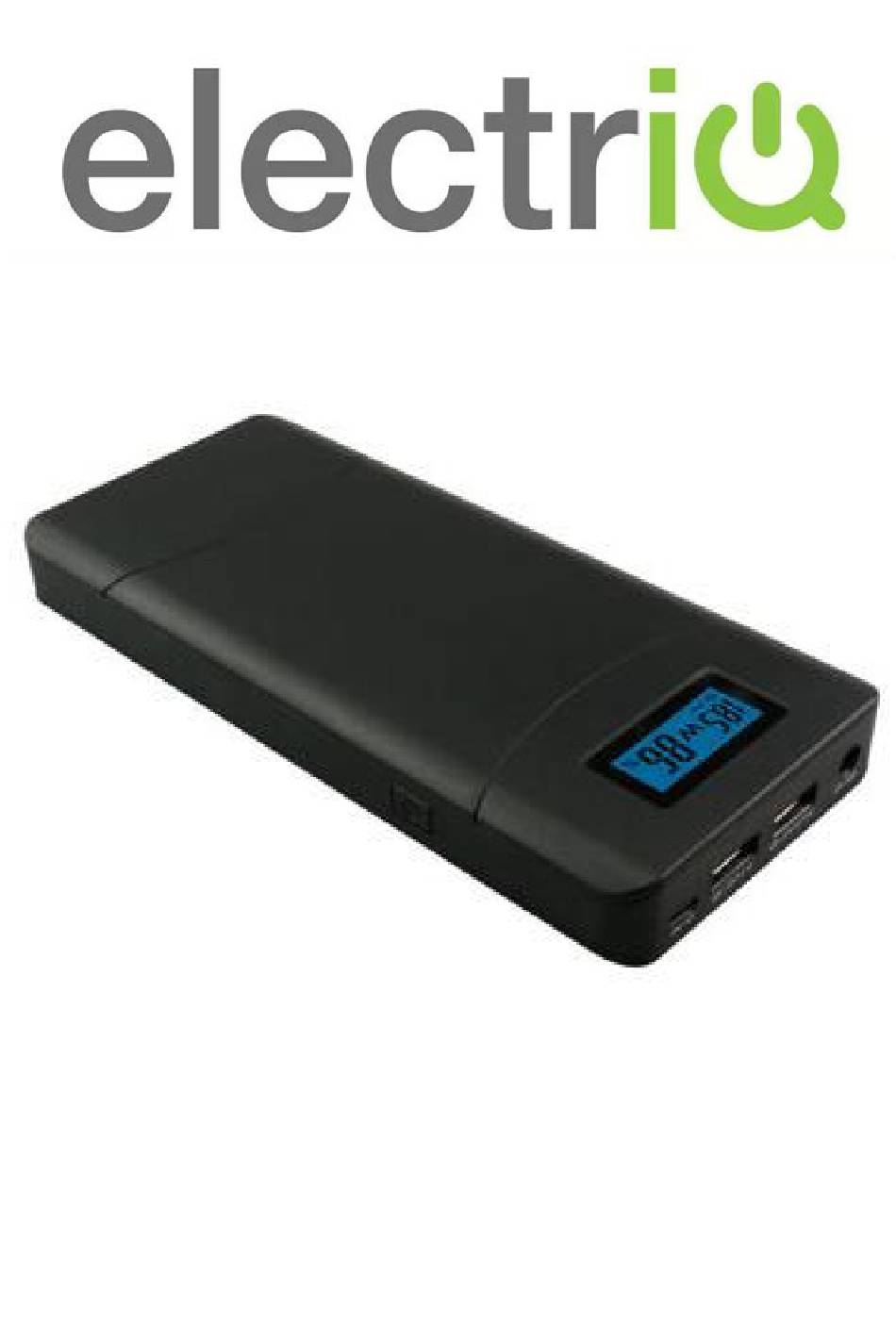

- Page 1 INSTRUCTION MANUAL 20,100 mAH MULTIFUNCTION POWERBANK eiQ-LPB20QC...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS INTRODUCTION DIAGRAM PARTS SUPPLIED CHARGING THE POWERBANK USING THE POWERBANK TO CHARGE YOUR DEVICES TURNING ON THE POWERBANK STANDARD USB DEVICE CHARGING TURNING OFF THE POWERBANK NOTEBOOK CHARGING CAR CHARGING SPECIFICATION ERROR CODES SUPPORT... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please ensure that all safety instructions are read and understood before use of the product. The manual should be retained for future reference. Do not position the unit where it would be subjected to extreme moisture, temperature or dust. ... -
Page 4: Introduction
INTRODUCTION This power bank will charge all kinds of USB products, such as smartphones, tablets, MP3/MP4 players, and digital cameras. The Quick Charge 3.0 USB port supports 3.8V-12V/18W (max). The power bank also contains an output port for charging 12- 24V notebooks. -
Page 5: Charging The Powerbank
CHARGING THE POWERBANK Before using the power bank for the first time, please ensure it has been fully charged. The power bank is supplied with a micro USB cable. This can be used to charge the power bank using a USB plug adaptor (not supplied), or through the USB port of a computer. - Page 6 OPTIONAL ACCESSORY: For fast charging an optional 16V power adaptor is also available from the same retailer as the power bank under reference: eiQ-LPB20QC16CPSU This power supply connects to the same port as the car charging lead below. CAR CHARGING Alternatively the car charging cable can be connected to the Notebook Port, and the car will supply power to the power bank.
-
Page 7: Using The Powerbank To Charge Your Devices
mode must be changed using the button on the side of the power bank before it can be charged. Depending on the output voltage of the car, it may not be possible to charge the battery to 100% using the car charger. USING THE POWERBANK TO CHARGE YOUR DEVICES TURNING ON THE POWERBANK Press the power button on the side of the power bank to turn the... - Page 8 The power bank contains an intelligent detection function, and when the power bank detects it has finished charging, it will enter sleep mode to conserve energy before powering off automatically.
-
Page 9: Notebook Charging
NOTEBOOK CHARGING The power bank can also charge a laptop using the supplied notebook cable and the appropriate notebook connector. Before connecting your laptop, follow the guide below to ensure the output voltage of the power bank is set correctly. The maximum output power of the power bank is 65W, and the maximum continuous power is 50W. -
Page 10: Car Charging
CAR CHARGING Before attempting to charge your car, please ensure the power bank is charged to a suitable level (We would advise above 70%). Change the output voltage of the notebook port to “PB” following the information on the previous page. To charge your car, ensure your ignition is on, so that the cigarette lighter socket is activated (either twist your key to the on position, or if your car has a Start/Stop button, press the... -
Page 11: Specification
SPECIFICATION Model No. Eiq-LPB20QC Capacity 20100mahAh（73WH） Size 174* 78* 21.5（MM） About 420g Cell type Lithium Battery ICR18650 Micro USB Port：5V-12V/18W（MAX） Input Notebook Port：13-20V /3A（MAX） USB Port 1：5V/2.1A USB Port 2：QC3.0 3.8V-12V / 18W(MAX) Output Notebook Port：12-24V/65W（MAX） (Continuous power around 50W) -
Page 12: Error Codes
NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. electriQ UK Support www.electriQ.co.uk/support 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
