Promotech Rail Bull Operator's Manual

Welding and cutting carriage
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

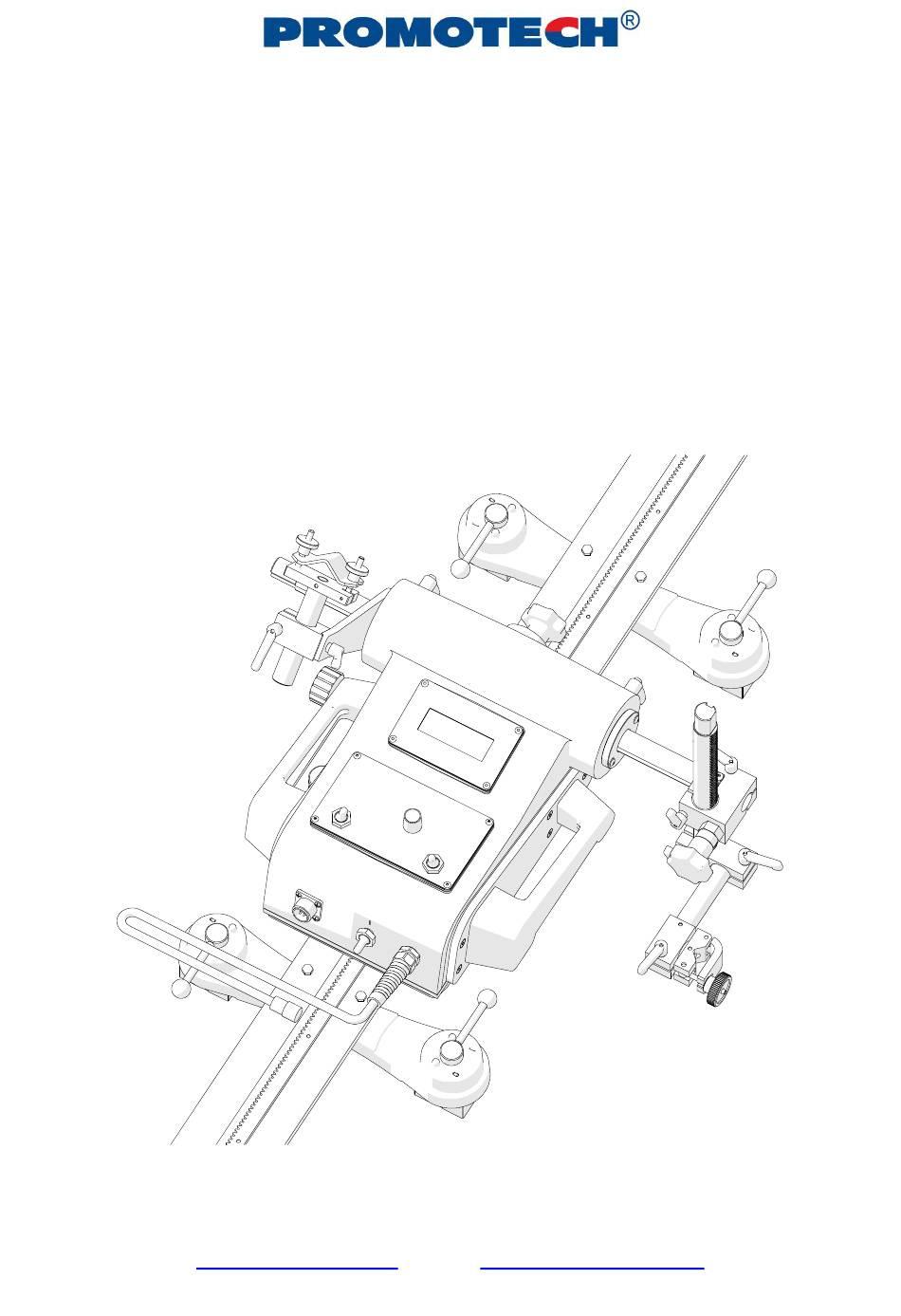

OPERATOR'S MANUAL
R
a
i
l
B
u
l
l
R
a
i
l
B
u
l
l
WELDING AND CUTTING
CARRIAGE
ul. Elewatorska 23/1, 15-620 Białystok, Poland
Phone: +48 85 678-34-00, Fax: +48 85 651-15-31
www.promotech.eu
e-mail:
office@promotech.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rail Bull and is the answer not in the manual?

Questions and answers

Gujju Aravind
May 14, 2025

promotech rail bull machine's display showing that error #3. so, i was checked the pcb outcome supply voltage of drive motor and it shows nothing voltage of dc. so, can you please help me to sort out this problem.

0
1 comments:
Mr. Anderson
May 21, 2025

Error #3 on the Promotech Rail Bull machine indicates that power is not supplied to the main motor. If the PCB shows no voltage supply to the drive motor, the recommended solution is to contact the service center for inspection and repair.

This answer is automatically generated

0

Related Manuals for Promotech Rail Bull

Summary of Contents for Promotech Rail Bull

  • Page 1 OPERATOR’S MANUAL WELDING AND CUTTING CARRIAGE ul. Elewatorska 23/1, 15-620 Białystok, Poland Phone: +48 85 678-34-00, Fax: +48 85 651-15-31 www.promotech.eu e-mail: office@promotech.eu...

  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3 1.1. Application ......................... 3 1.2. Technical data......................3 1.3. Design ........................5 1.4. Equipment included ....................6 2. SAFETY PRECAUTIONS ....................7 3. STARTUP AND OPERATION ................... 9 3.1. Assembling the track ....................9 3.2.

  • Page 3: General Information

    1. GENERAL INFORMATION 1.1. Application The Rail Bull welding and cutting carriage is a track carriage designed to produce butt and fillet welds by using MIG/MAG torches with the handle diameter of 16–22 mm (0.63–0.87’’), and can cut steel by using oxy-fuel or plasma torches. The carriage can work in the following welding positions: PA/1F/1G, PB/2F, PC/2G, PD/4F, PE/4G, and PG/3F/3G.
  • Page 4 Rail Bull 484 mm (19.1’’) This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 5: Design

    Rail Bull 1.3. Design The Rail Bull carriage consists of a chassis, a drive system, a controller, a 540 mm (21’’) geared rack, a cable anchor, a slide, a 300 mm (12’’) vertical geared rack, and a torch holder. A cam mechanism enables the carriage to be installed on a track, onto which dual magnetic units may be attached to allow the track to be fixed to the surface.

  • Page 6: Equipment Included

    Arc ignition switch (TEST / O / I) Travel direction switch (forward / O / backward) Fig. 2. View of the control panel 1.4. Equipment included The Rail Bull is supplied including the following elements. Carriage 1 unit Metal box 1 unit 540 mm (21’’) geared rack...

  • Page 7: Safety Precautions

    Protect the carriage by attaching a chain to a carrying handle. The chains must not be loose. 22. Do not stay below the carriage or the track placed at heights. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 8 29. Never leave the carriage unattended during operation. 30. Remove from the worksite and store in a secure and dry location when not in use. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 9: Startup And Operation

    (4) to remove the gap (5) between the gear racks, and then tighten the leftmost screw and the rightmost screw of each gear rack (2). This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 10 Rail Bull Fig. 4. Removing the gap between the gear racks of a semi-flexible track This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 11: Assembling The Holder

    300 mm vertical geared rack 540 mm geared rack Slide Clamping block Torch holder Fig. 5. Sample methods of assembling the vertical geared rack with the torch holder This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 12: Positioning

    (2), and then set the carriage onto the track (3) so that the back rollers are placed in the groove (4). Fig. 6. Positioning the carriage on the track This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 13: Connecting To The Welding Or Plasma Cutting Circuits

    To make sure that the arc ignition cable is connected correctly, turn on the power of the carriage, and set the arc ignition switch to the position TEST, which should enable the arc for a while. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 14: Adapting For Cutting

    Fig. 8. Installing a cutting torch holder, gas manifold, and arc ignition cable For plasma-cutting, use the arc ignition cable to connect the carriage to the cutting circuits as shown in Fig. 7. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 15: Operating

    To stop the motion, set the travel direction switch to the position ‘O’. After the work is finished, turn off the power with the power switch and unplug the carriage from the power source. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 16: Changing The Unit Of Measure

    The 2.5 mm hex wrench needed to unscrew the control panel is not included in standard equipment. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 17: Troubleshooting

    Malfunction of the main motor Contact service center for encoder or the controller. inspection and repair. Malfunction of the encoder board. Contact service center for inspection and repair. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 18: Maintenance

    1. Check whether the knob and the switches operate as intended. Replace if loose or damaged. 2. Inspect cables, cords, and hoses. Replace if damaged. 3. Tighten screws if loose. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 19: Accessories

    5.3. Gear rack adjustment tool Allows removing the clearance between the gear racks of two semi-flexible rails placed on a curvature. Part number: PKT-0341-13-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 20: Dual Magnetic Unit

    Attach the unit to a rigid rail as shown in the right figure: use the 5 mm hex wrench to tighten the unit with M6x40 screws and 6.4 mm washers. M6x16 M6x20 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 21: Narrow Magnetic Unit

    Attach the unit to a rigid rail as shown in the right figure: use the 5 mm hex wrench to tighten the unit with M6x40 screws and 6.4 mm washers. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 22: Angle-Adjustable Dual Magnetic Unit

    720 N. Install the unit in the same way as the dual magnetic unit is installed. Part number: ZSP-0475-85-00-00-0 Part number (bracket): DYS-0482-19-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 23: Spacing-Adjustable Dual Magnetic Unit

    To attach the support to a semi-flexible rail, use the 5 mm hex wrench, M6x16 screws, and 6.4 mm washers. Part number: WSP-0523-12-01-00-1 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 24: Geared Rack

    RAM-0475-07-03-00-0 (700 mm, 28’’) RAM-0475-23-00-00-0 (1000 mm, 39’’) Levers securing the geared rack position 5.10. Transport attachment Allows transporting the wire feeder. Part number: PEP-0482-18-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 25: Cutting Torch Holder

    2 mm hex wrench to adjust the adjusting screws. Set screw Adjusting screws Fixing screws Part number: UCW-0475-08-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 26 The holder allows adjustment of the vertical position of the torch by using the knob and precise adjustment of the angle. Part number (30 mm): UCW-0475-59-00-00-0 Part number (35 mm): UCW-0475-42-00-00-1 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 27: Rod (For Cutting)

    2/2 manifold with cut-off valve 3/8’’ LH (metric): 1/4’’ RH RZD-0475-65-00-00-0 3/3 manifold with cut-off valve 2/3 manifold with cut-off valve (metric): (metric): RZD-0475-72-00-00-0 RZD-0475-66-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 28 9/16’’ LH 9/16’’ RH 2/2 manifold with cut-off valve (imperial): 3/3 manifold with cut-off valve 2/3 manifold with cut-off valve RZD-0475-70-00-00-0 (imperial): (imperial): RZD-0475-71-00-00-0 RZD-0475-69-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 29: Vacuum Track Fixing System

    Part number (vacuum pump with safety reservoir): AGR-0541-10-10-00-0 (115 V UK) AGR-0541-10-20-00-0 (230 V CEE) Information about the other elements of the system are included in a separate manual. This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 30: Mm Torch Clamp

    Use the 4 mm hex wrench to tighten the torch in the clip. Part number: ZCS-0476-06-01-00-0 5.17. 22–35 mm torch clamp Allows using a torch with the handle diameter of 22–35 mm (0.87–1.38’’). Part number: ZRZ-0466-19-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 31: Short Rod

    Part number: WLK-0466-04-10-00-0 5.20. Short rod torch holder with clamp Allows using a torch with the handle diameter of 16–22 mm (0.63–0.87’’). Part number: UCW-0476-20-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 32: Short Rod Torch Holder With Clip

    Part number: UCW-0476-06-00-00-0 5.23. Long rod torch holder with clamp Allows using a torch with the handle diameter of 16–22 mm (0.63–0.87’’). Part number: UCW-0466-04-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 33: Long Rod Torch Holder With Clip

    The holder allows using a torch with the handle diameter of 16–22 mm (0.63–0.87’’). Use the 4 mm hex wrench to tighten the torch in the clip. Part number: UCW-0466-22-00-00-0 This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 34: Wiring Diagram

    Rail Bull 6. WIRING DIAGRAM This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 35: Declaration Of Conformity

     EN 50144-1  EN 60974-10 and satisfies safety regulations of the guidelines: 2004/108/EC, 2006/95/EC, 2006/42/EC. Białystok, 21 January 2013 ___________________________ Marek Siergiej This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 36: Quality Certificate

    (voltage 1000 V, frequency 50 Hz) Date Ω Resistance of the protective circuit ..........Signature Quality control ..........Adjustments, inspections Quality control ..........This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.

  • Page 37: Warranty Card

    WARRANTY CARD No..................in the name of Manufacturer warrants the Rail Bull Welding Carriage to be free of defects in material and workmanship under normal use for a period of 12 months from the date of sale. This warranty does not cover guiding rollers as well as damage or wear that arise from misuse, accident, tempering or any other causes not related to defects in workmanship or material.
