Chapter 5 - NetCon - establish the connections

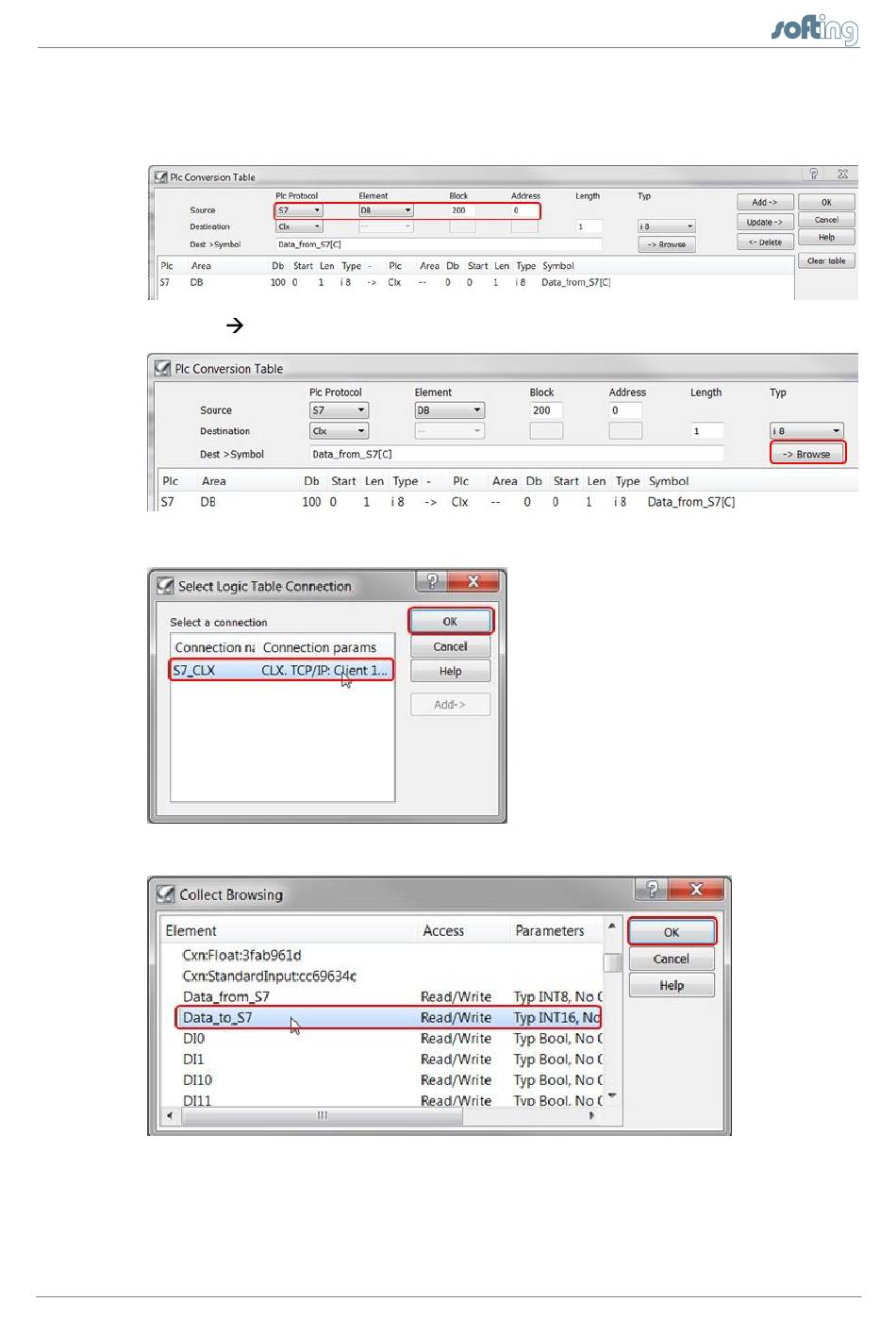

14. Now map the S7 data area used to read from the ControlLogix tag. We used
P#DB200.DBX0.0 BYTE 1 for the ADDR_1 parameter in our GET instruction, so in
the echochange we specify DB200 with 0 offset as follows:
15. Click on [
16. Select the connection you created and click [OK].
17. Select the tag and click [OK].
22
Browse] to look for the respective ControlLogix tag.
echochange - How to...
