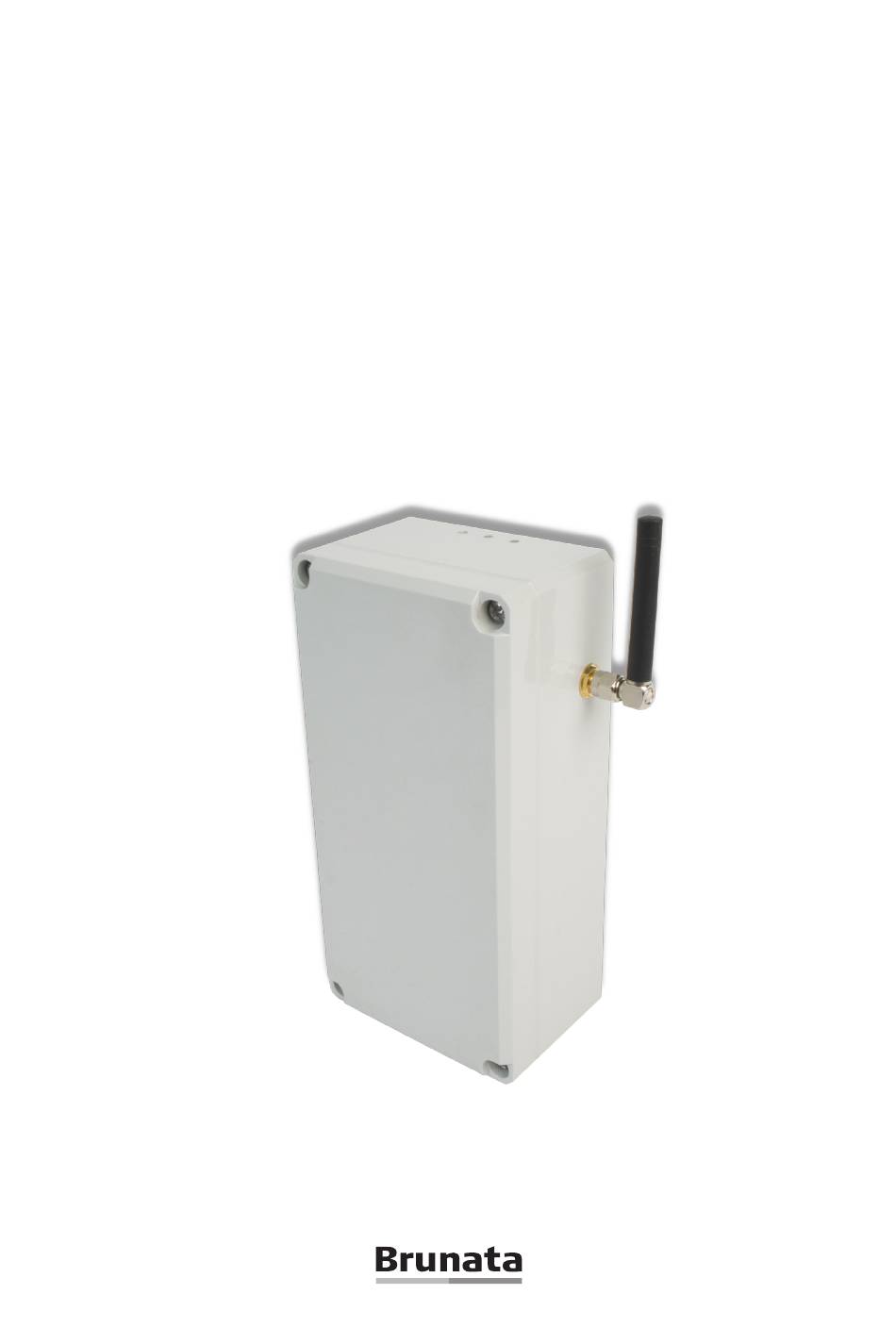

  • Page 1 BrunataNet BoxGPRS with battery User and installation manual...

  • Page 2: Table Of Contents

    5.1 What does the control consist of? ..............13 5.2 Has the GPRS-box found all the receivers? ............13 5.3 Can the GPRS-box send data to the Brunata database? ........13 5.4 Registration of components in the network............13...

  • Page 3: Introduction

    • GPRS-box With a RM485FM-radio receiver. • Power-supply • RM485FM-radio receiver. • Brunata RS485-net cable. • Connection box 1.3 Tools It is recommended to use a KRONE LSA Terminal Tool (Brunata number 06-1040-C) to install the cables into the LSA-connectors.

  • Page 4: Text Message Commands

    1.4 Text message commands There are several commands to the GPRS-box, which can be sent to the GPRS-box by text message. The text message must consist of the following 3 parameters divided by a space: <Password> <Text message command> <value> If you leave out <value>...
  • Page 5 Diodes Push-button ON/OFF Status-diodes Button Description If the GPRS-box is in sleep-mode the green Short push diode start to flash Turned off Long push Turns on the GPRS-box Turned on Long push Turns off the GPRS-box Green status-diode Description Flashing Searching for GSM-net 1 short flash followed by a long pause Has found GSM-net...

  • Page 6: An Example Of A Program Flow In The Gprs-Box

    1.6 An example of a program flow In the GPRS-box The GPRS-box has just been turned on. Retrieving data from the radio transmitters. Waiting until data again Sending data to must be retrieved from WebMon. the RS485 net. ERROR The GPRS-box could not send data to the Oracle server.

  • Page 7: Sim-Card

    2.2 Montering af SIM-kort Brunata a/s can not be held liable for theft and misuse of the SIM-card. Enheden kan bestilles med SIM-kort monteret ved levering. Kontroller, at kortet er sat i. Brunata A/S kan ikke gøres ansvarlig for tyveri og misbrug af SIM-kort.
  • Page 8 SMS-Command SMS-answer dokfaw gprs_apn office.vodafone.nl gprs_username Vodafone gprs_password Vodafone Getting the GPRS-box to send data to the Brunata server by following SMS-com- mand: SMS-Command SMS-answer dokfaw uploadnow When the GPRS-box has send data to the server please control, that the GPRS compo-...

  • Page 9: Installation Of The Gprs-Box

    3. Installation of the GPRS-box 3.1 Placement of the GPRS-box The GPRS-box must be installed at a place where there is at good connection to the GSM-net. This is achieved by observing the following rules: • The box ought to be placed as far away from a corner as possible.

  • Page 10: Fitting A Gprs-Box To A Wall

    3.2 Fitting a GPRS-box to a wall. Underneath the cover of the GPRS-box there are 4 fitting holes through which the GPRS-box can be fitted to a level wall. Fitting holes...

  • Page 11: Battery

    4. Battery 4.1 Battery recharging The battery is recharged by attaching the charger to the plug at one side of the GPRS- box. The GPRS-box can not receive data while recharging. If you want to use the GPRS-box while the battery is recharging you can by an extra battery.

  • Page 12: Battery Charger

    In order to change the battery; take the lid of the GPRS-box and switch the battery. After recharging and connecting the battery to the GPRS-box, the GPRS-box will auto- matically start up. If the GPRS-box first shall be used later on; remember to turn off the box by holding the on/off push-button down for 3-4 seconds.

  • Page 13: Control And Registration Installation

    If the yellow status diode is flashing at the end of program flow, the GPRS-box could not deliver its telegrams from the meters to the Oracle database at Brunata a/s. It could either be because the GPRS-box has no connexion to its receivers, or because it can not get access to the GPRS-network.

  • Page 14: Technical Support

    6. Technical support If you have any questions in regards with the points above you are more than welcome to contact TA Service at: Tel. +45 7777 7000 +45 7777 7001 E-mail service@brunata.dk...
