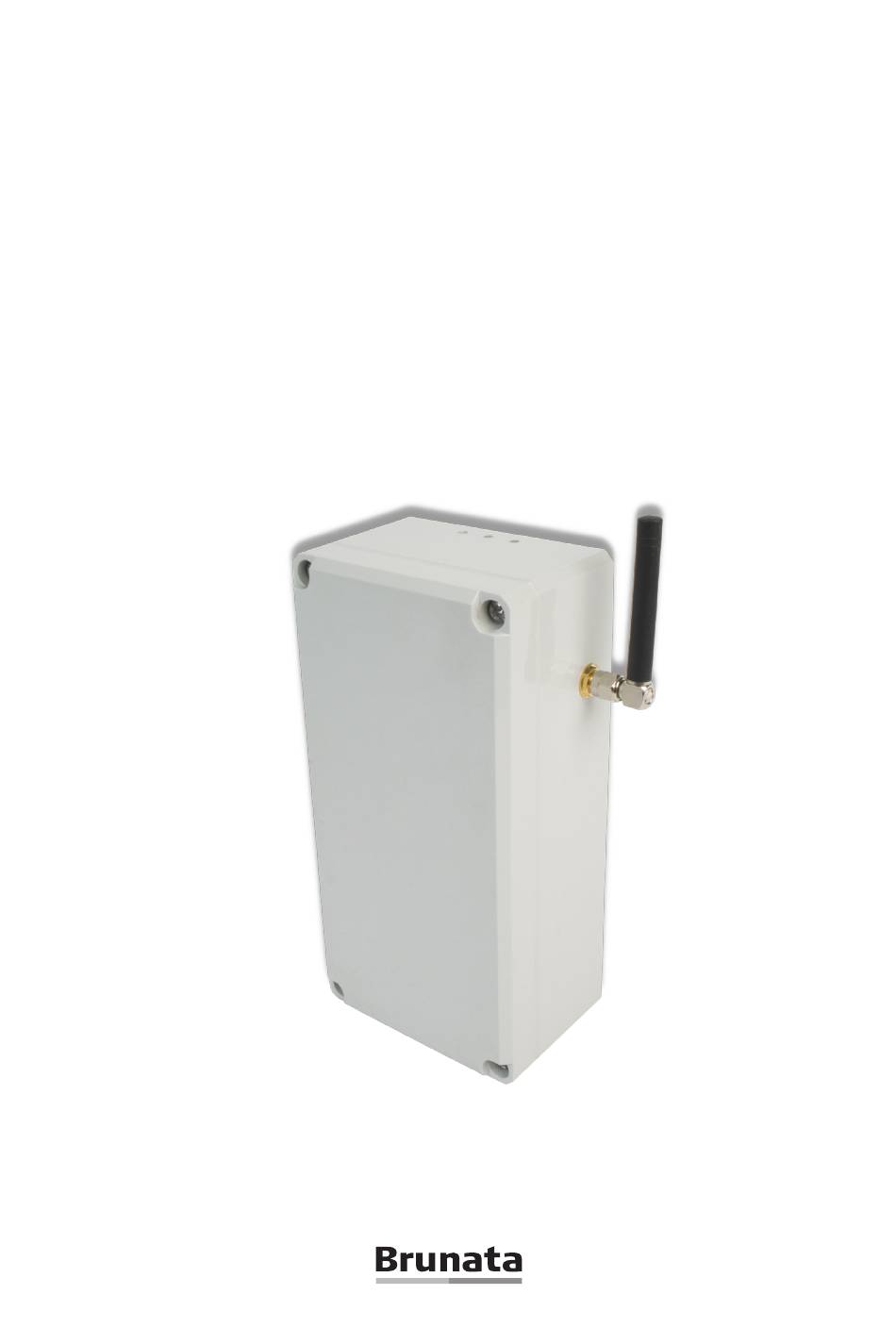

BrunataNet BoxGPRS
for Brunata RS485 network
User and installation manual

Advertisement

Table of Contents
loading

Related Manuals for Brunata BrunataNet BoxGPRS

Summary of Contents for Brunata BrunataNet BoxGPRS

  • Page 1 BrunataNet BoxGPRS for Brunata RS485 network User and installation manual...

  • Page 2: Table Of Contents

    4.1 What does the control consist of? ..............11 4.2 Has the GPRS-box found all the receivers? ............ 11 4.3 Can the GPRS-box send data to the Brunata database? ........ 11 4.4 Registration of components in the network..........11...

  • Page 3: Introduction

    • GPRS-box with a RM485FM-radio receiver. • Power-supply • RM485FM-radio receiver. • Brunata RS485-net cable. • Connection box 1.3 Tools It is recommended to use a KRONE LSA Terminal Tool (Brunata number 06-1040-C) to install the cables into the LSA-connectors.

  • Page 4: Text Message Commands

    1.4 Text message commands There are several commands to the GPRS-box, which can be sent to the GPRS-box by text message. The text message must consist of the following 3 parameters divided by a space: <Password> <Text message command> <value> If you leave out <value>...
  • Page 5 Diodes Push-button ON/OFF Status-diodes Button Description If the GPRS-box is in sleep-mode the green Short push diode start to flash Turned off Long push Turns on the GPRS-box Turned on Long push Turns off the GPRS-box Green status-diode Description Flashing Searching for GSM-net 1 short flash followed by a long pause Has found GSM-net...

  • Page 6: An Example Of A Program Flow In The Gprs-Box

    1.6 An example of a program flow In the GPRS-box The GPRS-box has just been turned on. Retrieving data from the radio transmitters. Waiting until data again Sending data to must be retrieved from WebMon. the RS485 net. ERROR The GPRS-box could not send data to the Oracle server.

  • Page 7: Sim-Card

    GSM/GPRS/SMS. PIN kode skal være slået fra. Brunata a/s can not be held liable for theft and misuse of the SIM-card. Husk: ved brug af dansk SIM-kort i udlandet, skal det pågældende lands telefonoperatør understøtte GPRS roaming.
  • Page 8 Command SMS-answer dokfaw gprs_apn office.vodafone.nl gprs_username Vodafone gprs_password Vodafone Getting the GPRS-box to send data to the Brunata server by following SMS-com- mand: SMS-commando SMS-answer dokfaw uploadnow When the GPRS-box has send data to the server please control, that the GPRS compo-...

  • Page 9: Brunata Rs485-Net Installations

    The GPRS-box should never be placed next to a refrigerator or other cupboards with Brunata a/s – Vesterlundvej 14 – DK - 2730 Herlev – Tel. +45 77 77 70 00 – Fax +45 77 77 70 01 – brunata@brunata.dk big iron surfaces, which can block the radio telegrams from the allocator.

  • Page 10: Placement Of The Rm485Fm Radio Receivers

    3.4 Fitting of cables The Brunata RS485-net cable consist of 4 conductors with the colours: Red, black, green and yellow. In all the components to the net, a label showing how to connect the different conduc- tors is attached next to the LSA-connector.

  • Page 11: Control And Registration Installation

    If the yellow diode is flashing at the end of the program, the GPRS-box has not been able to send data to the Oracle-server at Brunata a/s. This can either be caused by the fact that the GPRS-box has no connection to the receivers, or because the GPRS-box can not connect to the GPRS Network.

  • Page 12: Technical Support

    TA Service at: Tel. +45 77 77 70 00 +45 77 77 70 01 E-mail service@brunata.dk Brunata a/s · Vesterlundvej 14 · DK-2730 Herlev · tel. +45 77 77 70 00 fax +45 77 77 70 01 · www.brunata.com · brunata@brunata.com...
