22.5 Learning an IR Code

Refer to (Fig 20.6 to 20.11).
1. Enter the IR Set-up Menu.
2. Select an Appliance, e.g. TV – Samsung.
3. The commands for the Appliance will appear on the screen.
4. Select the command to be learned, via a right deflection of
the joystick. In this example, TV > Channel Up (Fig 22.7).
5. Select Learn Code, via a right deflection of the joystick while
the command is highlighted (Fig 22.8).
6. Point the TV remote control at the CJSM2 Receiver LED and
press the Channel Up button twice.
7. A check denotes a successful learn operation (Fig 22.10).
8. A cross denotes an unsuccessful learn operation, please
retry (Fig 22.11).
9. After the code is learned, highlight Exit and deflect the joystick
to the left. This will return the system to the Appliance level of
the IR Set-up Menu.
NOTE:
The first time an IR Code has been learned, it is necessary to
cycle the power to the CJSM2, (turn OFF and ON). If other IR
Codes are already learned, then this is not necessary.

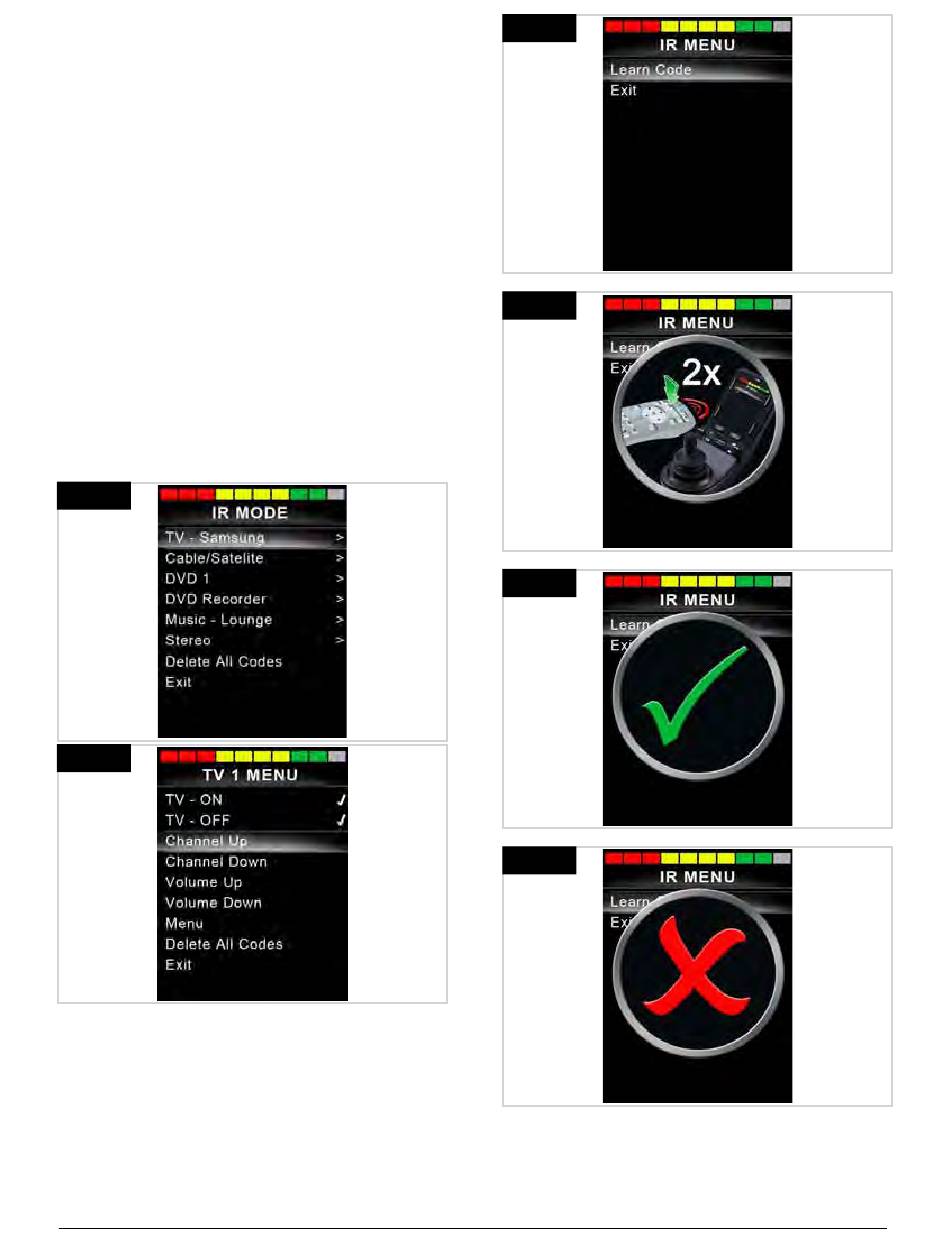

Fig.22.6
Fig.22.7
249044 Rev. A
Fig.22.8
Fig.22.9
Fig.22.10
Fig.22.11
