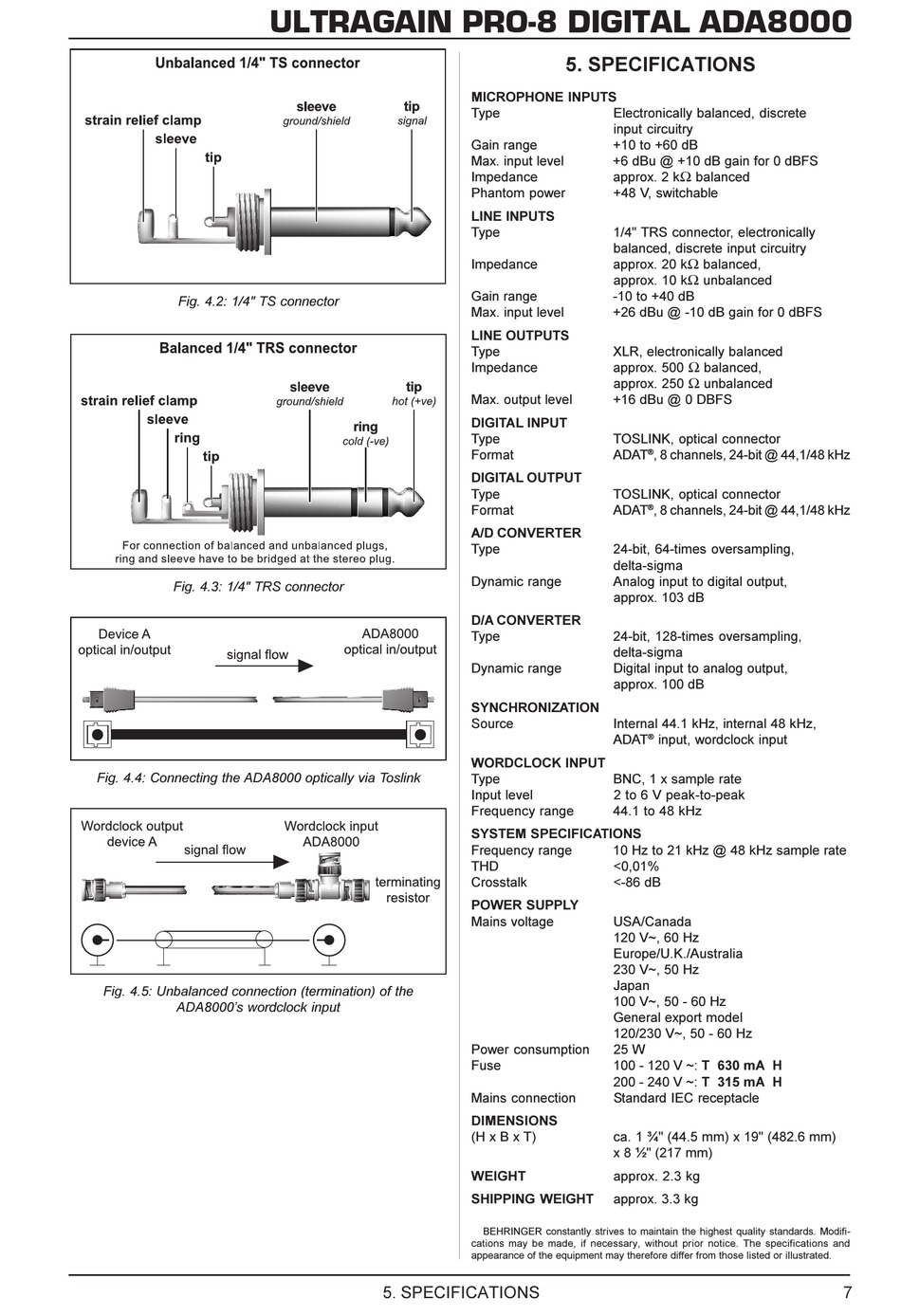

Fig. 4.2: 1/4" TS connector
Fig. 4.3: 1/4" TRS connector
Fig. 4.4: Connecting the ADA8000 optically via Toslink
Fig. 4.5: Unbalanced connection (termination) of the
ADA8000’s wordclock input
ULTRAGAIN PRO-8 DIGITAL ADA8000

5. SPECIFICATIONS

5. SPECIFICATIONS
MICROPHONE INPUTS
Type Electronically balanced, discrete
input circuitry
Gain range +10 to +60 dB
Max. input level +6 dBu @ +10 dB gain for 0 dBFS
Impedance approx. 2 k
Phantom power +48 V, switchable
LINE INPUTS
Type 1/4" TRS connector, electronically
balanced, discrete input circuitry
Impedance approx. 20 k
approx. 10 k
Gain range -10 to +40 dB
Max. input level +26 dBu @ -10 dB gain for 0 dBFS
LINE OUTPUTS
Type XLR, electronically balanced
Impedance approx. 500
approx. 250
Max. output level +16 dBu @ 0 DBFS
DIGITAL INPUT
Type TOSLINK, optical connector
Format ADAT
DIGITAL OUTPUT
Type TOSLINK, optical connector
Format ADAT
A/D CONVERTER
Type 24-bit, 64-times oversampling,
delta-sigma
Dynamic range Analog input to digital output,
approx. 103 dB
D/A CONVERTER
Type 24-bit, 128-times oversampling,
delta-sigma
Dynamic range Digital input to analog output,
approx. 100 dB
SYNCHRONIZATION
Source Internal 44.1 kHz, internal 48 kHz,
ADAT
WORDCLOCK INPUT
Type BNC, 1 x sample rate
Input level 2 to 6 V peak-to-peak
Frequency range 44.1 to 48 kHz
SYSTEM SPECIFICATIONS
Frequency range 10 Hz to 21 kHz @ 48 kHz sample rate
THD <0,01%
Crosstalk <-86 dB
POWER SUPPLY
Mains voltage USA/Canada
120 V~, 60 Hz
Europe/U.K./Australia
230 V~, 50 Hz
Japan
100 V~, 50 - 60 Hz
General export model
120/230 V~, 50 - 60 Hz
Power consumption 25 W
Fuse 100 - 120 V ~: T 630 mA H
200 - 240 V ~: T 315 mA H
Mains connection Standard IEC receptacle
DIMENSIONS
(H x B x T) ca. 1 ¾" (44.5 mm) x 19" (482.6 mm)
x 8 ½" (217 mm)
WEIGHT approx. 2.3 kg
SHIPPING WEIGHT approx. 3.3 kg
BEHRINGER constantly strives to maintain the highest quality standards. Modifi-
cations may be made, if necessary, without prior notice. The specifications and
appearance of the equipment may therefore differ from those listed or illustrated.
Ω
balanced
Ω
balanced,
Ω
unbalanced
Ω
balanced,
Ω
unbalanced
, 8 channels, 24-bit @ 44,1/48 kHz
®
, 8 channels, 24-bit @ 44,1/48 kHz
®
input, wordclock input
®
7
