ISL6446ADEMO1Z Dual Channel Step Down Regulator
User Guide

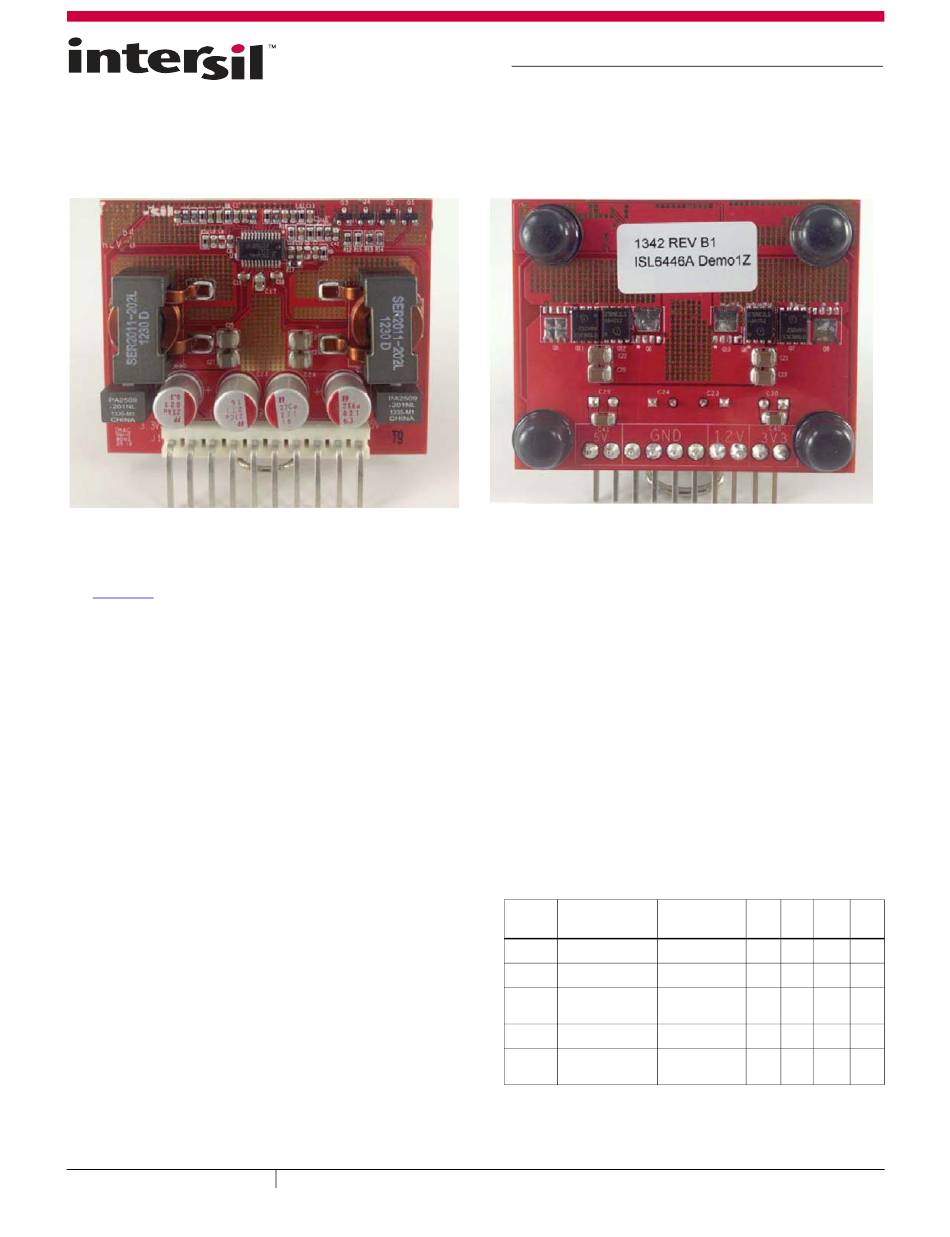

FIGURE 1. ISL6446ADEMO1Z REV B BOARD

Introduction

The
ISL6446A
is a high performance Dual PWM + Single
Linear Controller. This device integrates complete control,
monitoring and protection functions for two synchronous buck
PWM controllers and one low power linear controller. Each
PWM channel is switched 180° out-of-phase for reduced input
ripple current and lower EMI.
The PWM controller uses voltage mode control for simple
output regulation. The output can be regulated from 0.8*V
down to the 0.6V reference voltage. Switching frequency is
programmable from 100kHz to 2.5MHz, providing either a cost
optimized or compact power solution.
The ISL6446ADEMO1Z demo board is designed as an easy to
use, dual output, non-isolated power module featuring
synchronous buck function. It is well suited for any
applications that require high performance, small space and
low cost. The ISL6446ADEMO1Z output voltage is preset to
3.3V and 5V targeting ATX power supply applications. Each
channel is designed for up to 20A of output current. Total
power of the demo board is limited by thermal conditions.
May 7, 2015
AN1822.1
IN
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Application Note 1822
FIGURE 2. ISL6446ADEMO1Z REV B BOARD BACKSIDE

Evaluation Board Features

• 12V input voltage
• Preset +5V and +3.3V output
• 20A output current each channel
• Two-in-1 PWM controller with out-of-phase operation
• Voltage-mode PWM control
• Efficiency up to 94.9%
• Prebias start-up
• Undervoltage lockout
• Output overcurrent protection
• Over-temperature protection
• f
set at 280kHz
sw
• Simple dual layer board design

Evaluation Board Specifications

SYMBOL
PARAMETER
V
Input Range
IN
V
Output Range
OUT1
I
Output Current
OUT1
V
Output Range
OUT2
I
Output Current
OUT2
|
Copyright Intersil Americas LLC 2014, 2015. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
TEST
CONDITIONS
MIN TYP MAX UNIT
Over I
range
10.8
13.2
O
Over I
range
4.8
5
5.2
O
From no load to
0
20
full load
Over I
range
3.1
3.3
3.5
O
From no load to
0
20
full load
V
V
A
V
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL6446ADEMO1Z and is the answer not in the manual?

Questions and answers

Summary of Contents for Intersil ISL6446ADEMO1Z

  • Page 1: Introduction

    CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. 1-888-INTERSIL or 1-888-468-3774 Copyright Intersil Americas LLC 2014, 2015. All Rights Reserved AN1822.1 Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries. All other trademarks mentioned are the property of their respective owners.
  • Page 2: Table Of Contents

    ISL6446ADEMO1Z Bill of Materials........
  • Page 3: Terminal Functions

    OUT2 The board is now ready for operation. Undervoltage Lockout Circuit The ISL6446ADEMO1Z demo board includes as part of its circuitry a UVLO (Undervoltage Lockout) circuit that prevents it from starting up with V voltages less than about 7.8V. If you...
  • Page 4 Application Note 1822 Board Electrical Specifications = +25°C; V = 12V; V = 3.3V, V = 5V, and I = 15A, I = 15A OUT1 OUT2 OUT1 OUT2 (unless otherwise noted). SYMBOL PARAMETER TEST CONDITIONS UNIT Input Range Over I range 10.8 13.2...
  • Page 5: Isl6446Ademo1Z Schematic

    R10 1.3K 820UF 10UF ISL6446A R16 0 47UF 47UF 1000PF 1000PF 220PF 100K 2N7002 2N7002 CON10 9.1K 2N7002 Title Title Title <Title> <Title> <Title> Size Size Size Document Number Document Number Document Number <Doc> <Doc> <Doc> FIGURE 5. ISL6446ADEMO1Z SCHEMATIC...
  • Page 6: Pcb Layout

    Application Note 1822 PCB Layout FIGURE 6. SILK SCREEN TOP FIGURE 7. SILK SCREEN BOTTOM FIGURE 9. PCB BOTTOM FIGURE 8. PCB TOP Submit Document Feedback AN1822.1 May 7, 2015...
  • Page 7: Isl6446Ademo1Z Bill Of Materials

    Application Note 1822 ISL6446ADEMO1Z Bill of Materials UNIT REFERENCE MANUFACTURER PART DESIGNATOR DESCRIPTION MANUFACTURER ISL6446ADEMO1ZREVBPCB PWB-PCB, ISL6446ADEMO1Z, REVB, ROHS IMAGINEERING 06035C102KAT2A ea. C1, C3, C7, C9, CAP, SMD, 0603, 1000pF, 50V, 10%, X7R, ROHS C11, C12 GRM39X7R103K050 ea. C13, C14 CAP, SMD, 0603, 0.01µF, 50V, 10%, X7R, ROHS...
  • Page 8: Isl6446Ademo1Z Test Report

    Application Note 1822 ISL6446ADEMO1Z Test Report = 12V, NO LOAD START-UP = 12V, FULL LOAD START-UP 3.3V 3.3V FIGURE 10. START-UP FIGURE 11. START-UP = 12V, NO LOAD SHUTDOWN = 12V, FULL LOAD SHUTDOWN 3.3V 3.3V FIGURE 12. SHUTDOWN FIGURE 13. SHUTDOWN (UVLO VOLTAGE 7.4V) Submit Document Feedback AN1822.1...
  • Page 9: Efficiency Curves

    Application Note 1822 Efficiency Curves Input = 12VDC, Output = 5V/20A, 3.3V/20A. FULL LOAD 5V/20A, 3.3V/20A FULL LOAD 5V/20A, 3.3V/20A LOAD POWER (W) LOAD POWER (W) FIGURE 15. POWER LOSS vs OUTPUT POWER FIGURE 14. EFFICIENCY vs OUTPUT POWER 5.04 3.36 5.03 3.35...
  • Page 10 Application Note 1822 Steady State Operation 1st stage LC (2µH + 2*47µF) + 2nd stage LC Output Filters (200nH + 820µF). (Continued) FULL LOAD, LOW-SIDE MOS TURNS OFF NO LOAD, LOW-SIDE MOS TURNS OFF HIGH-SIDE MOS TURNS ON HIGH-SIDE MOS TURNS ON THERE IS ENOUGH DEAD TIME THERE IS ENOUGH DEAD TIME PHASE...
  • Page 11: Protection

    FIGURE 31. OVERCURRENT PROTECTION FIGURE 30. OVERCURRENT PROTECTION Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that the document is current before proceeding.
