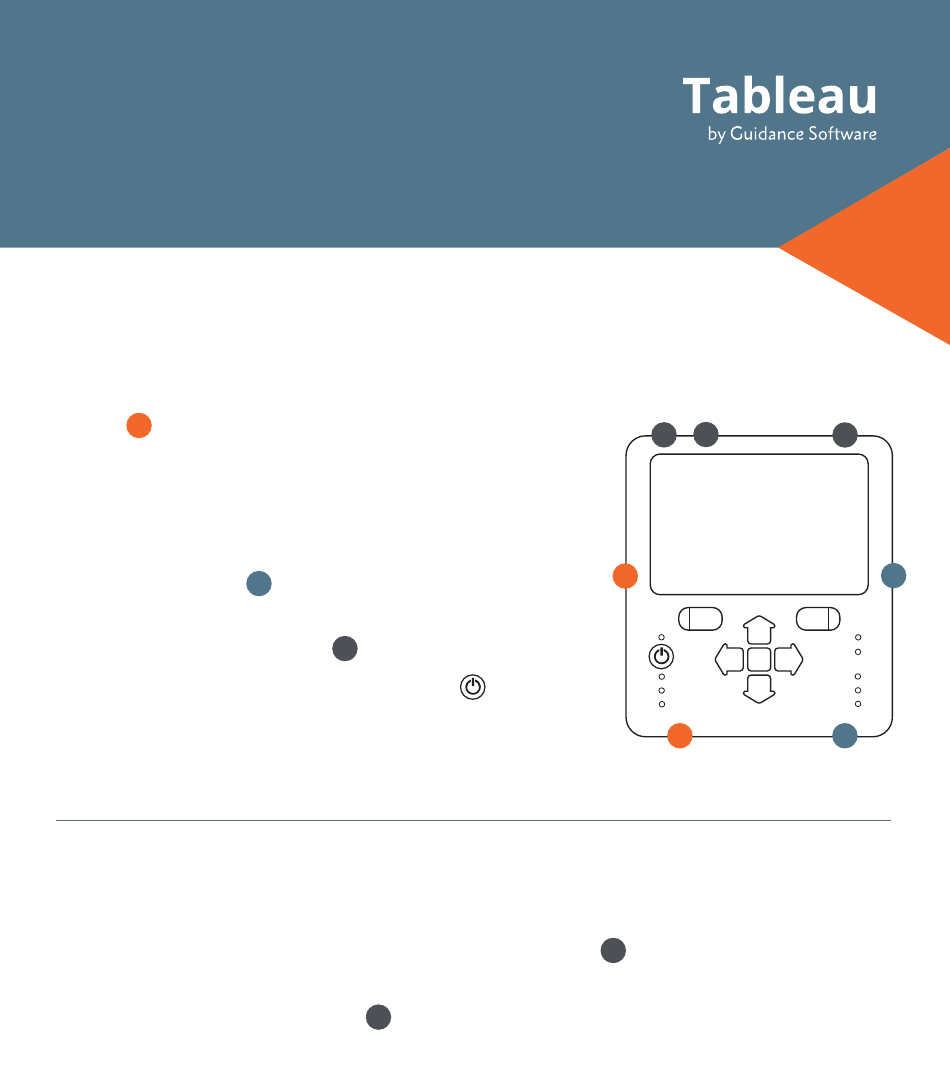

Tableau TD2u Quick Reference Manual

QUICK
REFERENCE GUIDE

GETTING STARTED

Confirm that the Duplicator is off before beginning.
1. Source Drive – Connect one drive to the
Duplicator's source side: SATA, IDE, USB 3.0, or
SAS
*
1
Tableau Duplicator SAS Expansion Module [TDP6]
*
(sold separately) is needed for SAS drives.
2. Destination Drive(s) – Connect up to two SATA
drives and one USB 3.0 drive to the Duplicator's
destination side
3. Duplicator Power – Connect the power supply
to the Duplicator's DC In
4. Power On – Press the power button
operation
Before disconnecting a source or destination drive,
we recommend powering down the Duplicator.
Setup Wizard: During the initial start-up or following a factory reset, the Setup
Wizard will prompt you to configure the default system settings of the Duplicator.
USB 2.0 Device Port (Optional) – Connect a USB storage device to save logs or a
USB keyboard for easier data entry via the USB 2.0 port
USB 2.0 Update Port – To update the firmware, connect the Duplicator to your
computer via the mini USB port
2
3
and use the Tableau Firmware Update utility.
5
TABLEAU FORENSIC DUPLICATOR
4
1
Power
and begin
SATA Source
IDE Source
USB Source
4
TD2u
5
3
Alert
Busy
Press - On
Hold - Off
SATA Dest 1
SATA Dest 2
USB Dest
1 2
2
